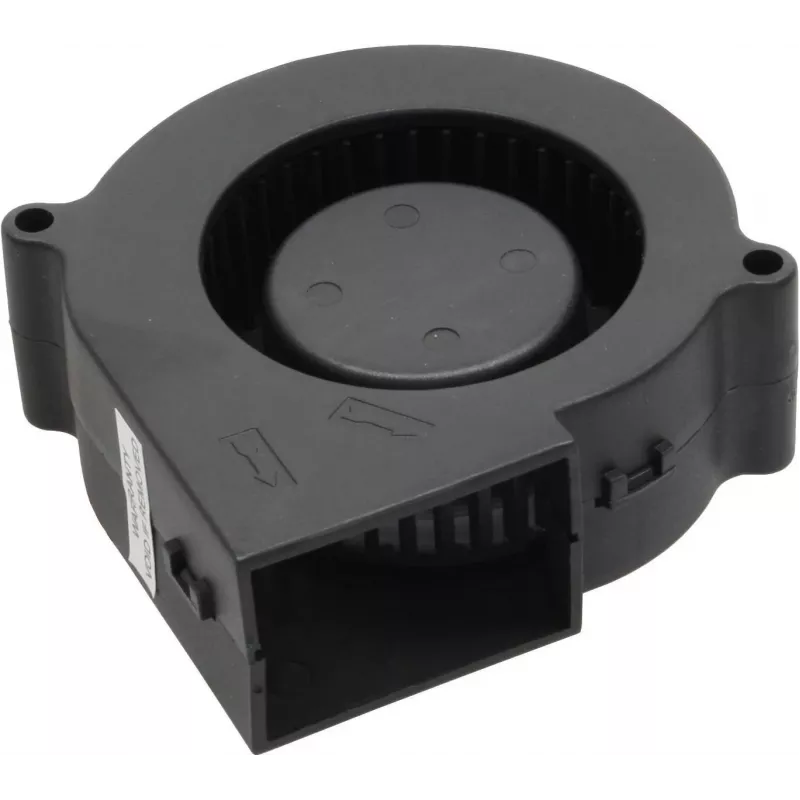

Titan TFD-B7530M12B 2x29,5mm, radial, 2 rolamentos de esferas, preto (TFD-B7530M12B)

The Titan TFD-B7530M12B is a high-performance 12V DC axial fan engineered for demanding cooling applications, particularly in 1U and 2U server systems. With its compact 76.2 x 72 x 29.5 mm frame and dual ball bearing design, this fan delivers a reliable balance of airflow and static pressure for efficient thermal management in space-constrained environments.

Key features

• Dimensions: 76.2 x 72 x 29.5 mm (radial form factor)
• Voltage: 12V DC with 0.17 A current draw and 2.04 W power consumption
• Speed: 2600 ± 10% RPM, delivering max airflow of 10.76 CFM (approx. 18.3 m³/h)
• Max static pressure: 8.23 mmH₂O for effective resistance against system impedance
• Bearing type: dual ball bearing (2-Kugellager) for extended service life
• Service life: approximately 50,000 hours at 25°C operating temperature
• Connection: 3-pin motherboard header with speed signal (tachometer) output
