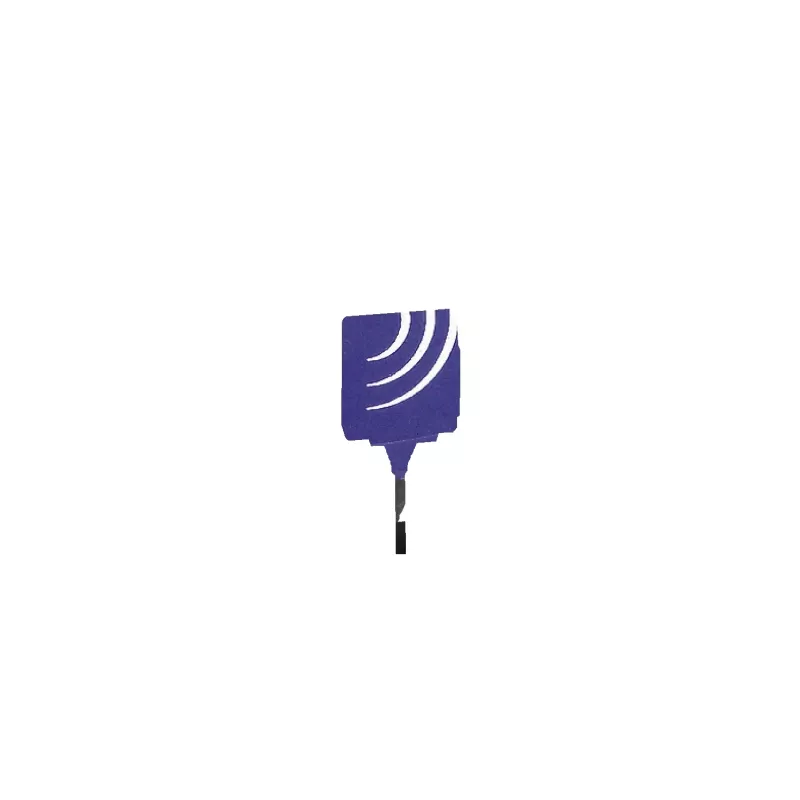

TMSS GERMANY Sensor de proximidade indutivo PNP NO 3 fios M12 XS7C1A1PAL01M12

Detecting metal objects in industrial automation often requires a sensor that is reliable, compact, and easy to integrate. The TMSS GERMANY Inductive Proximity Sensor XS7C1A1PAL01M12 solves this by providing non-contact detection of metallic targets with a PNP normally-open output, ensuring fast and dependable switching in demanding environments.

Who is it for

This sensor is ideal for machine builders, maintenance technicians, and automation engineers who need a robust M12 cylindrical sensor for position sensing, presence detection, or counting tasks on conveyors, assembly lines, and packaging machinery.

Main features

• Inductive sensing principle for metal targets only
• PNP output, normally open (NO) function
• 3-wire DC connection with pre-wired 1 m cable
• Nominal sensing distance: 4 mm, flush mountable
• Compact M12 cylindrical plastic (PBT) housing
• Wide supply voltage range: 12-24 V DC
• High switching frequency: 2000 Hz
• Protection against short-circuit, reverse polarity, and overload

Specifications

• Sensor type: Inductive Proximity Sensor
• Series: OsiSense XS
• Sensor design: Cylindrical M12
• Nominal sensing distance: 4 mm
• Output type: PNP
• Output function: 1 NO (Normally Open)
• Wiring technique: 3-wire DC
• Rated supply voltage: 12-24 V DC
• Switching capacity: ≤ 200 mA
• Protection rating: IP67
• Flush mounting: Flush mountable
• Material: Plastic (PBT)
• Connection type: Pre-wired cable
• Cable length: 1 m
• Switching frequency: 2000 Hz
• Short-circuit protection: Yes
• Reverse polarity protection: Yes
• Overload protection: Yes
• Operating temperature: -25 to 70 °C

Tips

Ensure the target is metallic and within the 4 mm sensing distance for reliable detection. When mounting, consider the flush mountable design for embedding in metal without reducing sensing range. For best performance, connect the sensor to a 12-24 V DC supply and observe proper polarity.
