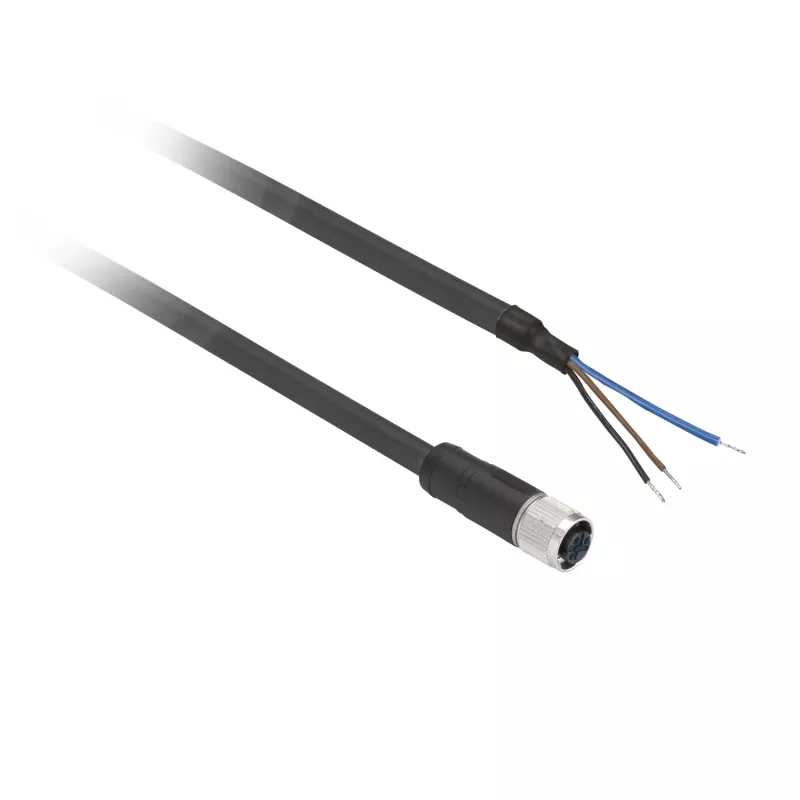

TMSS GERMANY Telemechanique Sensors conector fêmea M12 reto 5 pinos 5m PVC cabo de sensor XZCP0566L5

In industrial automation settings, sensor connections demand reliability. The TMSS GERMANY XZCP0566L5 is a 5-meter M12 female straight connector with a 5-pin configuration, built for secure sensor wiring in machinery and control panels.

Key specifications

• Connector type: M12
• Number of pins: 5
• Connector gender: Female
• Connector orientation: Straight
• Cable length: 5 m
• Cable material: PVC
• Rated voltage: 250 V AC/DC
• Rated current: 4 A
• IP rating: IP67
• Operating temperature: -25 to 80 °C
• Conductor material: Copper
• Wire gauge: 0.34 mm² (AWG 22)
• Shielding: Unshielded
• Cable outer diameter: 5.2 mm
• Product series: XZ
• Wiring configuration: 5-wire
• Insulation resistance: > 1 GΩ
• Contact material: Gold-plated Brass

Why choose it

This cable ensures stable signal transmission in demanding environments, with gold-plated contacts for corrosion resistance and a PVC jacket for durability.

Ideal use cases

• Connecting sensors in industrial automation
• Extending M12 sensor connections
• Use in machinery and control cabinets

Good to know

The straight female connector allows easy mating with male panel-mounted sockets. The 5-meter length provides flexibility in installation.
