TMSS GERMANY Telemechanique Sensors Interruptor de fim de curso XCKJ10541H29, IP66/IP67/IP68, 1NC+1NO, alavanca rotativa

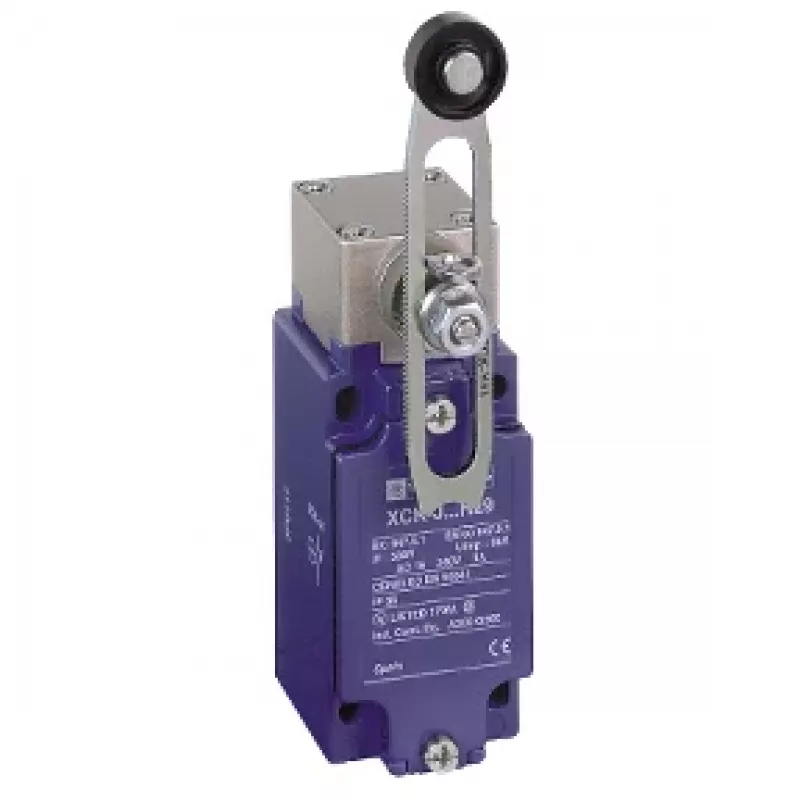

The XCKJ10541H29 from TMSS GERMANY is a robust limit switch from the OsiSense XCKJ series, engineered for demanding industrial position sensing. Its rotary lever actuator with a Ø6 mm thermoplastic roller provides reliable mechanical actuation, while the snap action contact mechanism ensures crisp switching. The housing combines a Zamak body with a plastic head for durability in harsh environments.

Highlights

• Contact configuration: 1 NC + 1 NO (snap action)
• Actuator: rotary lever with Ø6 mm thermoplastic roller
• Enclosure: Zamak body, plastic head
• Protection ratings: IP66, IP67, IP68
• Electrical connection: screw clamp terminals

In daily use

This limit switch is suitable for machine tools, conveyor systems, and other industrial applications where precise end-of-travel detection is required. The M20 x 1.5 cable entry allows for secure wiring, and the wide operating temperature range from -25 to 70 °C ensures reliable performance in varying conditions.

Full specifications

• Product type: Limit switch
• Series: OsiSense XCKJ
• Contact operation: Snap action
• Cable entry: 1 x M20 x 1.5
• Rated insulation voltage: 500 V
• Rated operational current: 3 A (AC-15, 240 V); 0.27 A (DC-13, 250 V)
• Mechanical durability: 30 million cycles
• Electrical durability: 5 million cycles
• Minimum operating torque: 0.1 N.m
• Number of poles: 2

Final note

The XCKJ10541H29 is a reliable choice for industrial position sensing, offering high protection ratings and long mechanical life.
