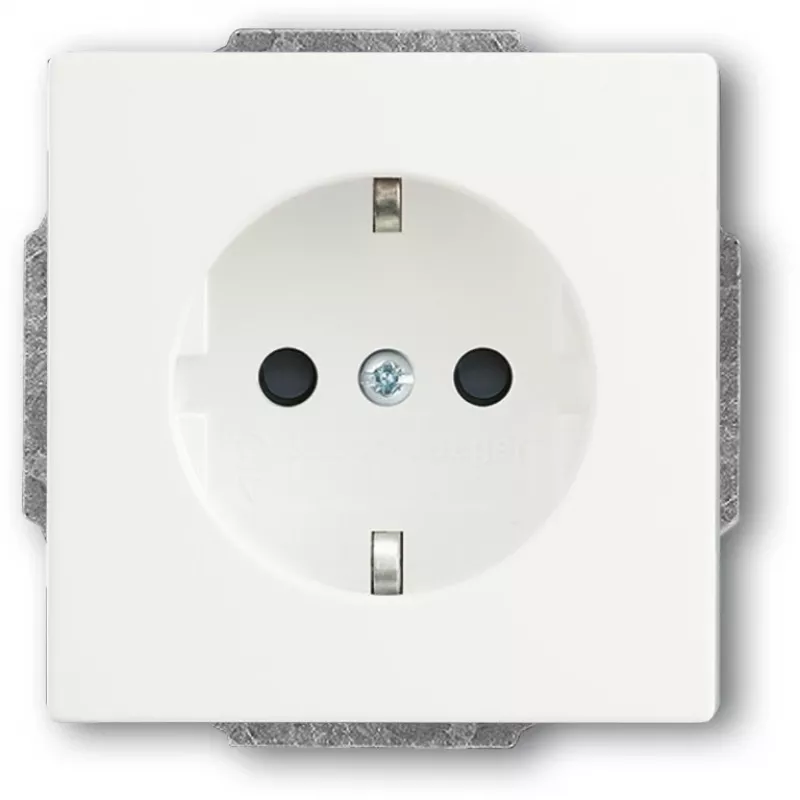

Tomada Busch-Jaeger 20 EUCKS-884 CEE 7/3 2P+E 250 V 16 A branco

Busch-Jaeger 20 EUCKS-884 is a flush-mounted wall socket with a CEE 7/3 (Schuko) connector in a 2P+E configuration. The outlet is rated for 250 V~ and 16 A and is supplied in white. It features screwless terminals and increased shock protection, with a visible width of 71 mm, overall depth 41 mm and visual part depth 6 mm, suitable for standard domestic and light commercial electrical installations requiring a grounded CEE 7/3 outlet.

Advantages

The socket uses screwless terminals for faster and simpler wiring and provides increased shock protection for safer operation. Its standard 2P+E Schuko configuration and rated values (250 V~, 16 A) match common household and light commercial requirements. The compact visible dimensions make it compatible with typical mounting frames and wall boxes.

Suitable for

Key specifications

How to use

Install the outlet into a compatible standard wall box following local electrical regulations. Connect supply conductors to the screwless terminals according to the indicated L, N and PE markings, verifying secure connection. After wiring, fix the device in the mounting frame and attach the cover plate. Ensure the circuit is de-energised before installation and restore power only after verifying correct wiring.

Recommendations

Use this Busch-Jaeger 20 EUCKS-884 socket in installations that require a grounded CEE 7/3 outlet rated 250 V and 16 A. For safety, installation and maintenance should be performed by a qualified electrician and carried out in accordance with applicable electrical codes.
