Tomada Busch-Jaeger 2011-0-1318 CEE 7/3 2P+E 250V 16A branco (71×41 mm)

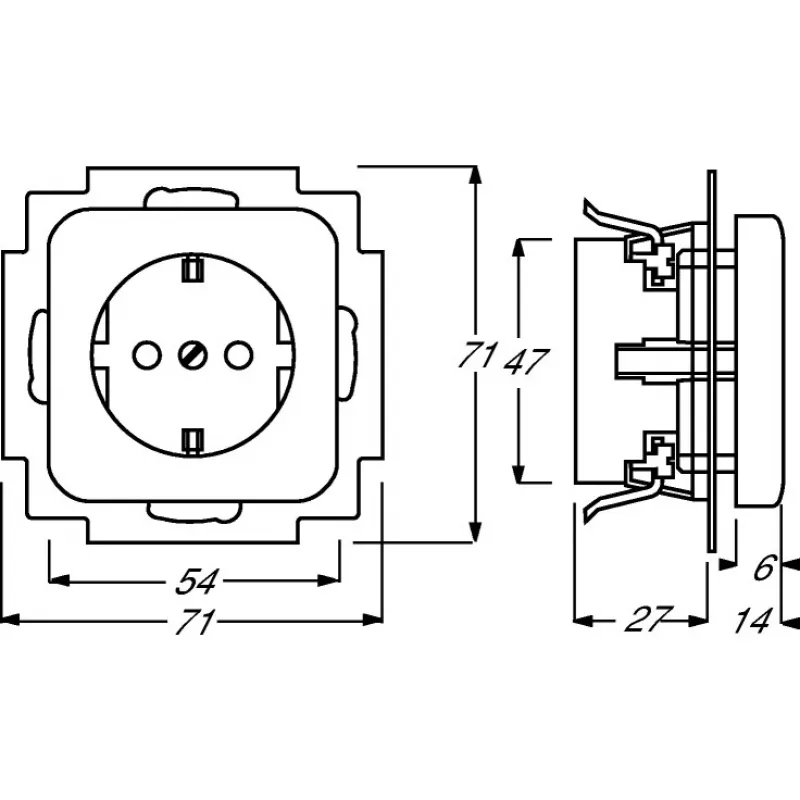

Busch-Jaeger 2011-0-1318 is a CEE 7/3 type socket outlet with two poles plus earth (2P+E), rated for 250 V and 16 A. Finished in white with a visible plate depth of 6 mm, the unit has an overall width of 71 mm and depth of 41 mm. It is intended for standard household and light commercial electrical installations where a grounded connection for compatible plugs is required.

Advantages

The socket outlet provides a grounded contact design that ensures reliable earthing for devices with earth pin plugs. Its 16 A current rating is suitable for a wide range of domestic appliances. The compact dimensions and shallow visible plate depth allow for discreet wall mounting and compatibility with standard flush mounting boxes. The white finish integrates with typical interior color schemes.

Suitable for

Key specifications

How to use

Install the socket outlet into a compatible flush mounting box following local electrical regulations and safety standards. Ensure power is disconnected before wiring. Connect the live and neutral conductors to the corresponding terminals and the earth conductor to the earth terminal to maintain protective grounding. After securing the unit in the mounting box and fastening the visible plate, restore power and verify correct operation with a suitable appliance or voltage tester.

Recommendations

Use the outlet only within its rated limits (250 V, 16 A). For installations in damp or outdoor locations, select a product variant designed for moisture protection. If unsure about wiring or local requirements, engage a qualified electrician to perform installation and testing.
