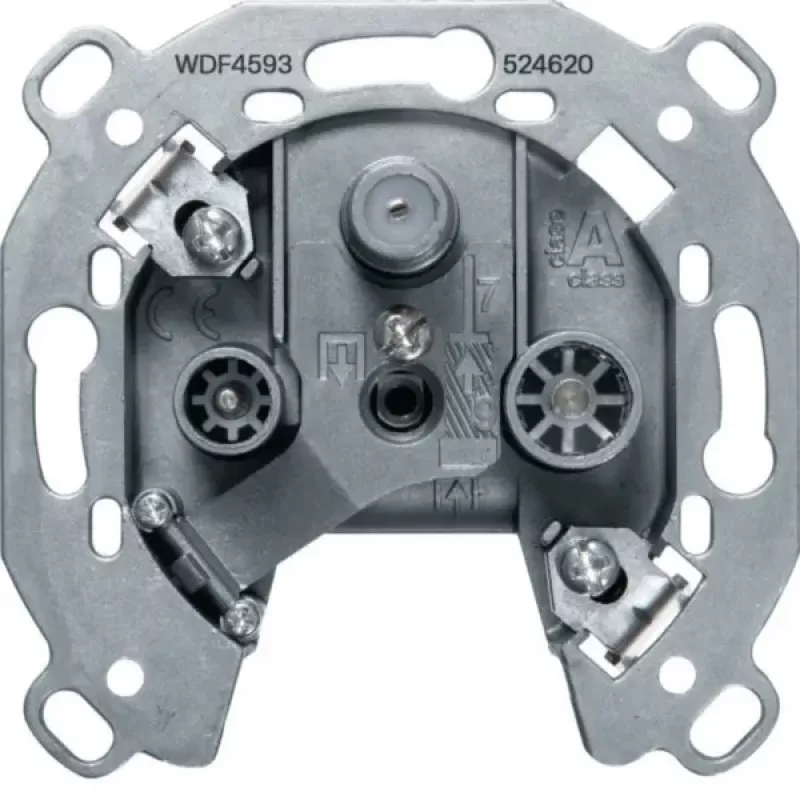

Tomada de antena Hager WDF4593 3 módulos SAT TV FM tomada individual módulo encastrar

The Hager WDF4593 stands out as a dedicated 3-outlet antenna socket that consolidates TV, FM and SAT connections into a single flush-mounted module insert. Unlike generic multi-outlet plates, it is engineered for star and single-cable distribution systems, with a DC passage for LNB power that simplifies satellite setups.

Highlights

• Three dedicated outputs: TV, FM and SAT
• Flush-mounted single socket module insert
• DC passage for LNB power on SAT output
• 75 Ohm impedance across all outputs
• Shielding factor > 75 dB (Class A)
• Terminal attenuation of 1.5 dB on each output

In daily use

This socket provides clear separation of terrestrial TV, FM radio and satellite signals. The IEC male TV connector, IEC female FM connector and F-connector for SAT ensure compatibility with standard coaxial cables. Its return loss of over 10 dB and high shielding factor minimise interference, making it suitable for demanding residential or commercial installations.

Full specifications

• Product type: Antenna socket
• Outputs: 3 (TV, FM, SAT)
• Mounting type: Flush-mounted (UP)
• Socket type: Single socket (Einzeldose)
• Frequency range TV: 5 - 862 MHz
• Frequency range FM: 87.5 - 108 MHz
• Frequency range SAT: 950 - 2400 MHz
• Terminal attenuation TV: 1.5 dB
• Terminal attenuation FM: 1.5 dB
• Terminal attenuation SAT: 1.5 dB
• Return loss TV/FM/SAT: > 10 dB
• Shielding factor: > 75 dB (Class A)
• DC passage for SAT: Yes (for LNB power)
• Impedance: 75 Ohm
• Connection type TV: IEC Male
• Connection type FM: IEC Female
• Connection type SAT: F-Connector
• System compatibility: Star distribution systems, Single cable systems
• Design: Module insert

Final note

The Hager WDF4593 is a reliable choice for structured cabling where separate TV, FM and SAT outlets are required in one compact unit.
