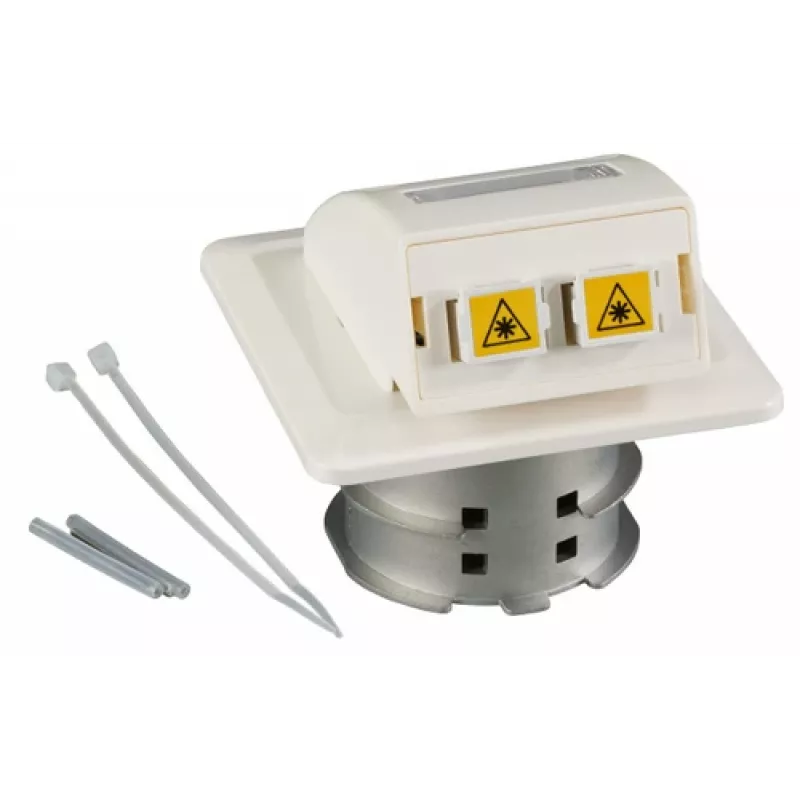

Tomada de parede de fibra ótica FTTH-OUTLET-LC-OM3 EFB Elektronik, 2x LC-Duplex OM3 multimodo, branco puro

Fiber optic wall outlet delivering reliable optical connectivity with two LC-Duplex OM3 multimode ports in a discreet flush-mount design. Engineered for low insertion loss and high return loss, this outlet ensures stable high-speed data transmission in residential and commercial fiber-to-the-home networks.

Advantages

Integrated dust shutters protect the connectors from contamination, while the pure white ABS housing blends seamlessly into any interior. The compact form factor allows for neat installation in standard flush-mounted boxes, and the rear cable entry simplifies fiber routing.

Suitable for

• FTTH (Fiber to the Home) installations
• Multimode OM3 fiber optic networks
• Indoor use in residential or office environments
• Applications requiring two LC-Duplex connections

Key specifications

• Connector type: 2x LC-Duplex
• Fiber mode: Multimode OM3
• Insertion loss: < 0.2 dB (typical)
• Return loss: > 30 dB (typical)
• Housing material: ABS plastic, pure white (RAL 9010)
• Protection class: IP20
• Operating temperature: -20°C to +70°C
• Compliance: RoHS, REACH

Recommendations

For a clean and future-proof FTTH termination, pair this outlet with OM3-compatible patch cables and ensure proper bend radius management during installation to maintain optimal performance.
