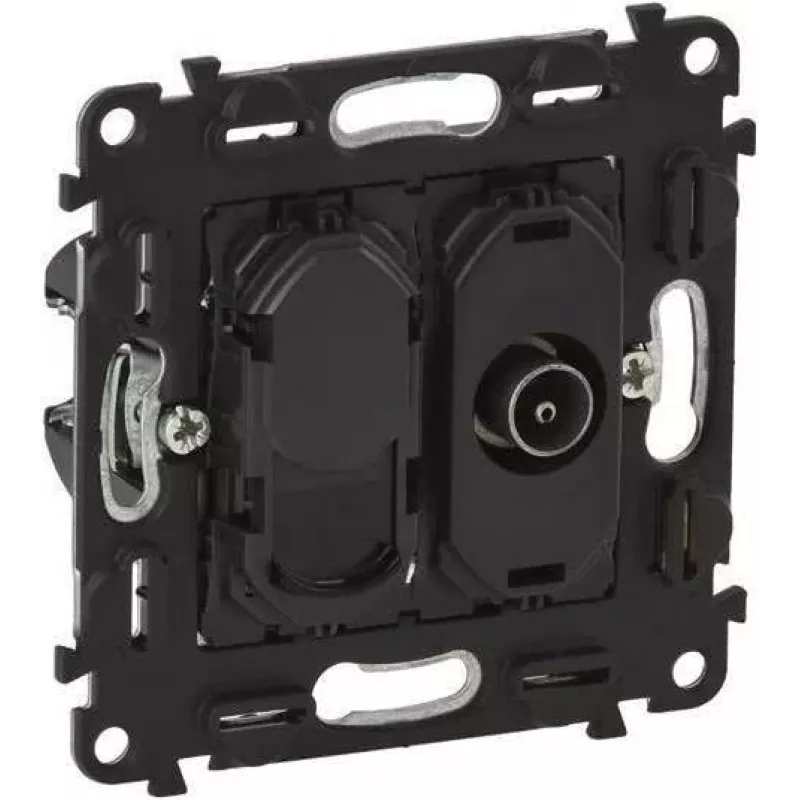

Tomada de parede TV Legrand 753055 RJ45 Cat6 UTP — tomada de rede de uma porta, não blindada Cat6

Legrand 753055 TV RJ45 Cat6 UTP is a single-port wall outlet designed for unshielded Cat6 Ethernet connections. The unit provides a standard RJ45 socket mounted in a compact single-gang module intended for residential and office network terminations. It accepts patch cables for structured cabling and offers a tidy, wall-mounted termination point for data and TV/network distribution while supporting Gigabit-class connectivity when used with appropriate Cat6 cabling and equipment.

Advantages

The single-port design conserves wall space and simplifies installation in standard wall boxes. As an unshielded Cat6 outlet, it is compatible with widely used Cat5e and Cat6 patch cords and network devices, while enabling higher bandwidth and reduced crosstalk compared with lower category outlets when installed with Category 6 cabling. The RJ45 connector offers a universal interface for Ethernet devices and the compact module integrates with common faceplates and frames for a discreet finish.

Suitable for

Key specifications

How to use

Install the outlet in a standard single-gang electrical box following local electrical and cabling regulations. Route a Cat6 UTP cable to the outlet location and terminate the conductors to the outlet's IDC or punch-down contacts according to the wiring scheme (T568A or T568B) used in the installation. Secure the module to the wall box with the supplied screws and attach a compatible faceplate. Connect a Cat6 patch cable from the RJ45 port to a network device, switch or set-top box to provide network or TV distribution.

Recommendations

For optimal performance, use Category 6 UTP cable and quality Cat6 patch cords, maintain proper cable bending radius and separation from electrical noise sources, and ensure consistent wiring scheme across the structured cabling system. Test the installed outlet with a network tester to verify continuity and performance before regular use.
