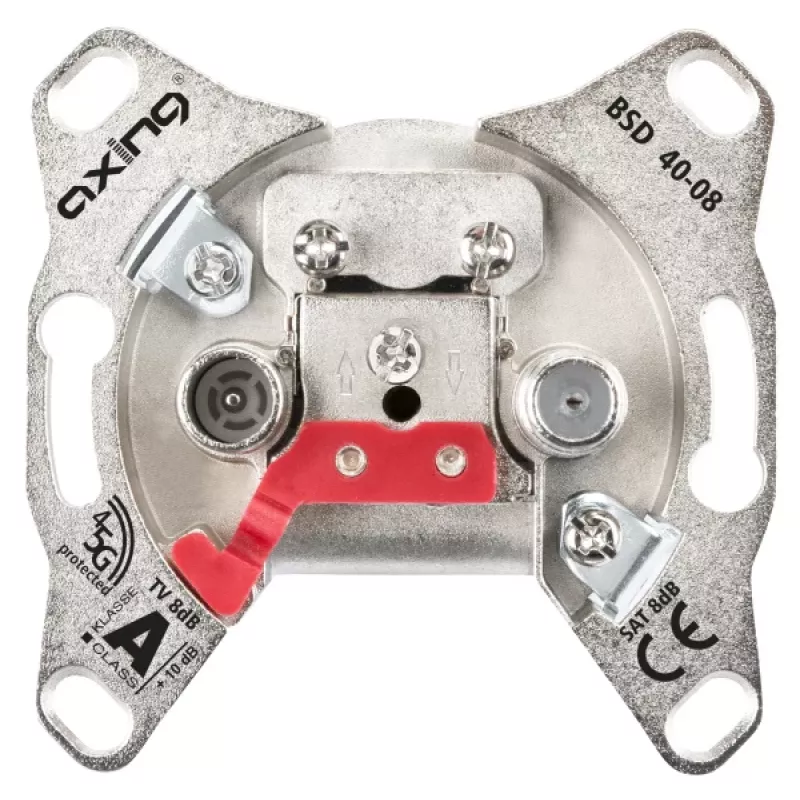

Tomada de passagem AXING BK/SAT BSD 40-08 5-2200MHz 8dB

The AXING BSD 40-08 is a high-quality BK/SAT through-outlet socket designed for modern multimedia installations. It supports Cable TV (BK), Satellite (SAT), DVB-T/T2, and Radio (FM) signals, making it a versatile solution for residential and commercial applications. With a frequency range of 5-2200 MHz and a tap loss of 8 dB for all paths, this socket ensures reliable signal distribution with minimal attenuation.

Advantages

This through-outlet socket offers excellent signal integrity with a through attenuation of only 1.5 dB for TV/Radio and SAT paths. It features a DC pass for SAT (max 500mA, 24V) to power an LNB or preamplifier directly. The shielding class A (EN 50083-2) provides robust protection against interference. Its flush-mount design allows for a clean, professional installation.

Suitable for

• Residential and commercial TV/SAT distribution systems
• Multimedia outlets requiring simultaneous TV, radio, and satellite connectivity
• Installations where a through connection to additional outlets is needed

Key specifications

• Product Type: Multimedia Through-outlet Socket
• Frequency Range (TV/Radio): 5 - 862 MHz
• Frequency Range (SAT): 950 - 2200 MHz
• Tap Loss (TV/Radio/SAT): 8 dB
• Through Attenuation (TV/Radio/SAT): 1.5 dB
• Number of Outputs: 3
• Output Connector (TV): IEC Male
• Output Connector (Radio): IEC Female
• Output Connector (SAT): F-Connector Female
• Return Path Frequency: 5 - 65 MHz
• DC Pass for SAT: Yes (max 500mA, 24V)
• Shielding Class: A (EN 50083-2)
• Impedance: 75 Ohm
• Installation Type: Flush-mount

Recommendations

For optimal performance, use high-quality coaxial cables and ensure proper termination. This socket is ideal for new installations or upgrades where a through connection is required.
