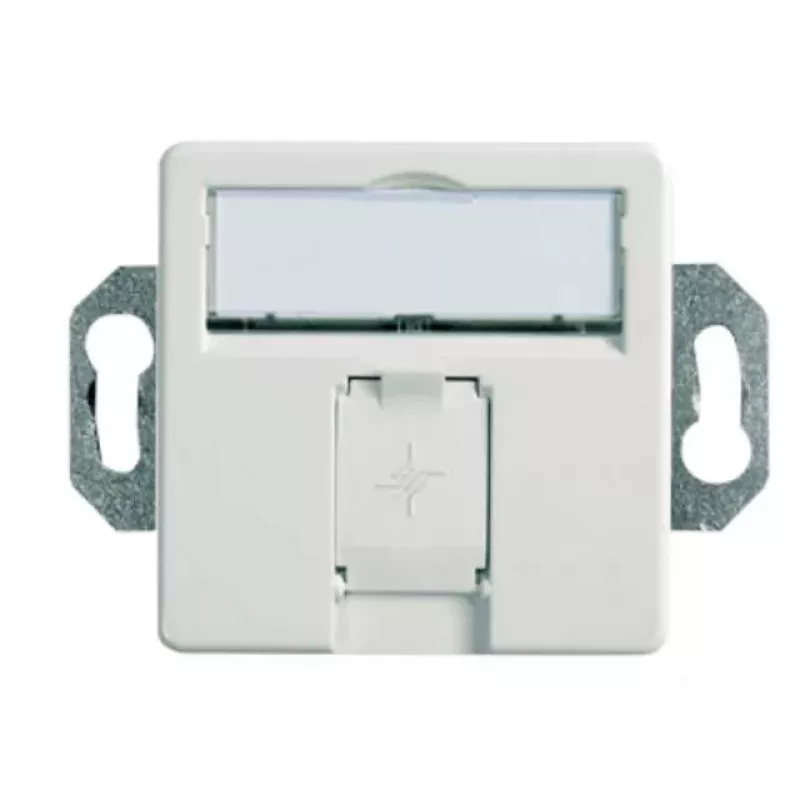

Tomada de rede Telegärtner RJ-45 Cat6a J00020A0507, branca, ABS/aço/zinco, 70×50×43,2 mm

Telegärtner socket-outlet RJ-45 Cat6a J00020A0507 is a fully shielded wall outlet designed for Category 6A structured cabling. The module combines an ABS housing with steel and zinc components to provide mechanical stability and electromagnetic shielding. With compact dimensions of 70 × 50 × 43.2 mm and a 360° shielding contact, it supports Cat.6A transmission performance according to ISO/IEC 11801 and EN 50173-1 and is supplied as a single white unit suitable for LAN connections and professional patching environments.

Advantages

The outlet offers full shielding and a continuous 360° shielding contact that improves immunity to electromagnetic interference. It features two captive screw clamps for strain relief and shielding of the cable jacket, low installation depth for use in floor boxes and shallow wall cavities, and the option of plug-in grounding at all four corners. Wiring can be performed from all directions in 8×45° steps and the faceplate accepts a retrofittable transparent label field. Overbend protection allows both 6- and 8-pin plugs to be used without additional kits, while detachable fixing rails simplify subfloor installation.

Suitable for

• Structured LAN installations in offices and data closets
• Shielded Cat6A backbone and horizontal cabling
• Floor box and shallow-wall installations where low installation depth is required
• Environments requiring enhanced EMI protection and grounding

Key specifications

• Transmission class: Cat.6A (ISO/IEC 11801; EN 50173-1)
• Shielding: fully shielded with 360° shielding contact
• Insulation resistance: 500 MΩ
• Material: ABS housing with steel and zinc components
• Dimensions: 70 × 50 × 43.2 mm
• Cable entry: variable inlet; can be wired from all directions in 8×45° steps
• Strain relief: two captive screw clamps for cable jacket and shielding
• Grounding: plug-in ground option at all four corners
• Installation depth: low profile suitable for floor tanks and subfloor boxes
• Connector compatibility: supports 6- and 8-pin plugs with overbend protection

How to use

Install the Telegärtner RJ-45 Cat6a outlet into a compatible mounting box or panel using the detachable fixing rail if required for subfloor installation. Route the shielded cable into the chosen inlet direction and secure the exterior jacket and shielding with the captive screw clamps to ensure strain relief and a reliable shielding connection. Terminate the conductor pairs according to Cat6A wiring standards and check continuity and shielding contact with appropriate testing equipment. Optionally attach the plug-in ground connector at a suitable corner for direct earthing.

Recommendations

For best results, use fully shielded Cat6A cable and maintain proper grounding of the shield. Ensure cable bend radii are respected during installation and verify transmission performance with a Cat6A-capable tester after termination. Combine the outlet with compatible faceplates and switching program covers for a consistent installation appearance.
