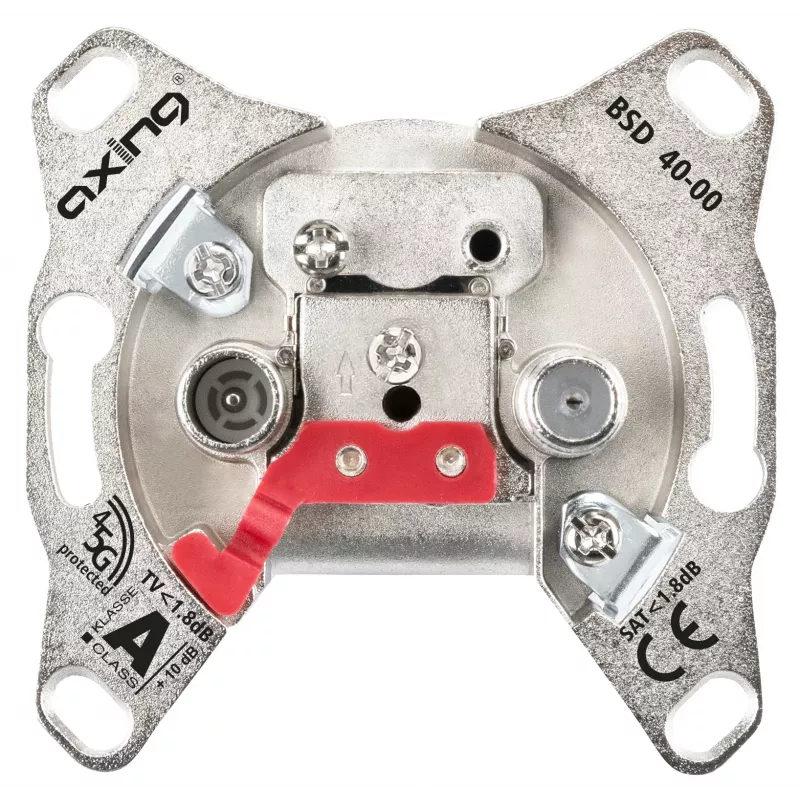

Tomada de utente AXING BK/SAT BSD 40-005-2200 MHz (BSD04000)

The AXING BSD04000 is a high-quality BK/SAT subscriber outlet designed for flush-mounted installation. It provides a reliable connection for cable TV (BK) and satellite TV (SAT) signals, featuring a frequency range of 5-862 MHz for TV/Radio and 950-2200 MHz for SAT. With three outputs (TV IEC male, Radio IEC female, SAT F-connector), it offers excellent signal distribution with low tap loss (4 dB TV/Radio, 5 dB SAT) and high shielding effectiveness (>100 dB, Class A). The outlet supports DC pass for SAT (max 500 mA) and return path capability (5-65 MHz), making it ideal for modern home networks.

Advantages

High-quality die-cast metal housing ensures durability and excellent shielding. Low tap loss minimizes signal degradation. Supports both TV/Radio and SAT signals in a single outlet. DC pass enables powering of external SAT components. Return path capability supports interactive services.

Suitable for

• Flush-mounted installation in residential and commercial buildings
• Connecting cable TV (BK) and satellite TV (SAT) systems
• Distribution of TV, radio, and satellite signals to multiple devices

Key specifications

• Product Type: Subscriber Outlet / Wall Socket
• Application: Cable TV (BK), Satellite TV (SAT)
• Frequency Range (TV/Radio): 5 - 862 MHz
• Frequency Range (SAT): 950 - 2200 MHz
• Number of Outputs: 3
• Output Connectors: TV (IEC Male), Radio (IEC Female), SAT (F-connector)
• Tap Loss (TV/Radio): 4 dB
• Tap Loss (SAT): 5 dB
• DC Pass for SAT: Yes (max 500 mA)
• Return Path Capability: Yes (5-65 MHz)
• Shielding Effectiveness: Class A (>100 dB)
• Impedance: 75 Ohm
• Isolation Between Outputs: >20 dB
• Housing Material: Die-cast Metal
• Installation Type: Flush-mounted

Recommendations

For optimal performance, use high-quality coaxial cables and ensure proper grounding. This outlet is compatible with standard BK and SAT systems. Professional installation is recommended.
