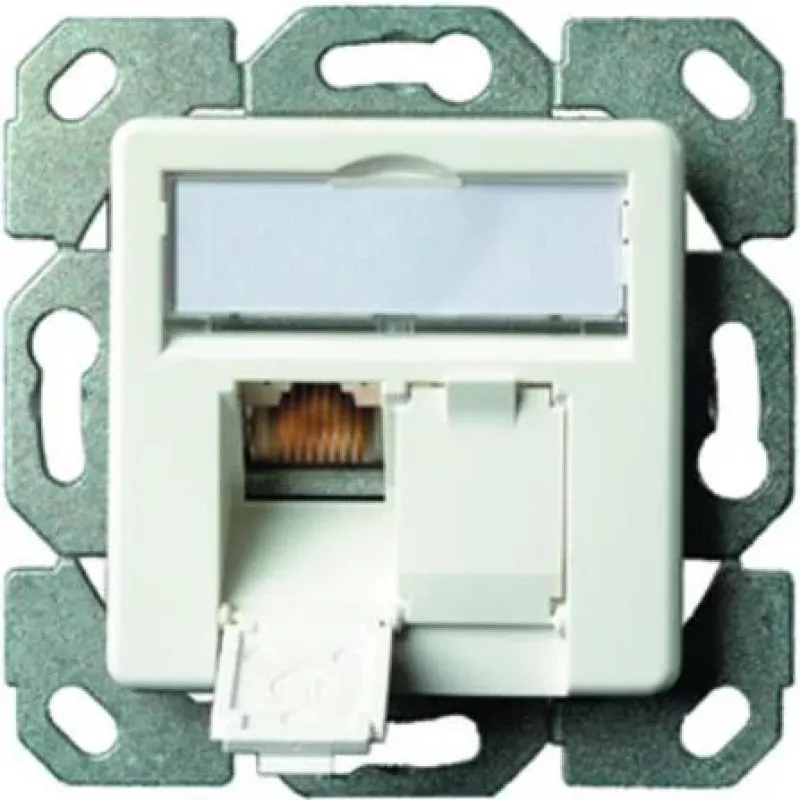

Tomada RJ45 de encastrar blindada AMJ-S Cat.6A TELEGÄRTNER J00020A0523, 2 tomadas, branco-puro

The TELEGÄRTNER J00020A0523 stands apart as a dual-port RJ45 outlet built around the AMJ-S module, delivering Cat.6A / Class EA performance in a flush-mount form factor. Unlike generic keystone jacks, this unit integrates two shielded RJ45 sockets in a single 50x50 mm central plate footprint, making it a direct fit for standard European flush-mount installations where space and signal integrity are equally critical.

Highlights

• 2 shielded RJ45 sockets (AMJ-S modules) in one compact outlet
• Cat.6A / Class EA performance up to 500 MHz, supporting 10GBASE-T
• Pure white (RAL 9010) housing in PC/ABS for durability
• Gold-plated contacts and LSA-Plus compatible IDC terminals
• 360° shielding contact and strain relief for reliable cable termination

In daily use

This outlet is intended for flush-mount (Unterputz) installation into standard wall boxes. The universal wiring scheme accepts both T568A and T568B, and the LSA-Plus compatible IDC terminals allow tool-free or punch-down termination depending on installer preference. The 360° shielding contact ensures the cable shield is fully bonded to the outlet, maintaining signal integrity in electrically noisy environments. With support for PoE, PoE+, and 4PPoE (PoE++), it can power connected devices such as IP cameras, wireless access points, and VoIP phones directly over the data cable.

Full specifications

• Number of ports: 2
• Connector type: RJ45
• Performance category: Cat.6A (Class EA)
• Shielding: Shielded (STP/FTP compatible)
• Colour: Pure White (RAL 9010)
• Mounting type: Flush mount (Unterputz)
• Transmission speed: Up to 10 Gigabit Ethernet (10GBASE-T)
• Frequency range: Up to 500 MHz
• Power over Ethernet: PoE, PoE+, 4PPoE (PoE++)
• Wiring scheme: T568A and T568B
• Termination type: LSA-Plus compatible IDC terminals
• Housing material: PC/ABS
• Contact material: Gold-plated
• Design compatibility: Standard 50x50 mm central plates
• Cable entry: 360° shielding contact and strain relief
• Standards compliance: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2
• Module type: AMJ-S Module
• Operating temperature: -40°C to +70°C
• IP rating: IP20

Final note

The TELEGÄRTNER J00020A0523 is a professional-grade solution for structured cabling where high bandwidth, PoE capability, and reliable shielding are required in a compact dual-port outlet.
