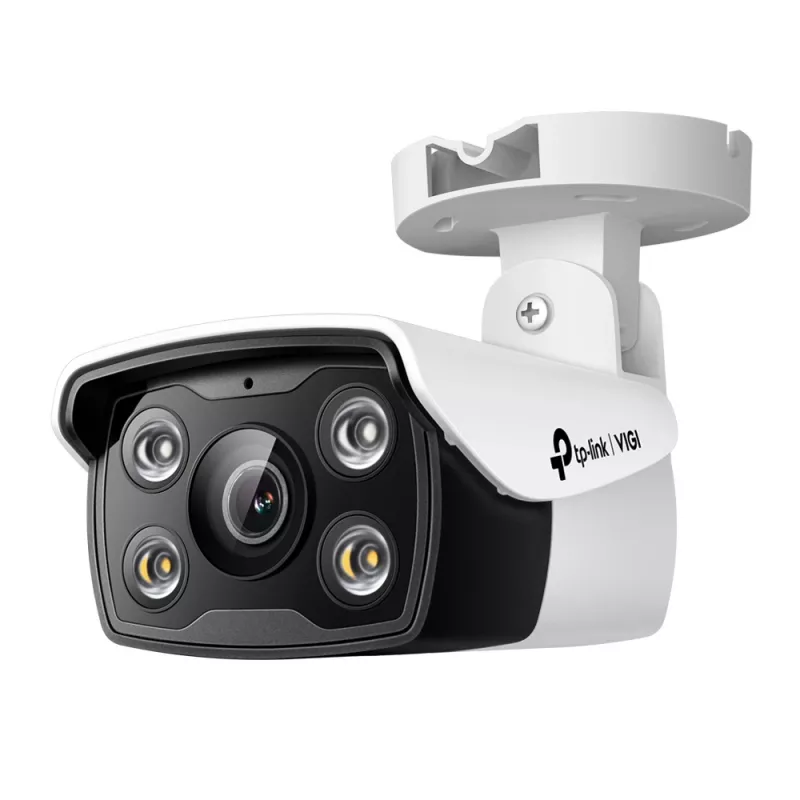

TP-Link VIGI C330(4mm) Câmara de segurança IP Bullet Exterior 2304 x 1296 pixels Teto/Parede/Poste

The TP-Link VIGI C330 is a 3MP outdoor bullet IP security camera with a resolution of 2304 x 1296 pixels, a fixed 4 mm lens and a CMOS sensor. Designed for outdoor wired installations, the camera supports ceiling, wall or pole mounting and delivers wide coverage with an 89.1° horizontal and 45.1° vertical field of view. Built-in supplemental lights and a large-aperture, high-sensitivity optical design provide full-color monitoring even in very low light.

Advantages

The VIGI C330 combines full-color night imaging, integrated AI-based human and vehicle classification, and onboard smart-detection features such as intrusion, line crossing, tamper and object removal/abandonment. It includes a built-in microphone for audio capture within approximately 15 ft, video enhancement technologies (Smart IR, WDR, 3D DNR, Night Vision) and efficient video compression to reduce bandwidth and storage use. Power-over-Ethernet (PoE) enables single-cable power and data transmission, and the camera housing is weatherproof for outdoor use.

Suitable for

• Retail storefront and shopfront monitoring
• Parking areas and driveways
• Perimeter and entry-point surveillance
• Outdoor commercial and small-business sites

Key specifications

• Model: TP-Link VIGI C330 (VIGI C330(4mm))
• Resolution: 2304 x 1296 (3MP)
• Lens: Fixed 4 mm
• Sensor: CMOS, large-aperture, high-sensitivity
• Field of view: 89.1° horizontal, 45.1° vertical
• Connectivity: Wired Ethernet (PoE supported)
• Audio: Built-in microphone (~15 ft radius)
• Mounting: Ceiling / Wall / Pole
• Placement: Outdoor, weatherproof housing
• Detection: Video motion detection, AI human & vehicle classification, tamper/obstruction and object removal alerts
• Video enhancement: Smart IR, WDR, 3D DNR, Night Vision
• Color: White
• EAN: 4897098689912

How to use

Install the TP-Link VIGI C330 at the chosen ceiling, wall or pole location and run a single RJ45 cable to provide both power and network connectivity via PoE. Position the camera to cover the target area within its 89.1° horizontal view and adjust mounting hardware to secure the housing. Configure the camera through the web UI, NVR UI, VIGI app or VIGI Security Manager to set resolution, detection rules (human/vehicle classification, line crossing, intrusion, tamper, object removal), audio recording and recording/streaming preferences. Verify the supplemental lighting and image enhancement settings for optimal full-color night performance.

Recommendations

For reliable outdoor surveillance, mount the camera at a stable location 2.5–4 m above ground when possible, aim it to minimise direct exposure to strong light sources, enable AI human/vehicle classification to reduce false alarms, and use PoE switches or injectors that meet the camera’s power requirements. Regularly check the lens and housing seals to maintain weatherproof performance.
