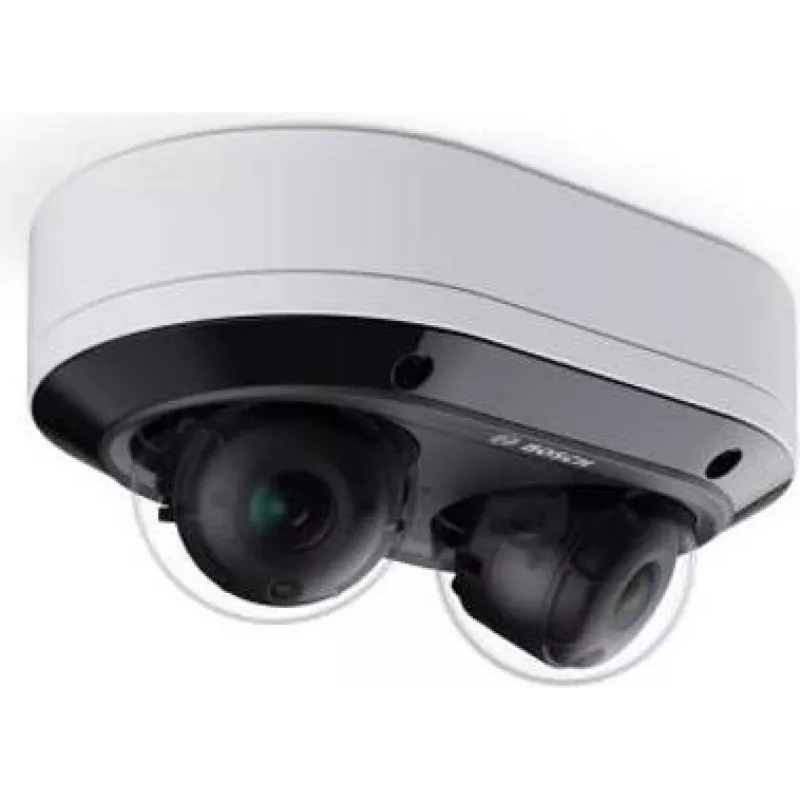

Câmara IP Bosch NDD-7803-AL Dual-Dome 2x5MP 3,2-8,1mm

Two 5-megapixel sensors in a single rugged dome deliver 10 MP of total surveillance coverage, each with motorized varifocal lenses from 3.2–8.1 mm. The Bosch NDD-7803-AL captures fine detail across wide or focused scenes, while 120 dB HDR handles challenging light and IP66/IK10+ rating shrugs off weather and impact.

Overview

The Bosch NDD-7803-AL is a dual-sensor IP dome camera engineered for high-detail outdoor and indoor monitoring. Each independent sensor provides 2592 x 1944 resolution with a motorized varifocal lens, allowing remote adjustment of the field of view from 100° wide to 40° tele. H.265 compression, Essential Video Analytics, and dual-way audio make it a complete surveillance solution.

What stands out

• Dual 5 MP sensors for 10 MP total coverage
• Motorized varifocal lenses (3.2–8.1 mm) per sensor
• 120 dB High Dynamic Range for difficult lighting
• IP66 weatherproof and IK10+ vandal-resistant housing
• Essential Video Analytics built in
• MicroSDXC slot supports up to 2 TB local recording

Technical details

• Sensor: 2 × 1/2.7" CMOS, 5 MP each
• Resolution: 2592 x 1944 per sensor
• Lens: Motorized varifocal, F1.6, 3.2–8.1 mm
• Field of view: 100° (wide) – 40° (tele) per sensor
• Video compression: H.265, H.264, M-JPEG
• Frame rate: up to 30 fps at 5 MP
• Minimum illumination: 0.08 lux (colour), 0.01 lux (B/W)
• Dynamic range: 120 dB HDR
• IR illumination: No (external IR required)
• Ingress protection: IP66
• Vandal resistance: IK10+
• Network: 1 × RJ45 10/100 Base-T Ethernet
• Power: PoE+ (IEEE 802.3at, Class 4) or 12 VDC
• Local storage: MicroSDXC slot (up to 2 TB)
• Audio: 1 × in, 1 × out (3.5 mm jack)
• Analytics: Essential Video Analytics
• Operating temperature: -50 °C to +60 °C

Our verdict

For sites that need dual-perspective coverage without installing two separate cameras, the NDD-7803-AL is a robust, high-resolution choice. Its varifocal lenses and advanced analytics make it suitable for both wide-area and detail-oriented surveillance, while the rugged build ensures long-term reliability.
