Transceptor QSFP28 BlueOptics Finisar FTLC9152RGPL BO25LS856S1D, 100GBASE-SWDM4, fibra multimodo, banda 850nm, 100 metros/DOM

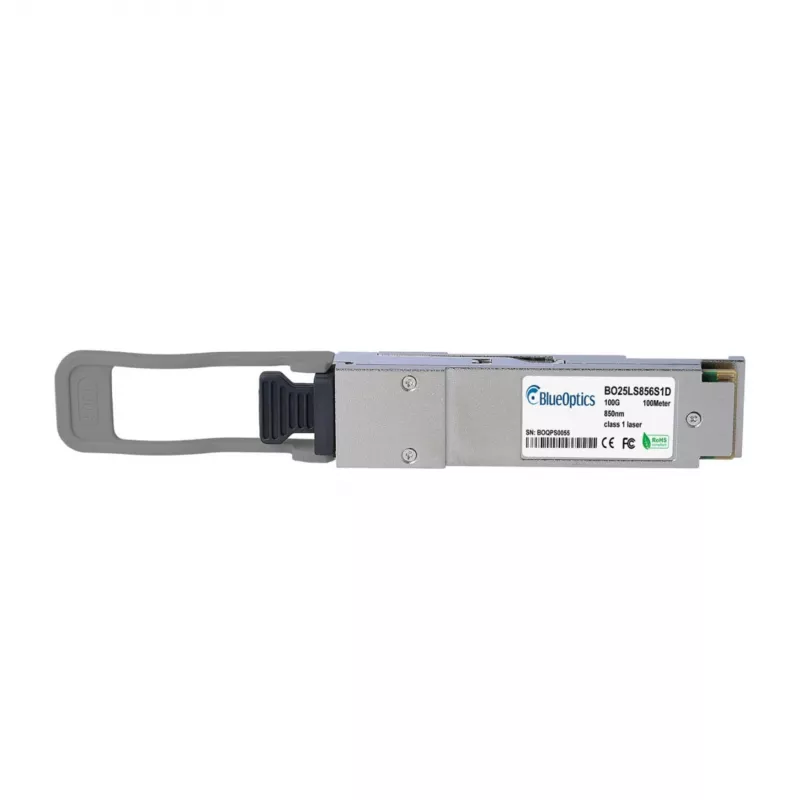

The BlueOptics Finisar FTLC9152RGPL BO25LS856S1D QSFP28 transceiver is a high-performance optical module designed for 100 Gigabit Ethernet applications. It supports the 100GBASE-SWDM4 standard over multimode fiber, utilizing the 850 nm wavelength band to achieve distances up to 100 meters. This pluggable module features Digital Optical Monitoring (DOM) for real-time performance tracking and is fully compatible with Finisar FTLC9152RGPL equipment.

Advantages

This transceiver offers reliable, high-speed connectivity for data centers and enterprise networks. Its SWDM4 technology enables four wavelengths over a single duplex LC connection, maximizing fiber utilization. With low power consumption (<3.5W) and hot-pluggable design, it simplifies network upgrades and maintenance.

Suitable for

• 100 Gigabit Ethernet switches and routers
• Data center interconnects
• High-performance computing clusters
• Enterprise network backbone links

Key specifications

• Form Factor: QSFP28
• Data Rate: 100 Gbps
• Ethernet Standard: 100GBASE-SWDM4
• Wavelength: 850 nm
• Fiber Type: Multimode Fiber (MMF)
• Max Reach: 100 meters
• Connector Type: Duplex LC
• DOM Support: Yes
• Hot Pluggable: Yes
• Transmitter Type: VCSEL
• Receiver Type: PIN Photo Detector
• Power Supply: 3.3 V
• MSA Compliance: QSFP28 MSA
• Compatibility: Finisar FTLC9152RGPL
• Application: 100 Gigabit Ethernet
• Optical Interface: SWDM4
• Electrical Interface: CAUI-4
• Power Consumption: < 3.5 W (Typical)
• Operating Temperature: 0°C to 70°C

Recommendations

For optimal performance, use with OM4 multimode fiber and ensure proper cleaning of optical connectors. This transceiver is ideal for short-reach 100G links within data centers.
