Tripé para nível laser Laserliner VarioStand

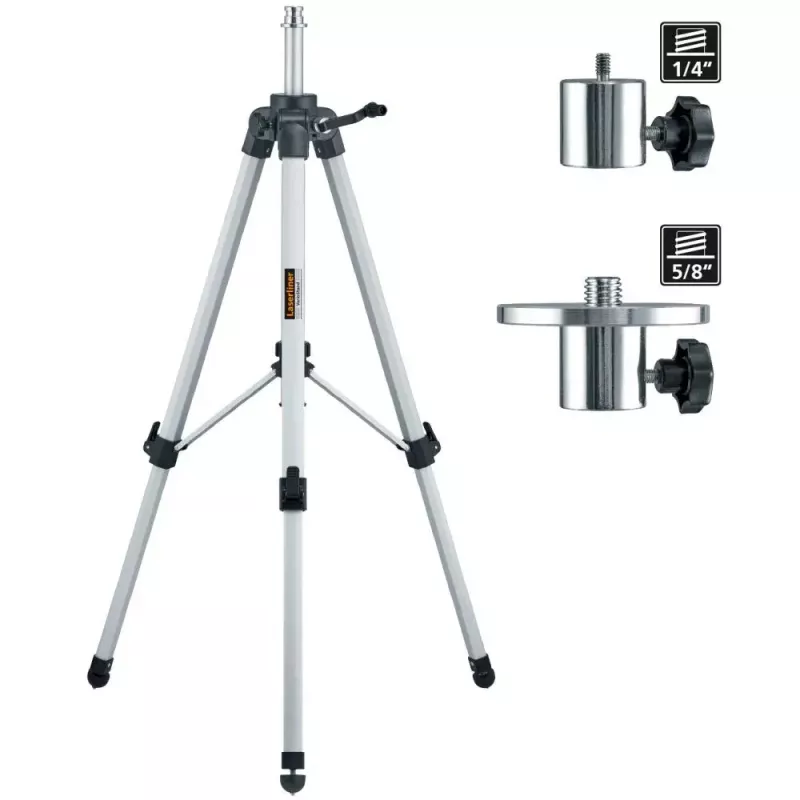

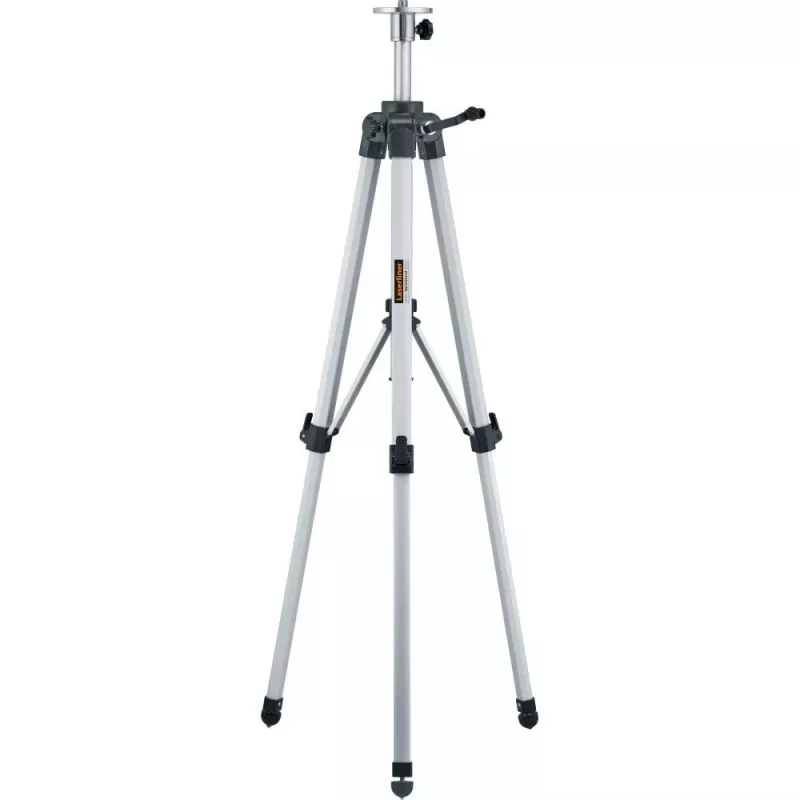

The Laserliner VarioStand is a high-quality aluminium tripod designed for laser measuring instruments with 1/4" and 5/8" threads. Its telescopic legs and crank adjustment allow safe and accurate setup on different ground surfaces, while combined rubber/steel tips improve stability. The tripod is lightweight and portable, with an adjustable height range from 57 cm to 122 cm and a maximum load capacity of 5 kg.

Advantages

The aluminium construction offers a balance of strength and low weight. Telescopic legs and a crank stroke enable fine height adjustment. Combined rubber/steel tips provide secure footing on various surfaces. Compatibility with both 1/4" and 5/8" threads ensures broad compatibility with laser levels and other measuring instruments.

Suitable for

Key specifications

How to use

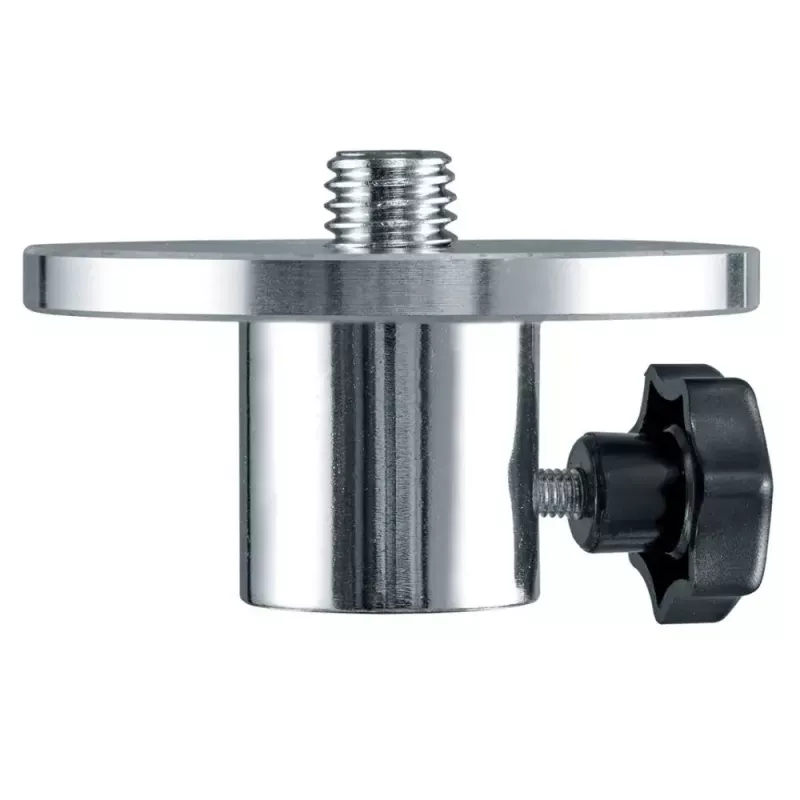

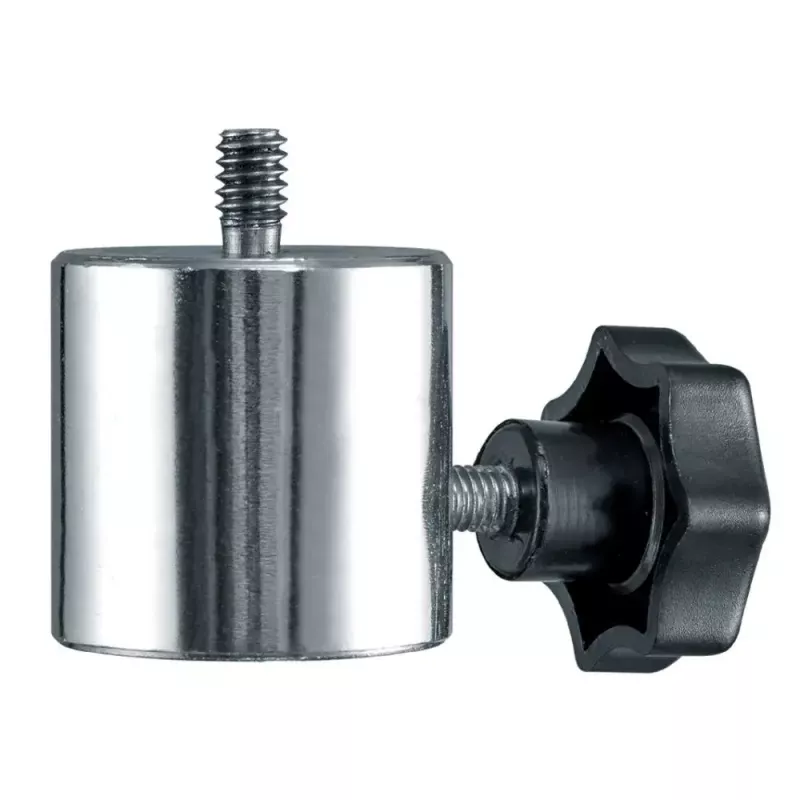

Extend the telescopic legs to the required height and lock them in place. Attach your laser measuring instrument using the appropriate 1/4" or 5/8" thread adapter. Use the crank to fine-tune the tripod height and adjust the leg lengths and tips to achieve a stable and level setup. Ensure the tripod stands firmly on the surface before operating the laser device.

Recommendations

For stable and accurate results, set the tripod on a firm surface and check that all leg locks are secure. Use the rubber side of the combined tips on smooth indoor floors and the steel side on rough or soft outdoor ground. Do not exceed the maximum load of 5 kg and store the tripod dry to prevent corrosion.
