TRITON RXA-04-AS4-BAX-A1 Armário de Parede 19 polegadas 4U, 550x400mm, desmontável, Preto (RAL 9005)

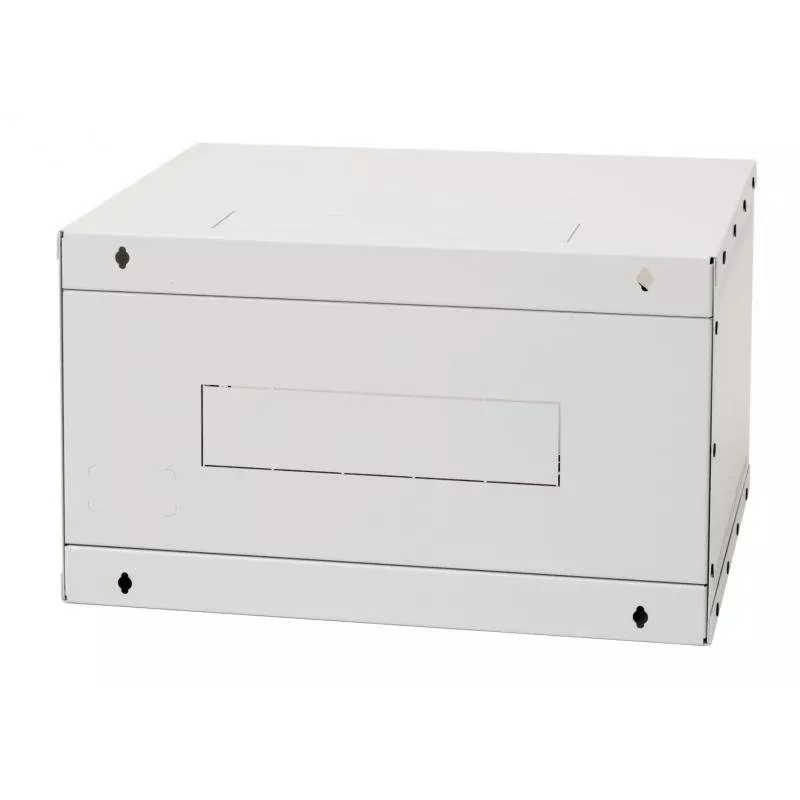

The TRITON RXA-04-AS4-BAX-A1 is a high-quality 19-inch wall-mounted rack cabinet designed for secure and organized installation of network and IT equipment. With a compact 4U height and a demountable flat-pack construction, this cabinet offers flexibility and ease of transport. Its robust steel frame and tempered glass front door provide durability and visibility, while the black RAL 9005 finish ensures a professional appearance.

Advantages

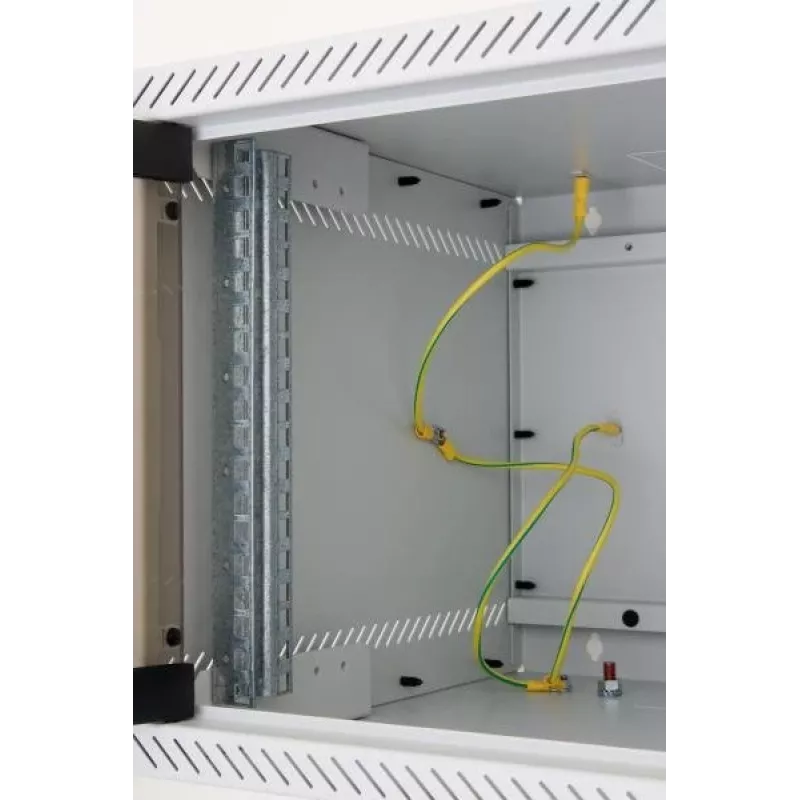

This wall cabinet features a lockable front door with a 180-degree opening angle for easy access, removable side panels for convenient cable management, and top/bottom cable entry points. The passive ventilation openings ensure adequate airflow, and the load capacity of 20 kg supports standard equipment. The self-assembly design allows for quick setup.

Suitable for

• Network switches, patch panels, and small servers
• IT installations in offices, server rooms, and industrial environments
• Wall-mounted applications where space is limited

Key specifications

• Rack Units: 4U
• Rack Standard: 19-inch
• External Dimensions (WxDxH): 400 x 550 x 236 mm
• Usable Depth: Approx. 470 mm
• Material: Steel
• Front Door: Tempered Glass, lockable
• Color: Black (RAL 9005)
• Load Capacity: 20 kg
• Protection Rating: IP20

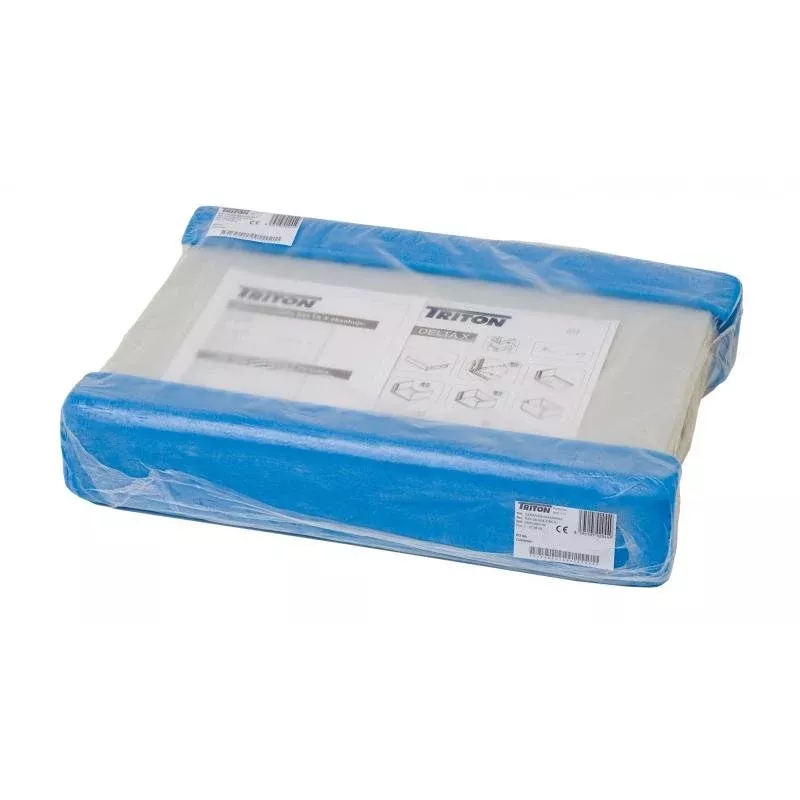

• Assembly: Self-assembly required

Recommendations

For optimal performance, ensure proper ventilation and do not exceed the maximum load capacity. Use appropriate wall anchors for secure mounting.
