Unidade de distribuição de energia Brennenstuhl BKV 2/4 T IP44

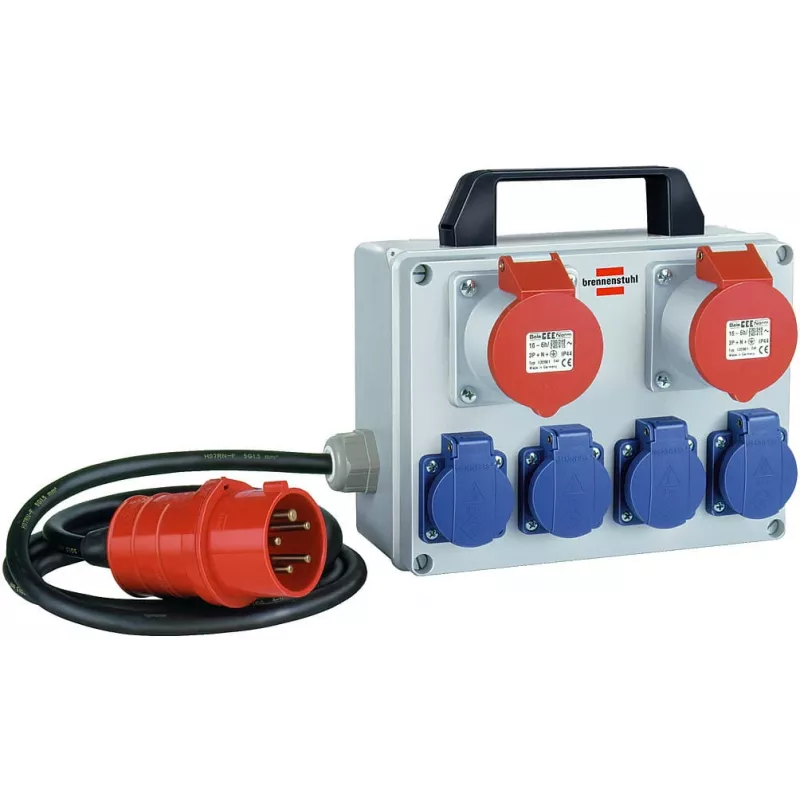

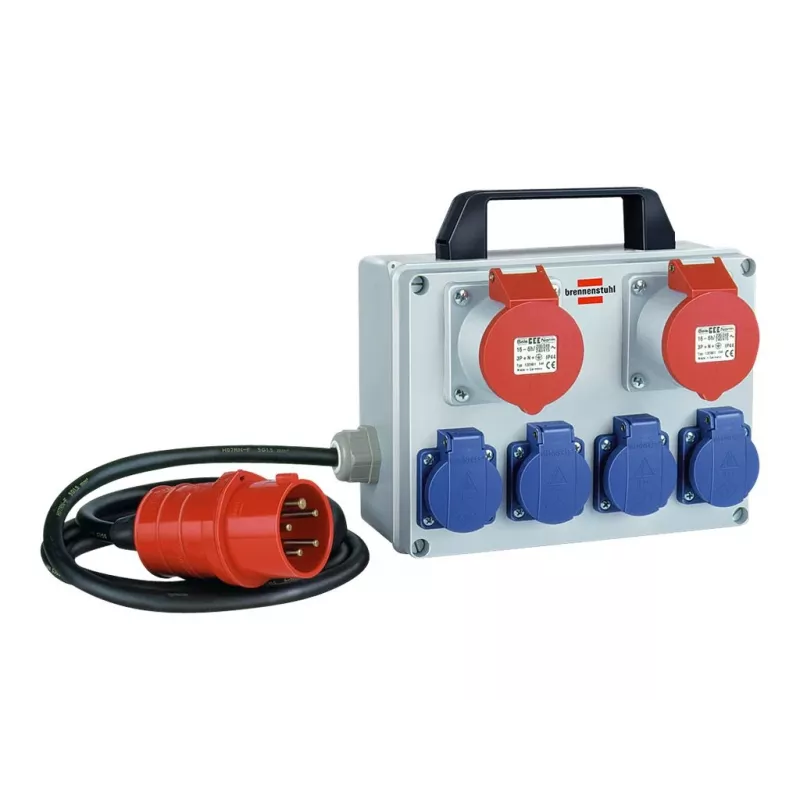

The Brennenstuhl BKV 2/4 T IP44 power distribution unit provides reliable multi-socket power distribution for outdoor and site use. Designed with an IP44 rating, a robust impact-resistant plastic housing and jet-water protection, this unit includes a comfortable carrying handle and an oil-resistant rubber cable for permanent outdoor operation. The unit features a CEE 5-pin 400 V/16 A plug and a total of six outlets: two CEE 400 V/16 A sockets and four 230 V/16 A sockets. Cable length is 2 m (H07RN-F 5G1.5).

Advantages

The device combines a sturdy, break-resistant plastic enclosure with IP44 jet-water protection for safe use in exposed conditions. Its oil-resistant H07RN-F cable and earthed sockets with three phases support industrial and construction site requirements. The integrated handle improves portability while the combination of CEE input and mixed output sockets allows flexible connection of 400 V three-phase and standard 230 V equipment.

Suitable for

• Construction sites and outdoor power distribution
• Temporary installations and event power supply
• Workshops and maintenance tasks requiring three-phase and single-phase outlets
• Industrial equipment with 16 A power connections

Key specifications

• Model: Brennenstuhl BKV 2/4 T IP44
• Input plug: CEE 400 V / 16 A, 5-pin
• Sockets: 2 x CEE 400 V / 16 A; 4 x 230 V / 16 A (earthed)
• Cable: H07RN-F 5G1.5, oil-resistant rubber
• Cable length: 2 m
• Protection rating: IP44 (jet-water protected)
• Housing: solid, break-resistant plastic
• Nominal voltage / max current: 400 V / 16 A
• Colours available: Black, Blue, Grey, Red

How to use

Connect the CEE 5-pin plug to a compatible 400 V/16 A supply before switching on connected devices. Use the appropriate sockets for three-phase (CEE) or single-phase (230 V) equipment and ensure all connected devices do not exceed the unit's maximum current rating. Route the oil-resistant H07RN-F cable to avoid sharp edges and heat sources. After use, disconnect the plug from the supply and store the unit in a dry place.

Recommendations

Use only with compatible 400 V/16 A CEE outlets and ensure proper earthing. Inspect the cable and housing for damage before each use. Do not immerse the unit in water; IP44 provides protection against splashing and jet water but is not suitable for full submersion. Follow local electrical safety regulations and, if in doubt, consult a qualified electrician.
