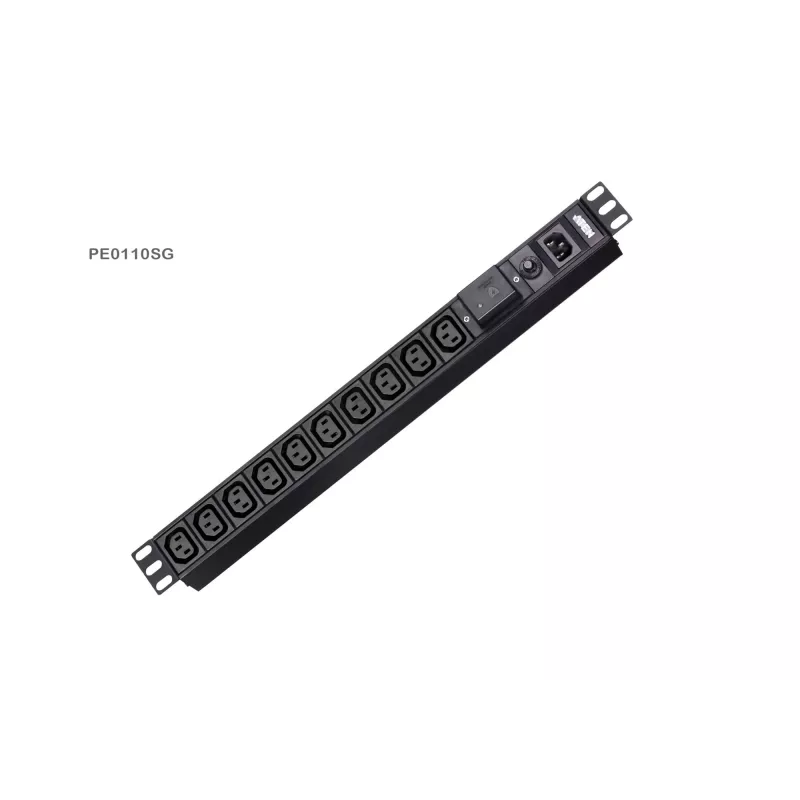

Unidade de distribuição de energia PDU ATEN PE0110SG

The ATEN PE0110SG is a 1U rack-mount power distribution unit (PDU) with 10 AC outlets (C13 couplers) that supplies power from a single inlet. Designed for rack installation, it supports a nominal input voltage of 100–240 V and a maximum current of 10 A. The unit features unfiltered electrical pass-through and integrated surge protection with an LED status indicator. Its aluminum housing and impact-resistant casing contribute to longer service life and installation versatility.

Advantages

The PDU provides ten accessible IEC/NEMA-style outlets in a compact 1U form factor, allowing centralized power distribution for rack-mounted equipment. Built-in surge protection helps reduce the risk of damage from power spikes and includes an LED indicator for visual status. Its aluminum housing offers durability and resistance to impact, and the product is RoHS compliant.

Suitable for

• Rack-mounted servers and network equipment
• Small data closets and server rooms
• Workbenches and AV racks
• IT maintenance and equipment staging areas

Key specifications

• Model: ATEN PE0110SG
• Form factor: 1U rack-mount PDU
• Outlets: 10 × C13 (IEC) style receptacles
• Input voltage: 100–240 V nominal
• Maximum current: 10 A
• Surge protection: integrated with LED indicator
• Housing: aluminum with impact-resistant casing
• Compliance: RoHS
• Dimensions (approx.): 444 mm width; depth 4820 mm; height 450 mm (as provided)

How to use

Mount the PDU in a standard 19-inch rack occupying 1U of space, or secure it to a wall, wooden furniture, or workbench as required. Connect the PDU input to a compatible power source within the specified 100–240 V range and a maximum of 10 A. Plug equipment power cords into the available C13 outlets. Verify the surge protection LED to confirm operational status and monitor it periodically for proper function.

Recommendations

For safe and reliable operation, ensure the total connected load does not exceed 10 A and use appropriate branch circuit protection. Install the PDU in a ventilated area away from liquids and excessive heat. Replace the unit or seek service if the surge indicator shows a fault or if the housing is damaged.
