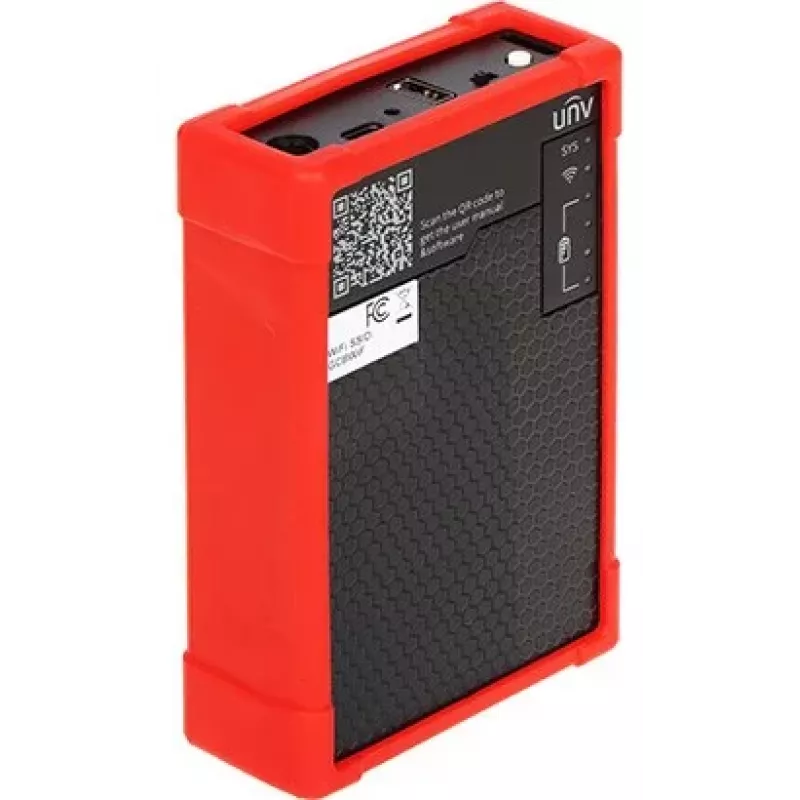

Uniview GCB01-B7 testador CCTV com ecrã tátil IPS de 7", suporte para câmara IP e analógica, saída PoE e teste de cabo

The Uniview GCB01-B7 is a professional CCTV tester designed for installers and technicians who need a reliable tool for testing and configuring IP and analog cameras. With a 7-inch IPS touch screen, built-in Wi-Fi, and support for multiple protocols including ONVIF, RTSP, Uniview, Hikvision, and Dahua, this tester simplifies on-site camera setup and troubleshooting. It features PoE output (48V, 802.3af/at, max 25.5W) and DC power output (12V/3A, 5V/2A) to power cameras directly, plus cable testing functions for RJ45 and coaxial cables. The rechargeable 5000mAh battery provides up to 10 hours of operation, making it ideal for long working days.

Advantages

All-in-one solution for IP and analog camera testing, including HD-CVI, HD-TVI, AHD, and CVBS. Large 7-inch IPS touch screen for clear image viewing. Built-in Wi-Fi for wireless network connectivity. PoE output eliminates the need for separate power adapters. Cable testing with TDR for RJ45 and coaxial cables. Long battery life of up to 10 hours. Expandable storage via MicroSD card slot.

Suitable for

• Security system installers and technicians
• Network engineers configuring IP cameras
• Field service professionals testing CCTV systems
• Maintenance personnel troubleshooting video surveillance

Key specifications

• Display: 7-inch IPS touch screen, 1280x800 pixels
• Camera support: IP (ONVIF, RTSP, Uniview, Hikvision, Dahua), Analog (HD-CVI, HD-TVI, AHD, CVBS up to 8MP)
• Video decoding: H.265, H.264
• Network: 2x Gigabit Ethernet, built-in 2.4GHz Wi-Fi
• PoE output: 48V, 802.3af/at, max 25.5W
• DC output: 12V/3A, 5V/2A
• Battery: 7.4V 5000mAh Lithium Polymer, up to 10 hours
• Cable testing: RJ45 TDR, UTP cable test, coaxial TDR
• PTZ control: RS485, IP PTZ
• Storage: 8GB internal flash, MicroSD card slot
• HDMI output: Yes
• Operating system: Android-based

Recommendations

For optimal performance, ensure the tester is fully charged before use. Use the included accessories for cable testing. The device supports a wide range of IP camera brands; verify compatibility with your specific models. The PoE output can power most IP cameras directly, but check power requirements.
