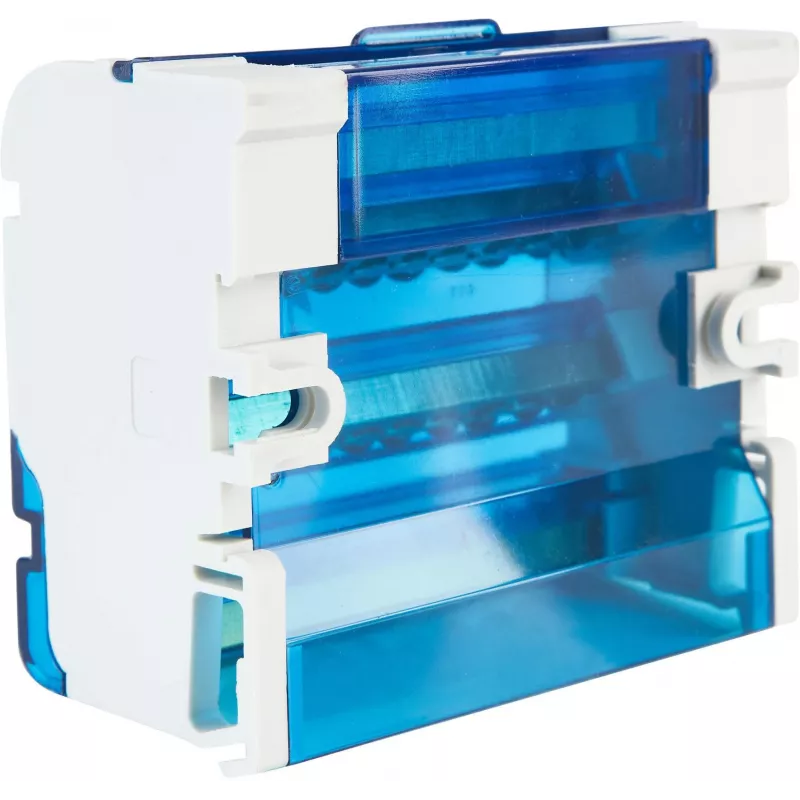

VCX BLK 411 Bloco de distribuição de 4 polos com 11 terminais 100A 1000V cinzento

The VCX BLK 411 is a high-quality distribution block designed for professional electrical installations. It features 4 poles with a total of 11 output terminals, providing reliable power distribution in industrial and commercial environments. Manufactured from durable polyamide (PA6) with copper/brass terminals, this block ensures long-lasting performance and safety.

Advantages

Robust construction with high current rating of 100A and voltage rating of 1000V AC/DC. Easy DIN rail mounting (TH35) and screw terminals for secure connections. Compact design saves space in control cabinets.

Suitable for

• Power distribution in electrical panels
• Industrial automation systems
• Commercial building installations

Key specifications

• Number of Poles: 4
• Total Output Terminals: 11
• Rated Current (In): 100 A
• Rated Voltage (Ue): 1000 V AC/DC
• Mounting Type: DIN Rail (TH35)
• Housing Material: Polyamide (PA6)
• Terminal Material: Copper / Brass
• Protection Degree: IP20
• Operating Temperature: -25°C to +70°C
• Standard Compliance: IEC 60947-7-1
• Terminal Type: Screw Terminals
• Colour: Grey

Recommendations

Ensure proper conductor sizing: input up to 35 mm², output up to 16 mm². Use appropriate tools for torque settings.
