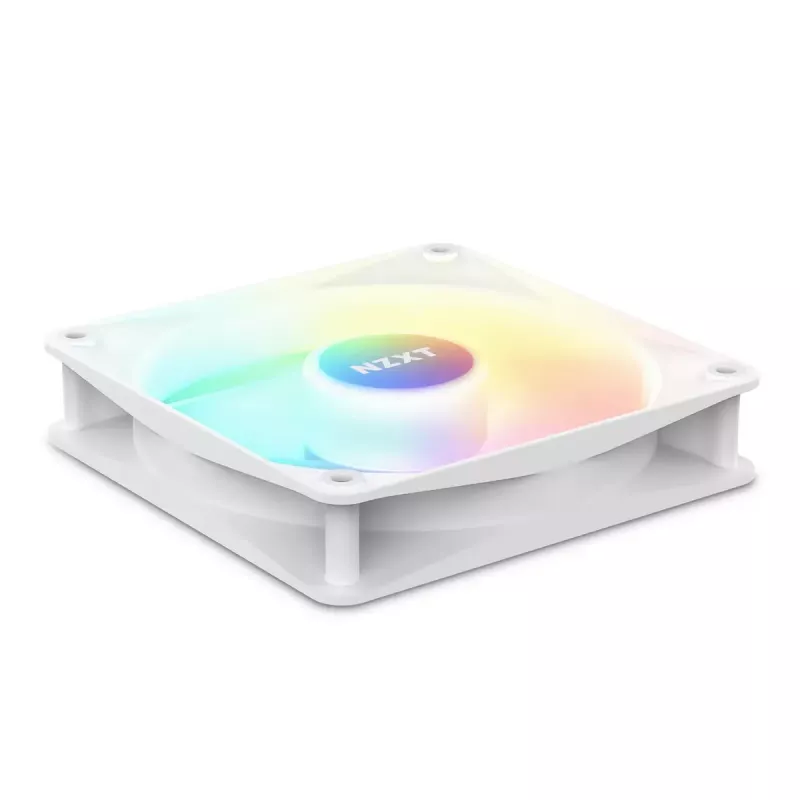

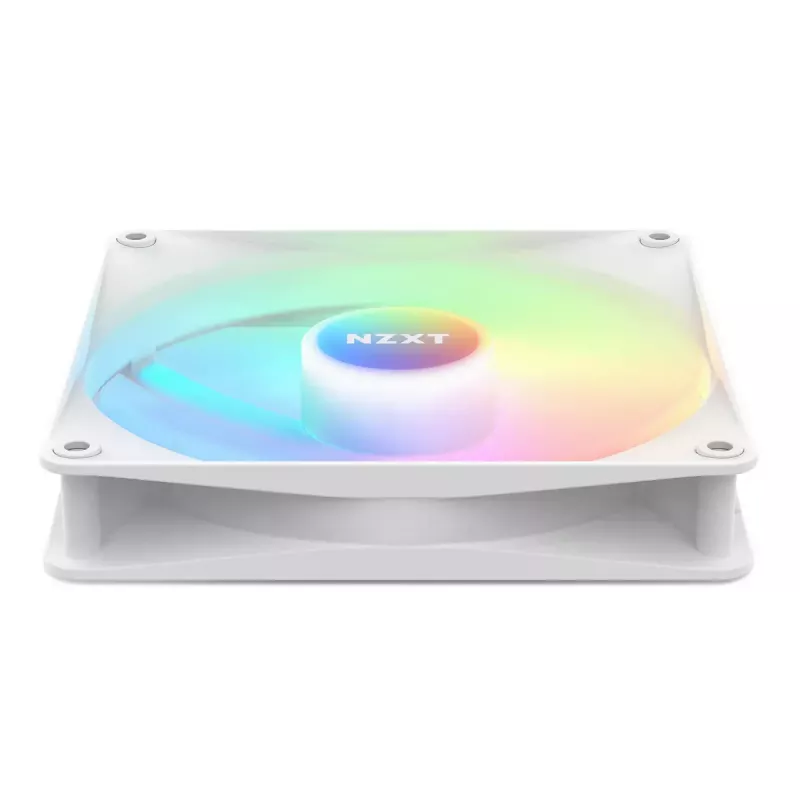

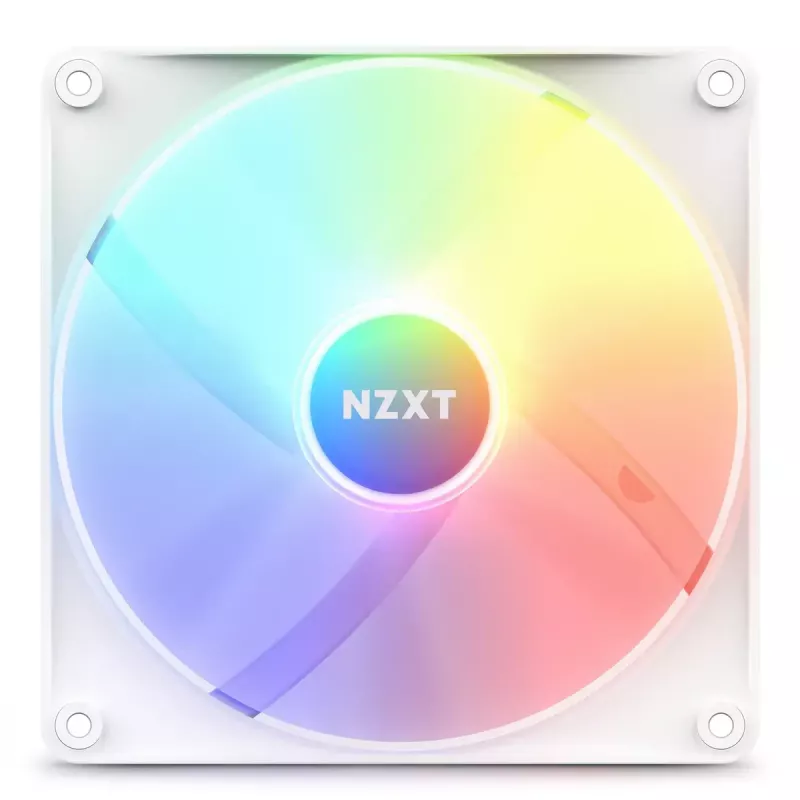

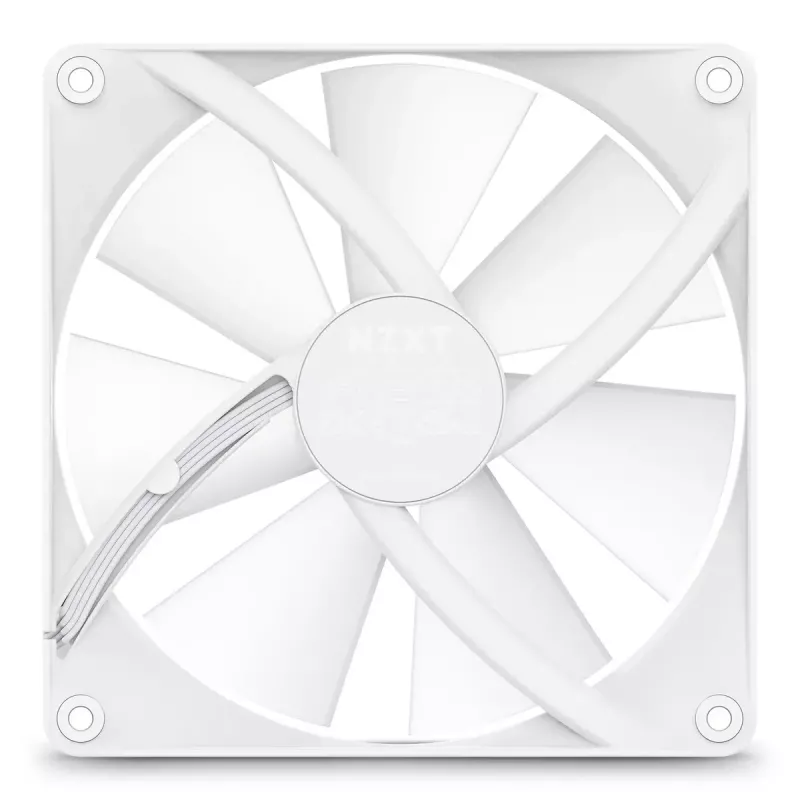

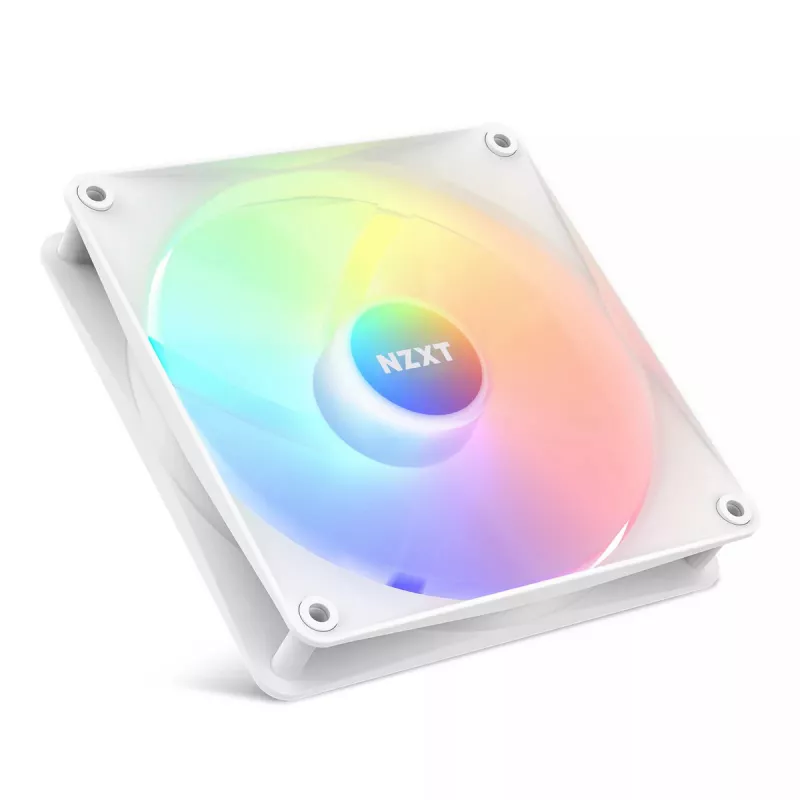

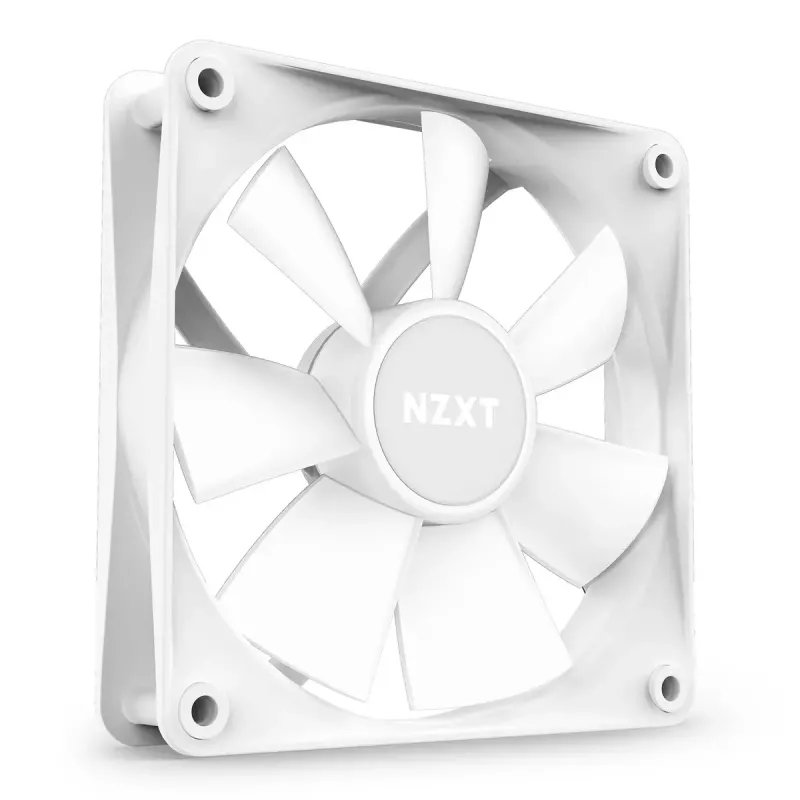

Ventoinha NZXT F140 RGB Core 14 cm branca 500-1500 RPM rolamento fluid dynamic

The NZXT F140 RGB Core is a 140 mm case fan that combines adjustable RGB lighting with efficient airflow for PC cooling. It operates between 500 and 1500 RPM, uses a Fluid Dynamic Bearing for reduced noise and longer lifespan, and delivers a maximum static pressure of 3.22 mmH2O. The white finish and eight individually addressable RGB LEDs provide customizable lighting while the fan is optimized for use in standard computer enclosures.

Advantages

Eight individually addressable RGB LEDs offer flexible lighting control compatible with common RGB ecosystems. The Fluid Dynamic Bearing reduces operational noise and improves durability. A broad speed range (500–1500 RPM) allows balancing airflow and acoustics. Maximum static pressure of 3.22 mmH2O makes the fan effective on radiators and in restricted airflow situations.

Suitable for

• Case cooling for desktop PCs
• Mounting on radiators or CPU coolers requiring higher static pressure
• Systems where low-noise operation is desired
• Builds that require white components and RGB lighting

Key specifications

• Fan diameter: 140 mm
• Speed range: 500–1500 RPM
• Bearing type: Fluid Dynamic Bearing
• Maximum static pressure: 3.22 mmH2O
• Colour: White
• Lighting: 8 individually addressable RGB LEDs

How to use

Install the fan into a compatible 140 mm mount in your computer case or on a radiator using the included screws. Connect the power and RGB headers according to your motherboard or RGB controller documentation to enable fan speed control and lighting synchronization. Configure fan curves in BIOS or a fan-control utility to match desired cooling and noise levels.

Recommendations

For optimal cooling performance, position the NZXT F140 RGB Core where airflow is least obstructed and use a balanced fan curve to maintain efficient cooling with acceptable noise. Ensure RGB connection is compatible with your controller before finalizing installation.
