Ventoinha para caixa Phanteks D30-140 140mm branca PWM pack de 3 — 140x30 mm, 250–1800 U/min, FDB

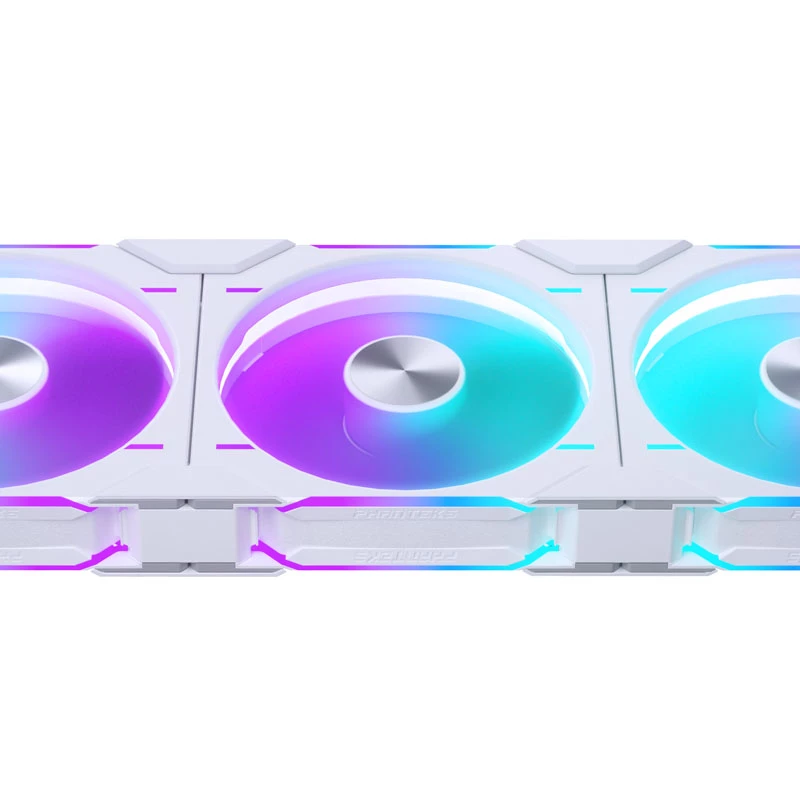

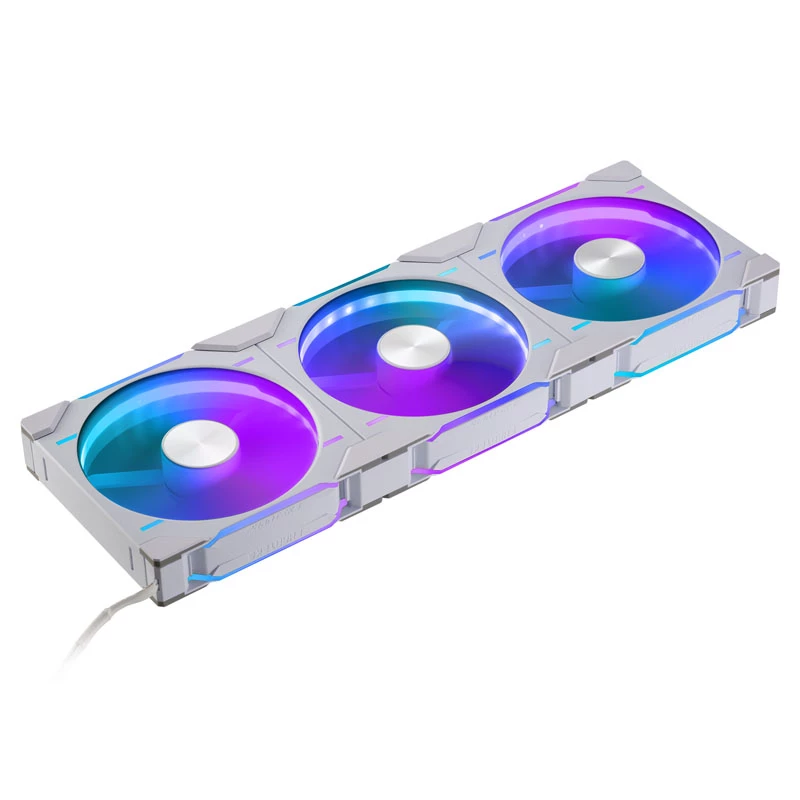

Phanteks D30-140 140mm White PWM Case Fan 3-pack combines a 30 mm thick aerodynamic fan design with integrated D-RGB lighting across the frame and blades. Each 140 x 30 mm fan supports PWM control, runs between 250 and 1800 RPM, and delivers up to 71.76 CFM airflow with a maximum static pressure of 3.08 mmH2O. The fans use a Fluid Dynamic Bearing for reduced wear and consistent operation. The set includes three fans, available in regular and reversed airflow models to allow flexible placement and a clean visual layout. Multiple D30-140 fans can be linked with bridge connectors and screw cover plates to minimize cable clutter and produce an orderly installation.

Advantages

The 30 mm thickness yields improved noise-normalized performance compared with standard 25 mm fans, making the D30-140 effective on radiators, mesh panels and dust filters. Integrated D-RGB lighting is visible from all sides and is complemented by reflective blade surfaces for smoother lighting effects. PWM control enables direct speed management from the motherboard, while the Fluid Dynamic Bearing increases durability and lowers mechanical noise over time. The availability of regular and reversed airflow models gives greater flexibility for optimized system airflow paths and a consistent aesthetic in both push and pull configurations.

Suitable for

• PC chassis cooling to improve case airflow
• Radiator push/pull configurations for liquid cooling
• CPU cooler support where 140 mm fans are compatible
• Builds requiring visible RGB lighting and a clean cable layout

Key specifications

• Fan size: 140 x 30 mm
• Speed range: 250–1800 RPM (PWM)
• Maximum airflow: up to 71.76 CFM
• Maximum static pressure: 3.08 mmH2O
• Noise level: up to 32.1 dB at top speed
• Bearing type: Fluid Dynamic Bearing (FDB)
• Voltage operating range: 5–13.2 V
• Lighting: integrated D-RGB visible on frame and blades
• Included quantity: 3 fans per pack

How to use

Install the fans in the intended orientation (regular or reversed) to match your case airflow plan or radiator configuration. Secure each fan using the supplied screws and, if desired, attach the screw cover plates for a cleaner appearance. Connect PWM power cables to the motherboard fan headers for automatic speed control; connect the Digital-RGB cable to a compatible header or controller to synchronize lighting. When linking multiple D30-140 units, use the bridge connectors to reduce cable runs and align lighting across fans. Ensure adequate clearance for the 30 mm thickness before final installation.

Recommendations

For optimal thermal performance on radiators, consider using D30-140 fans in a push/pull arrangement and monitor fan curves in BIOS or software to balance noise and cooling. Use reversed and regular models strategically to maintain a uniform appearance and uninterrupted D-RGB lighting direction. Regularly clean mesh filters and fan blades to preserve airflow and lighting clarity.
