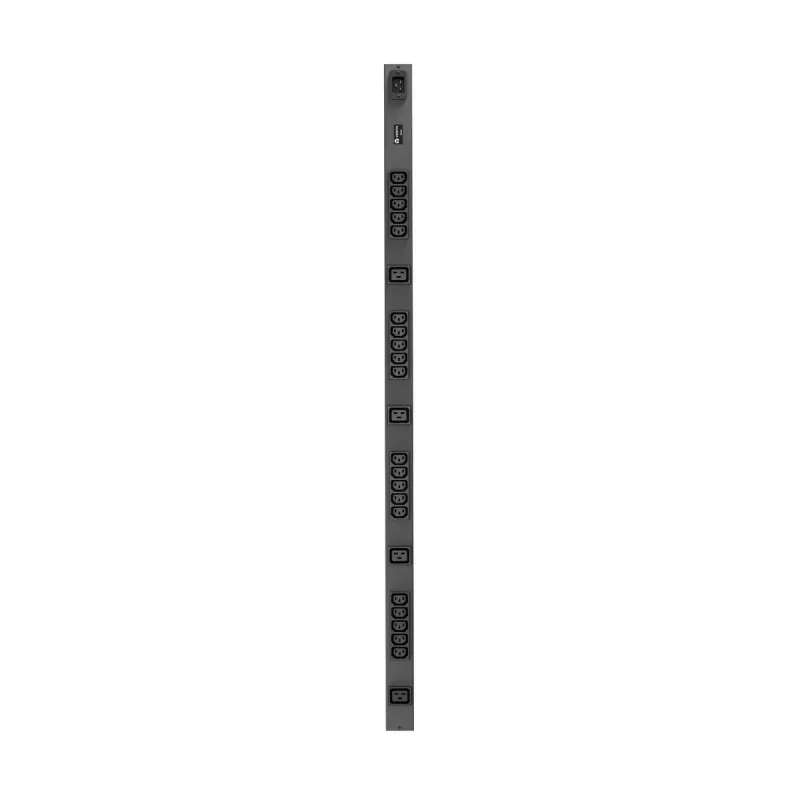

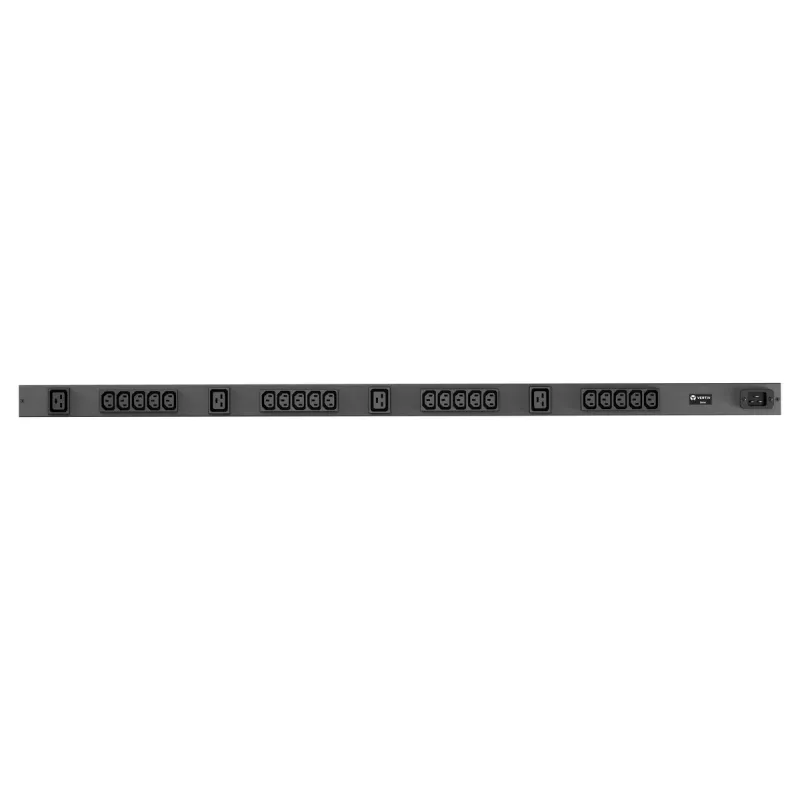

Vertiv Geist rPDU, Basic, 0U, entrada C20 230V 16A, saídas (20)C13 | (4)C19 unidade de distribuição de energia (PDU) 24 saídas AC preto

The Vertiv Geist Basic Rack PDU VP7552 is a 0U vertical power distribution unit designed for installation in equipment racks. It supplies up to 16 A at 230 V through a total of 24 AC outlets (20 IEC C13 and 4 IEC C19) and receives mains power via an IEC 60320 C20 inlet. The unit is compact (1207 x 51 x 51 mm), weighs 3.1 kg and is CE-, RoHS- and CB-certified. A three-year manufacturer warranty is included and can be extended to five years if registered within 120 days of purchase.

Advantages

The rPDU Basic 0U provides reliable, space-saving vertical power distribution for racks with a mix of C13 and C19 sockets to support servers and networking equipment. Built to compliance standards and individually tested for functionality, it offers predictable performance and straightforward integration into existing rack layouts. Its slim form factor and black finish facilitate efficient use of rack space while maintaining professional appearance.

Suitable for

• Server racks in data centers and server rooms
• Network cabinets and telecommunications enclosures
• IT equipment requiring multiple IEC C13 and C19 outlets
• Environments needing a compact 0U vertical PDU

Key specifications

• Model: Vertiv Geist rPDU Basic 0U (MPN VP7552)
• Input: IEC 60320 C20 inlet
• Output: 20 × IEC C13, 4 × IEC C19
• Rated current and voltage: 16 A, 230 V
• Dimensions (HxWxD): 1207 × 51 × 51 mm
• Weight: 3.1 kg
• Colour: Black
• Certifications: CE, RoHS, CB; UL-listed
• Warranty: 3 years (extendable to 5 years if registered within 120 days)

How to use

Mount the PDU vertically in an appropriate rack rail position using compatible mounting brackets or fasteners. Connect the mains supply to the IEC C20 inlet using a suitable power cable rated for 16 A and 230 V. Plug equipment into the IEC C13 and C19 outlets as required, observing the total current limit to avoid overloading the unit. Regularly inspect connections and ensure adequate ventilation around the PDU to maintain safe operation.

Recommendations

Distribute connected equipment across outlets to balance load and avoid exceeding 16 A total. Register the product with Vertiv within 120 days to extend the warranty to five years. Do not exceed the specified ratings, and follow local electrical codes when installing and connecting the PDU.
