Volt Polska ULTRA-5 51,2V 314Ah 200A LiFePO4 Armazenamento de energia 16076Wh

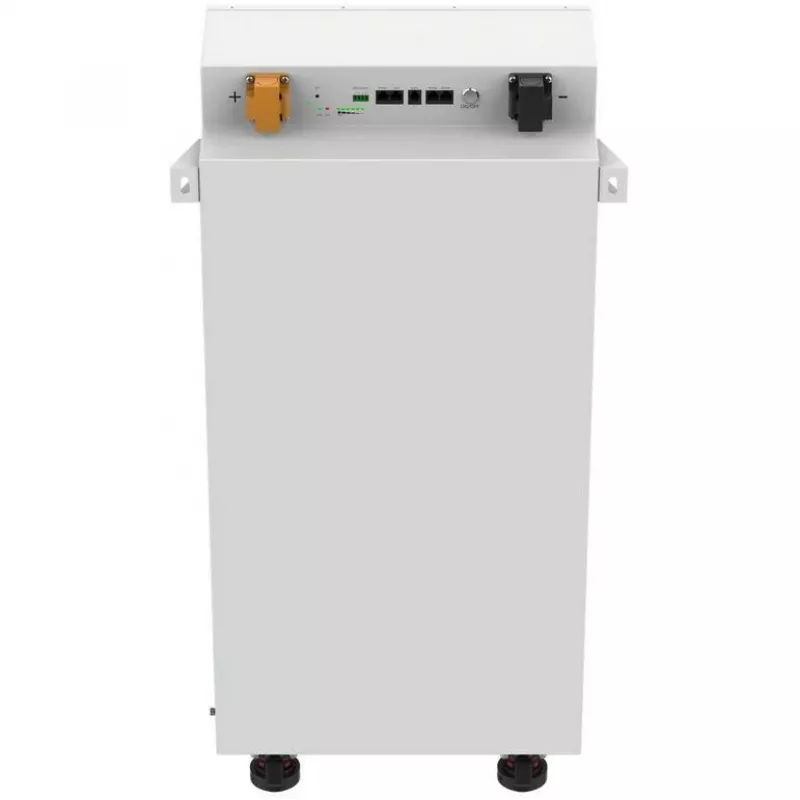

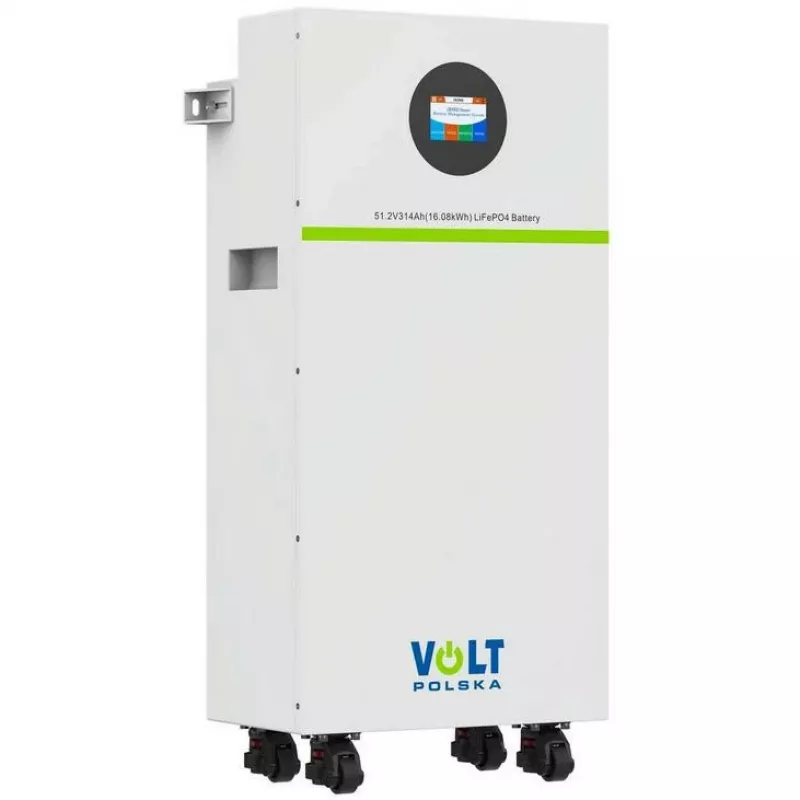

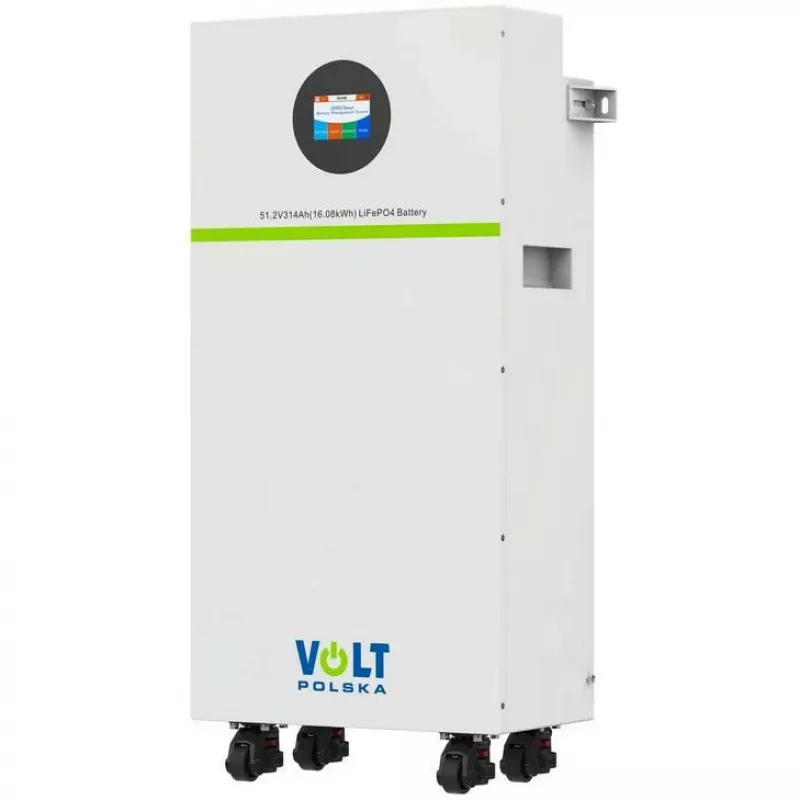

The Volt Polska ULTRA-5 is a high-capacity LiFePO4 energy storage system designed for demanding applications. With a nominal voltage of 51.2V and a capacity of 314Ah, it delivers 16076Wh (16.076 kWh) of reliable power. The built-in intelligent BMS ensures safe operation, while the robust design supports up to 16 units in parallel for scalable energy solutions.

Advantages

Long cycle life of over 6000 cycles at 80% DoD ensures durability and cost-effectiveness. High continuous discharge current of 200A supports heavy loads. The LiFePO4 chemistry provides enhanced safety and thermal stability. Communication interfaces RS485 and CAN enable seamless integration with monitoring systems.

Suitable for

• Solar energy storage systems
• Backup power for residential and commercial applications
• Off-grid and hybrid power solutions
• Electric vehicle charging stations

Key specifications

• Battery Type: LiFePO4
• Nominal Voltage: 51.2V
• Nominal Capacity: 314Ah
• Energy Capacity: 16076Wh (16.076 kWh)
• Max Continuous Discharge Current: 200A
• Max Continuous Charge Current: 200A
• Peak Discharge Current: 250A (for 3s)
• Cycle Life: >6000 cycles @ 80% DoD
• Depth of Discharge: Up to 100% (recommended 80%)
• Communication Interface: RS485, CAN
• Built-in BMS: Yes
• Operating Temperature (Discharge): -20°C to 60°C
• Operating Temperature (Charge): 0°C to 45°C
• Storage Temperature: -10°C to 35°C
• Terminal Type: M8
• Enclosure Protection: IP20
• Parallel Connection: Yes (Up to 16 units)
• Design Life: 15+ years
• Charging Voltage Range: 54V - 58V

Recommendations

For optimal performance and longevity, operate within recommended temperature ranges and avoid deep discharges below 80% DoD. Ensure proper ventilation and follow manufacturer guidelines for installation and maintenance.
