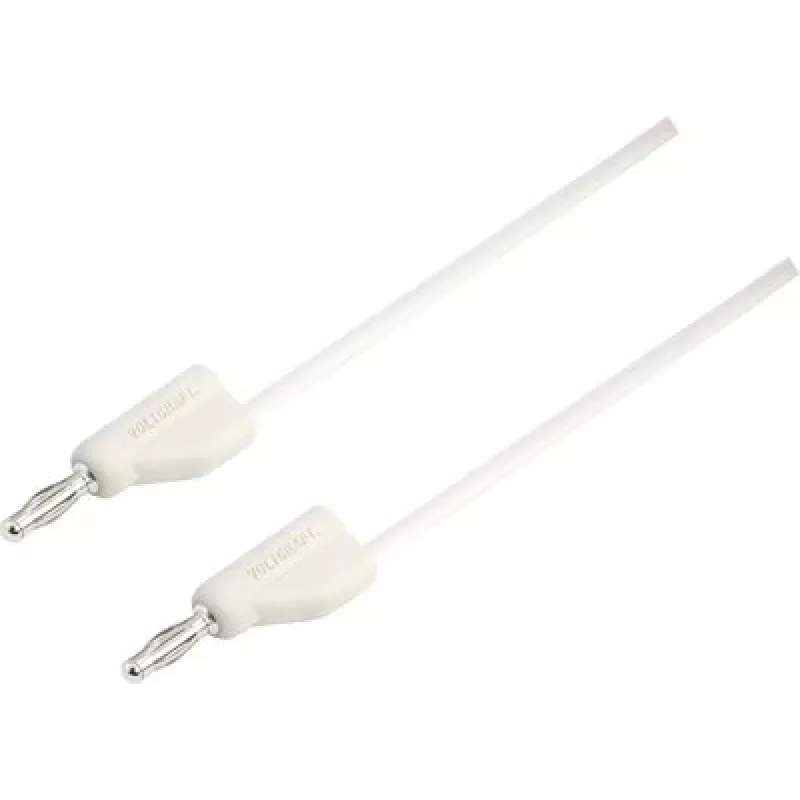

VOLTCRAFT MSB-300-1-WS Cabo de medição de segurança, ficha banana de 4 mm para ficha banana de 4 mm, 1 m, branco, CAT III 1000 V / CAT IV 600 V, 16 A

For precise and safe measurements in CAT III and CAT IV environments, the VOLTCRAFT MSB-300-1-WS stands out with its robust construction and high-quality materials. Unlike standard test leads, this lead features spring-loaded, fully shrouded 4 mm safety banana plugs on both ends, ensuring secure connections and preventing accidental contact. The 1 mm² copper conductor with PVC insulation delivers reliable performance, while the nickel-plated brass contacts provide excellent conductivity and durability. With a maximum rating of 1000 V CAT III and 600 V CAT IV, and a current capacity of 16 A, this lead is ideal for professional electrical testing, laboratory work, and industrial maintenance.

Highlights

• Spring-loaded, shrouded 4 mm safety banana plugs on both ends for secure and safe connections
• High voltage rating: CAT III 1000 V, CAT IV 600 V, suitable for demanding measurement tasks
• Low resistance of less than 30 mΩ ensures accurate signal transmission
• Flexible PVC insulation with 1 mm² copper conductor for easy handling and durability
• Wide operating temperature range from -15 °C to +70 °C
• Compliant with IEC/EN 61010-031 and RoHS

In daily use

Whether you are working in a laboratory, on industrial equipment, or performing field service, the MSB-300-1-WS provides the reliability you need. The white colour offers high visibility, reducing the risk of misidentification in complex setups. The stackable design allows multiple leads to be connected to a single point, expanding your measurement capabilities. The lead's 1 m length offers a good balance between reach and manageability, minimizing clutter on your workbench. The spring-loaded plugs maintain constant pressure, ensuring a stable connection even under vibration or movement.

Full specifications

• Connector Type A: 4 mm Safety Banana Plug, spring-loaded, shrouded
• Connector Type B: 4 mm Safety Banana Plug, spring-loaded, shrouded
• Cable Length: 1 m
• Colour: White
• Max Current Rating: 16 A
• Max Voltage Rating: 1000 V CAT III, 600 V CAT IV
• Insulation Material: PVC
• Conductor Cross-section: 1 mm²
• Contact Material: Nickel-plated Brass
• Conductor Material: Copper
• Temperature Range: -15 °C to +70 °C
• Lead Type: Safety Measuring Lead
• Stackable: Yes
• Resistance: < 30 mΩ
• Insulation Resistance: > 1 GΩ
• Number of Leads: 1
• Compliance: RoHS
• Test Standard: IEC/EN 61010-031

Final note

Invest in safety and precision with the VOLTCRAFT MSB-300-1-WS – a professional-grade test lead that meets the highest standards for electrical measurement.
