VOLTCRAFT pinça de crocodilo com ficha de 4 mm CAT III 1000 V, CAT IV 600 V preto/vermelho MSK-116 (VC-8371750)

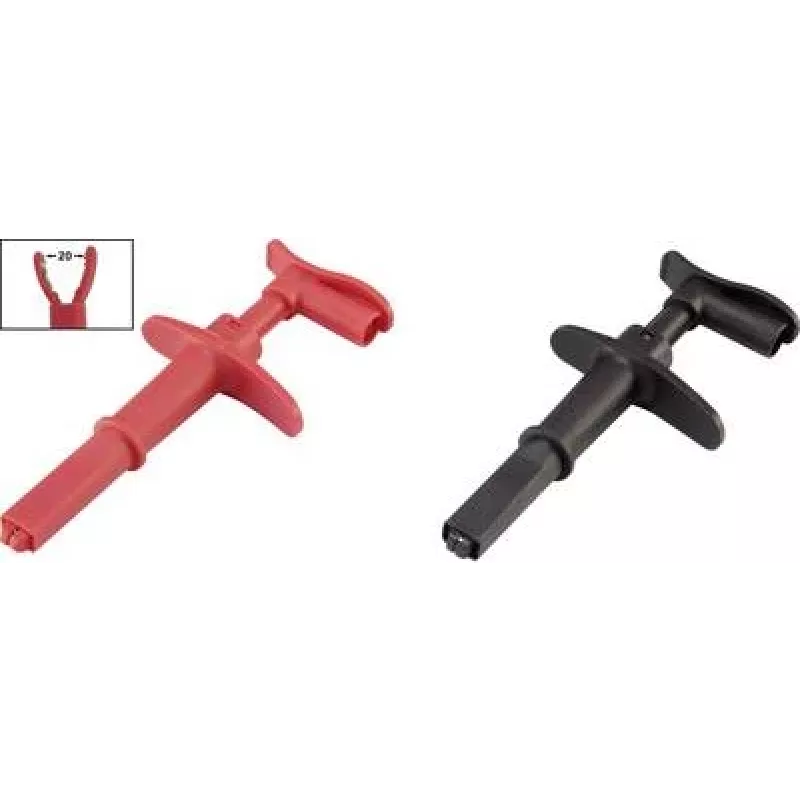

For electricians and test engineers working on high-energy circuits, the VOLTCRAFT MSK-116 crocodile clip set provides a secure connection between test leads and measurement points. The set includes one black and one red fully insulated clip, each fitted with a 4 mm banana plug for direct attachment to compatible test leads.

Key specifications

• Connector type: Crocodile clip with 4 mm banana plug (male)
• Safety rating: CAT III 1000 V, CAT IV 600 V
• Maximum current: 30 A
• Jaw opening: 12 mm
• Clip material: Nickel-plated brass / steel
• Insulation material: Polyamide (PA)
• Operating temperature: -15°C to +70°C
• Contact resistance: < 50 mΩ
• Clip length: 55 mm
• Quantity: 2 pieces (1 black, 1 red)

Why choose it

The clips are fully insulated and rated for CAT III 1000 V and CAT IV 600 V environments, making them suitable for measurements in building installations and at the source of low-voltage supply. The 12 mm jaw opening accommodates a wide range of terminal sizes, while the nickel-plated contacts ensure reliable conductivity.

Ideal use cases

• Connecting multimeters or test leads to screw terminals and busbars
• Measurements in distribution boards and industrial control panels
• Laboratory and field testing where hands-free probing is required

Good to know

The clips are RoHS compliant and meet IEC 61010 safety standards. They are sold as a pair in black and red for easy polarity identification.
