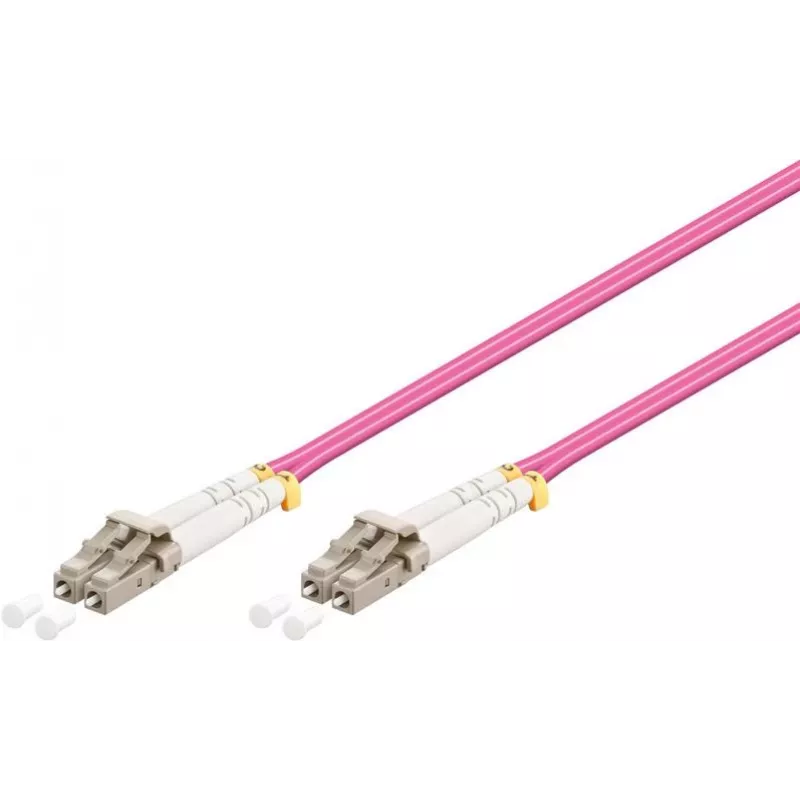

Wentronic Cabo de patch de fibra ótica LC-LC OM4 duplex multimodo, 50/125µm, LSZH, rosa 95940

For high-speed backbone links where every decibel counts, this OM4 fiber patch cable pairs precision-polished LC connectors with a bend-tolerant 50/125µm core to deliver 100 Gigabit Ethernet over multimode runs. Unlike generic OM3 or single-mode jumpers, its laser-optimized OM4 glass pushes effective modal bandwidth to 4700 MHz·km at 850 nm, making it the practical choice for 40G/100G SR4 optics in modern data centers and campus aggregation layers.

Highlights

• Duplex LC male-to-male connectors, factory terminated and tested for insertion loss ≤ 0.3 dB
• OM4 laser-optimized multimode fiber, backward compatible with existing OM3 infrastructure
• Low-smoke zero-halogen (LSZH) pink jacket for safe use in enclosed or public spaces
• Supports 100GbE, 40GbE, 10GbE and Fibre Channel up to 128GFC depending on transceivers
• Operating range from -20 °C to +70 °C for deployment in non-climate-controlled IDFs and pathways

In daily use

Patch panels, SAN directors and top-of-rack switches connect without polarity guesswork: the duplex clip keeps TX/RX pairs aligned, while the standard LC footprint fits all common SFP, SFP+, QSFP+ and QSFP28 transceivers. The LSZH jacket emits very little smoke and no corrosive halogen gases if exposed to fire, so the cable can be routed through plenum-free riser spaces and public areas without additional conduit. Pink coloring stands out in dense fiber trays, simplifying tracing and change management.

Full specifications

• Fiber type: Multimode, OM4, 50/125 µm core/cladding
• Connectors: LC male to LC male, duplex clip
• Jacket material: LSZH (Low Smoke Zero Halogen), pink
• Bandwidth: 4700 MHz·km @ 850 nm, 500 MHz·km @ 1300 nm
• Insertion loss: ≤ 0.3 dB per connector
• Return loss: ≥ 30 dB
• Temperature range: -20 °C to +70 °C
• Compliance: RoHS, CE
• Applications: Data centers, SANs, LAN backbones, high-speed interconnects

Final note

When upgrading from OM3 to OM4, this cable removes the last bottleneck before 100G optics—without replacing existing patch panels or cassettes.
