Wentronic Goobay Conector macho tipo N de crimpagem para cabo RG58, 5,2 mm, pino dourado, 50 Ohm 11361

Gold-plated center contact and 50 Ohm impedance make this N-Type crimp connector a reliable choice for RG58 coaxial cable assemblies up to 11 GHz.

Overview

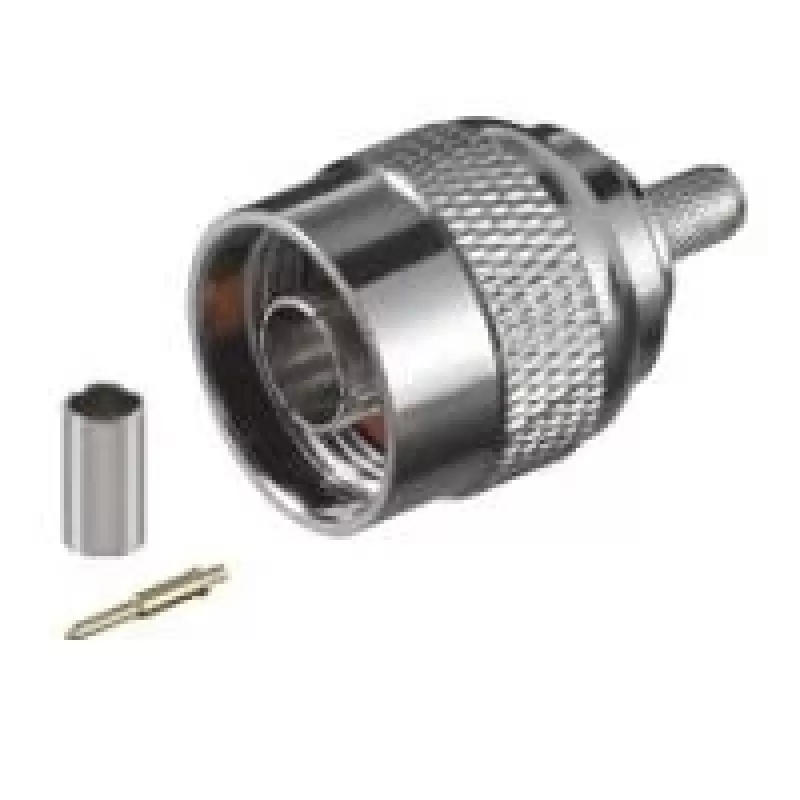

The Wentronic Goobay N-Type male crimp connector is designed for terminating RG58 coaxial cable with a diameter of 5.2 mm. It features a gold-plated center pin for excellent conductivity and corrosion resistance, while the nickel-plated brass body ensures durability and mechanical stability. With a 50 Ohm impedance, it is suitable for a wide range of RF applications including antennas, radio systems, and test equipment.

What stands out

• Gold-plated center contact for low contact resistance and long-term reliability
• Precision crimp termination for secure and repeatable cable attachment
• 50 Ohm impedance matches standard RG58 cable and most RF equipment
• Durable nickel-plated brass body with PTFE insulation
• Wide operating temperature range from -65°C to +165°C

Technical details

• Connector type: N-Type male (plug)
• Termination: Crimp
• Compatible cable: RG58
• Cable diameter: 5.2 mm
• Impedance: 50 Ohm
• Frequency range: DC to 11 GHz
• Body material: Brass, nickel-plated
• Center contact: Gold-plated
• Insulation: PTFE
• Voltage rating: 1500 V RMS
• Durability: 500 mating cycles
• Operating temperature: -65°C to +165°C
• RoHS compliant

Our verdict

A professional-grade N-Type connector that delivers consistent performance for RG58 cable assemblies. The gold-plated pin and robust construction make it a solid choice for demanding RF environments.
