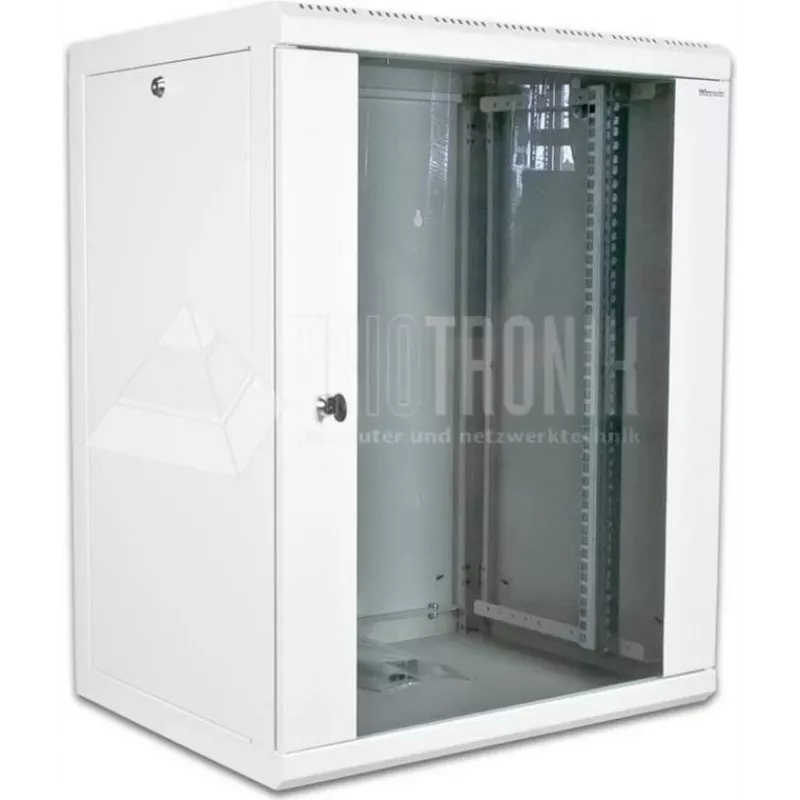

Wirewin WCAB 600X450X18U armário rack 18U autónomo, cinzento

Organizing network and server equipment in a small office or branch location often means dealing with limited floor space and the need for secure, accessible hardware. The SLIM WIREWIN WCAB 600X450X18U is a freestanding 18U rack cabinet that brings order to your IT infrastructure. It stands 600 mm wide and 450 mm deep, fitting into compact areas while providing 18 rack units of 19-inch mounting space.

Who is it for

This cabinet suits small to medium businesses, remote sites, or anyone needing a dedicated enclosure for servers, switches, patch panels, and other rack-mount equipment. Its grey finish and tempered glass front door make it suitable for offices where aesthetics matter, while the lockable doors provide physical security.

Main features

• 18U capacity with adjustable front and rear mounting rails
• 19-inch EIA-310-D compliant mounting
• Tempered glass front door with lock
• Solid steel rear door with lock
• Removable side panels with latches
• Top and bottom cable entry with brush strips
• Fan-ready top panel for active ventilation
• Adjustable leveling feet and heavy-duty castors
• Load capacity up to 600 kg
• Pre-assembled for quick deployment

Specifications

• Rack capacity: 18U
• External width: 600 mm
• External depth: 450 mm
• External height: approx. 900 mm
• Colour: Grey
• Material: SPCC cold rolled steel
• Mounting standard: 19-inch EIA-310-D
• Front door: Tempered glass with lock
• Rear door: Solid steel with lock
• Side panels: Removable with latches
• Load capacity: up to 600 kg
• Cable entry: Top and bottom with brush strips
• Ventilation: Passive, fan-ready top panel
• Adjustable mounting rails: Yes, front and rear
• Feet/castors: Adjustable leveling feet and heavy-duty castors
• IP rating: IP20
• Assembly: Pre-assembled
• Included accessories: Keys, cage nuts, M6 screws

Tips

Place the cabinet on a level surface and use the adjustable feet to stabilize it before loading equipment. For improved airflow, install fans in the top panel if your equipment generates significant heat. Use the brush strips to keep cables tidy and minimize dust ingress.
