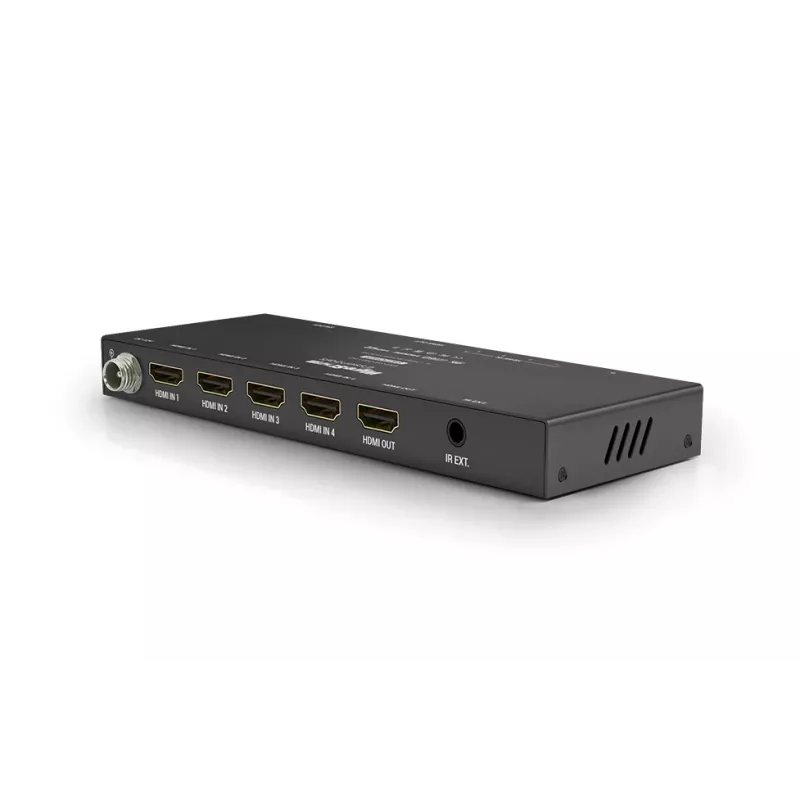

Wyrestorm EXP-SW-0401-H2 Switcher HDMI 2.0 4x1 com USB, 4K60Hz, HDR, 18Gbps

The Wyrestorm EXP-SW-0401-H2 is a professional 4x1 HDMI switcher designed for seamless integration into AV systems. Supporting HDMI 2.0 with 18Gbps bandwidth, it delivers stunning 4K resolution at 60Hz with 4:4:4 chroma subsampling and 12-bit deep color. HDR10, HLG, and Dolby Vision ensure vibrant, lifelike visuals. Built-in USB 2.0 hub (1 input, 2 outputs) allows easy connection of peripherals. Audio breakout via analog stereo (3.5mm) and digital optical (S/PDIF) provides flexible audio routing. Control options include front panel, IR, RS-232, and IP, making it ideal for commercial and residential installations.

Advantages

Experience flawless 4K video with high dynamic range and rich color depth. The integrated USB hub simplifies peripheral sharing, while multiple control interfaces offer versatile system management. EDID management and CEC pass-through ensure compatibility and ease of use.

Suitable for

• Home theater systems requiring multiple HDMI sources
• Conference rooms with shared displays and USB peripherals
• Digital signage and commercial AV installations
• Pro AV setups needing reliable switching and audio extraction

Key specifications

• Product Type: HDMI Switcher
• HDMI Inputs: 4
• HDMI Outputs: 1
• HDMI Standard: HDMI 2.0
• HDCP Compliance: HDCP 2.2
• Maximum Resolution: 4096 x 2160 (4K DCI)
• Maximum Refresh Rate: 60 Hz
• Chroma Subsampling: 4:4:4 (at 4K/60Hz)
• Data Rate: 18 Gbps
• Color Depth Support: 12-bit Deep Color
• HDR Support: HDR10, HLG, Dolby Vision
• USB Connectivity: USB 2.0 (1x Type B input, 2x Type A outputs)
• Audio Breakout: Analog Stereo (3.5mm), Digital Optical (S/PDIF)
• Control Options: Front Panel, IR, RS-232, IP
• EDID Management: Yes
• CEC Pass-through: Yes

Recommendations

For optimal performance, use certified high-speed HDMI cables. The switcher supports 4K@60Hz 4:4:4 up to 7 meters (23 ft) with appropriate cabling. Ensure your sources and display are HDCP 2.2 compliant for full compatibility.
