Tomada de ligação TAE 6 F+N AP ZE Kommunikationstechnik 1-672.01.5.00

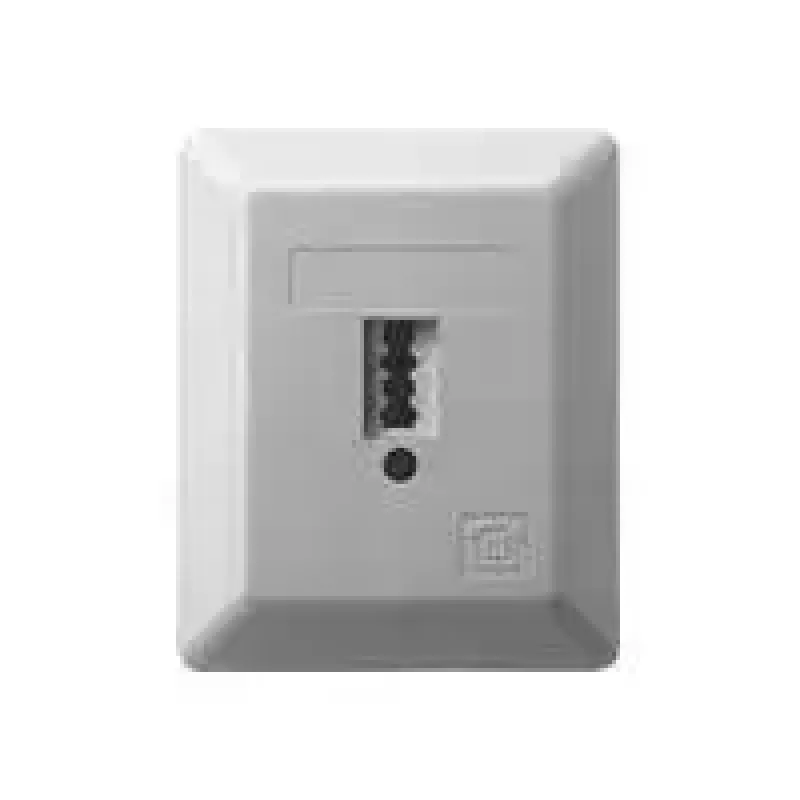

The TAE 6 F+N AP outlet box from Kräcker and ZE Kommunikationstechnik is a surface-mounted connection point for telecommunications wiring. Designed for installation in residential and commercial environments, the compact plastic enclosure houses TAE F and N connectors to provide telephone and modem connections. The unit is built for reliable signal transmission and straightforward mounting on walls or flat surfaces.

Advantages

The enclosure offers a compact footprint and a straightforward mounting concept that simplifies installation without specialized tools. Durable, flame-retardant plastic construction provides mechanical protection for connector contacts and wiring. The design supports stable electrical contact and minimizes signal loss, contributing to dependable voice and data transmission in everyday telecommunication setups.

Suitable for

• Residential telephone and ADSL/VDSL outlet points
• Small office telephony and data connection points
• Retrofit installations where surface mounting is required
• Environments requiring a discrete, low-profile outlet box

Key specifications

• Mounting type: surface-mounted (AP)
• Connector standard: TAE F + N compatible sockets
• Material: durable, flame-retardant plastic housing
• Colour: typically white or light-coloured finish suitable for interior use
• Dimensions: compact footprint suitable for standard wall mounting (refer to technical drawing for exact measurements)
• Installation: screw fixing to flat surfaces; cable entry points for standard telecommunication cables

How to use

Mount the outlet box on a flat wall surface using suitable screws and anchors for the substrate. Route the incoming telecommunication cable into the enclosure through the provided cable entry point, terminate wires on the TAE F and N contacts according to local wiring standards, and secure the connector module in the housing. After termination and mechanical fixation, fit the cover and test the connection with a telephone or modem to verify functionality.

Recommendations

For reliable performance, install the outlet box in a dry, indoor location away from direct heat sources and moisture. Use correctly rated telecommunication cables and ensure terminations follow local wiring codes. Periodically inspect the enclosure and connections for signs of wear or damage, and tighten mounting screws if necessary after initial installation.
