Acessório de montagem para câmara de vigilância Axis 5507-591

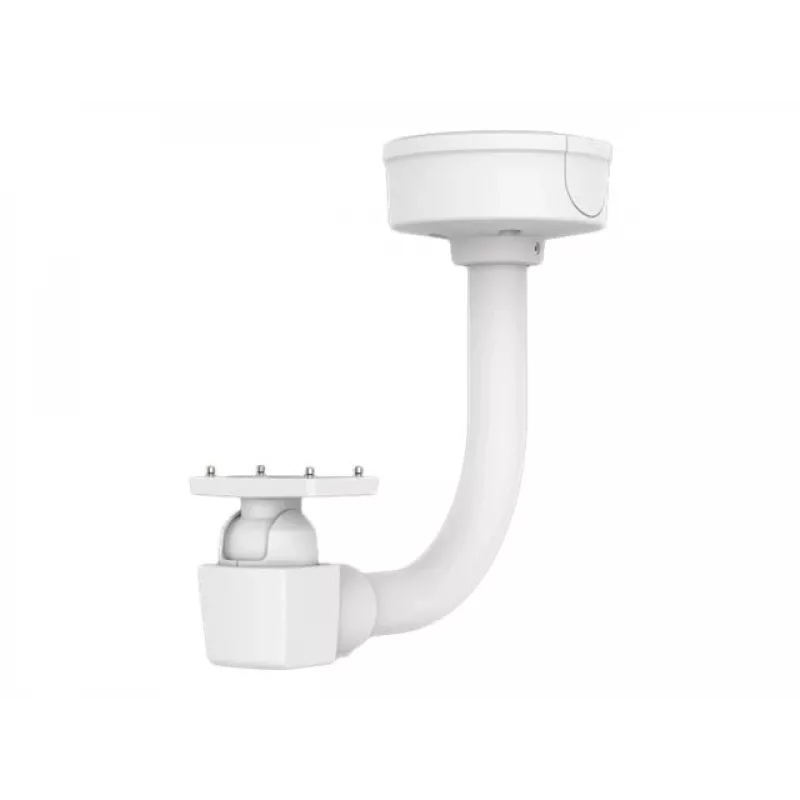

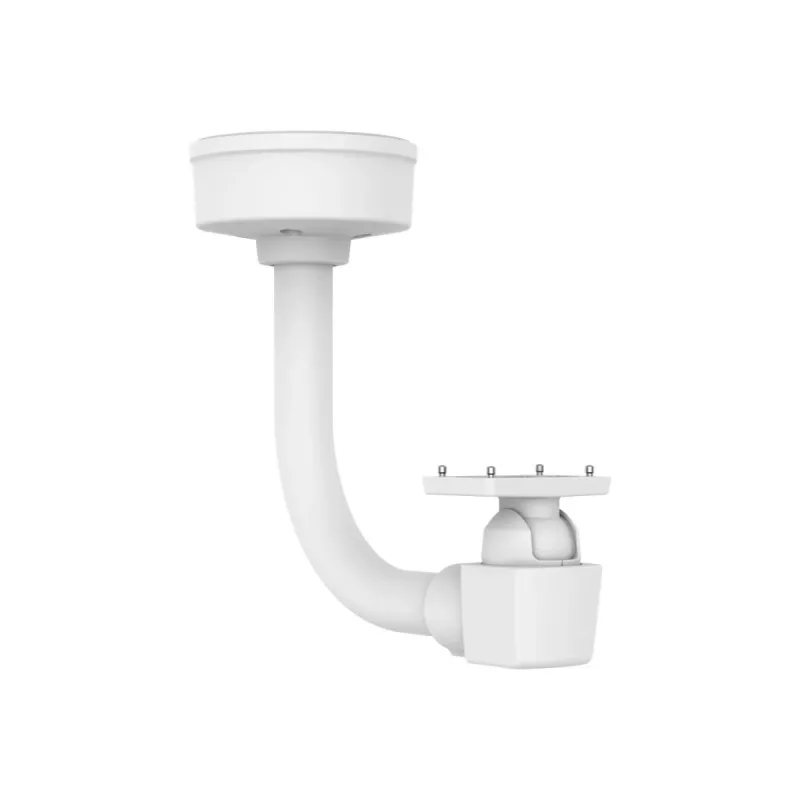

The powder-coated aluminum AXIS T94Q01F / Mount Axis 5507-591 Ceiling-and-Column Mount is a universal accessory for mounting fixed security cameras under ceilings, soffits and canopies or on columns, poles and parapets. It provides a protected cable route through the mount and a swivel arm for easy re-direction and maintenance, keeping the cable hidden from weather and tampering. The mount is white, supports camera weights up to 5 kg and has a tilt range from -65° to 25° with dimensions of approximately 271 mm (W) x 129.7 mm (D) x 300.4 mm (H).

Advantages

The aluminum construction with powder coating offers corrosion resistance and a clean appearance. Internal cable routing prevents exposure to weather and vandalism, while the swivel arm simplifies repositioning and maintenance. The mount’s universal design allows both ceiling/soffit and column/parapet installations, enabling flexible placement for fixed Axis camera housings.

Suitable for

• Mounting fixed Axis cameras under ceilings, soffits and canopies

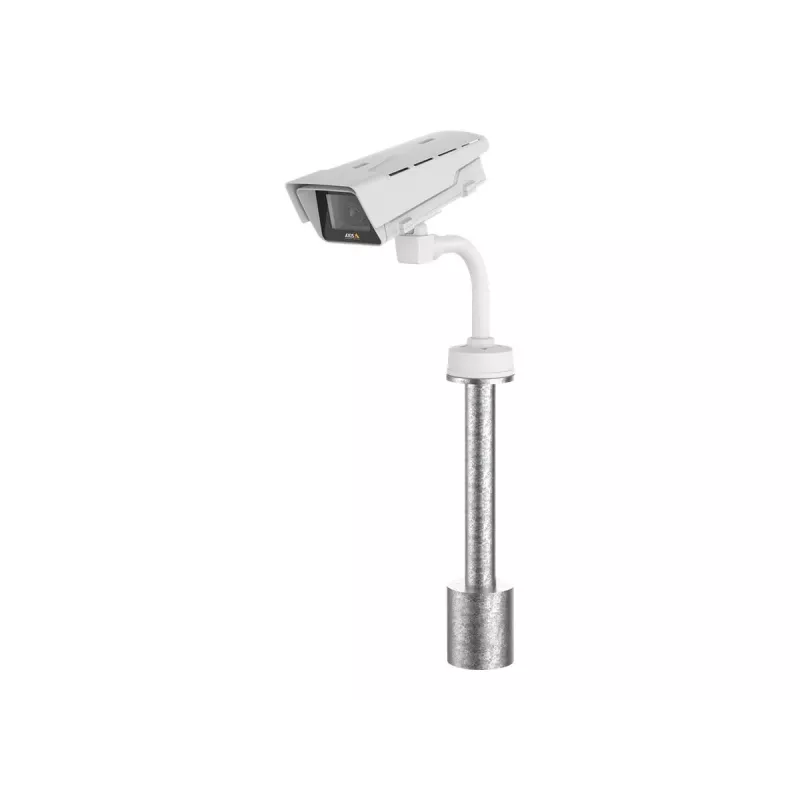

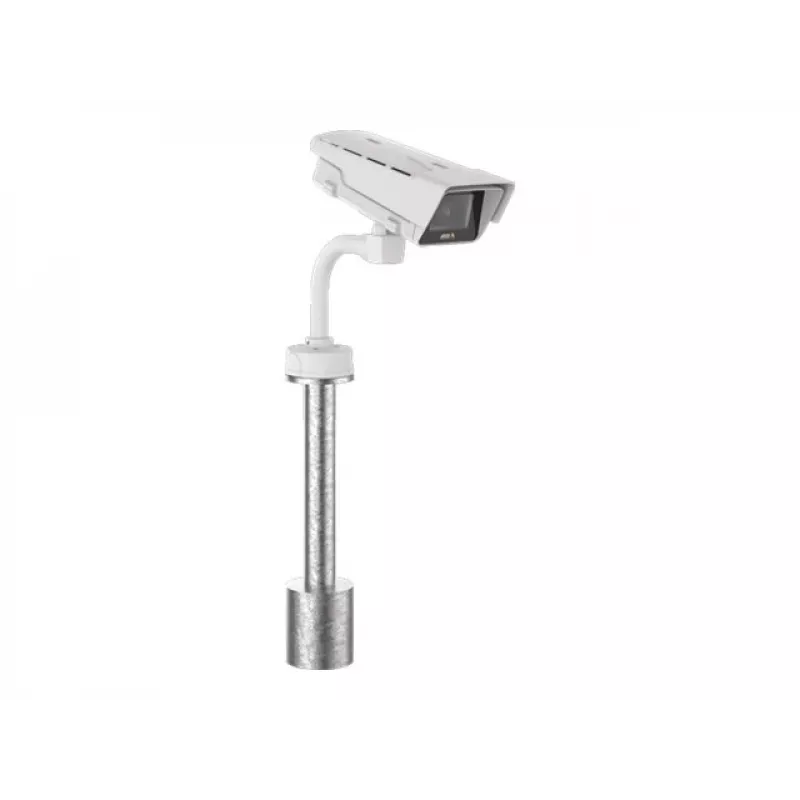

• Mounting on column, pole tops and parapets
• Installations requiring protected internal cable routing
• Indoor and outdoor surveillance where a tilt range of -65° to 25° is needed

Key specifications

• Model: AXIS T94Q01F / Axis 5507-591
• Material: Powder-coated aluminum
• Color: White
• Maximum supported camera weight: 5 kg
• Tilt range: -65° to 25°
• Dimensions (W x D x H): 271 mm x 129.7 mm x 300.4 mm
• Conduit compatibility: uses cable conduits and Axis conduit adapters (3/4” dimension) for side routing
• MPN: 5507-591, EAN: 7331021054424

How to use

Attach the mount to a solid ceiling, soffit, canopy, column top or parapet using appropriate fasteners for the mounting surface. Route the camera cable through the pipe inside the mount to keep it protected. Use the swivel arm to set the desired orientation and the tilt adjustment (‑65° to 25°) to position the camera. If routing cable from the side, install a compatible cable conduit and Axis conduit adapter (3/4”) to ensure sealed protection.

Recommendations

Use corrosion-resistant fasteners suitable for the installation surface and follow local mounting and electrical codes. Verify that the combined weight of the camera and housing does not exceed the 5 kg limit and test the camera orientation after installation to confirm the desired field of view.
