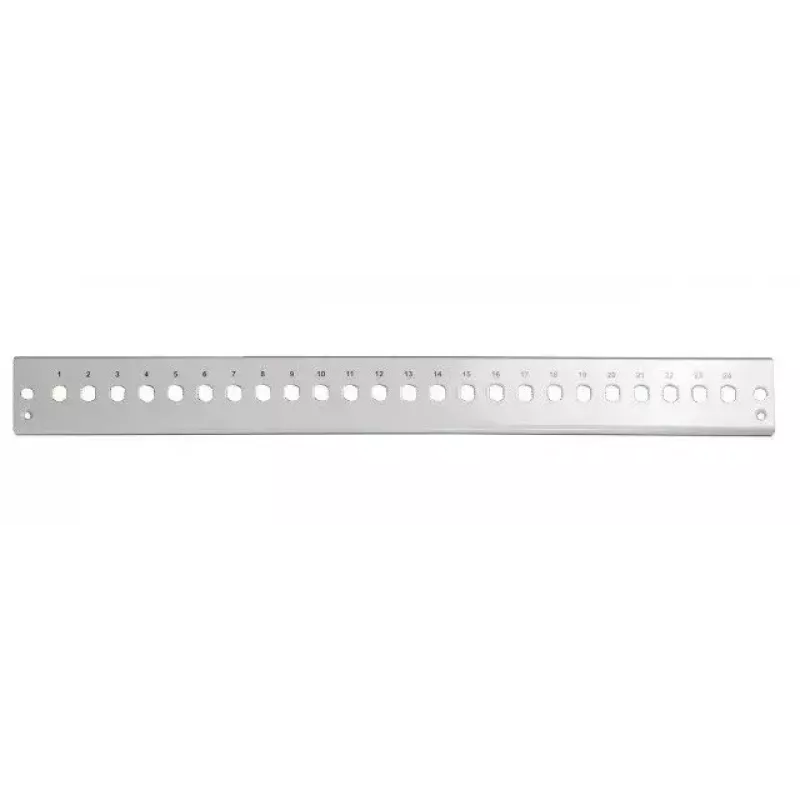

Acessório para patch panel EFB Elektronik VSB-FP-24ST – montagem em rack, 1HE, fibra ótica

EFB Elektronik VSB-FP-24ST is a 1U rack-mount front panel accessory designed for fiber cable management. The panel provides ST/FC (D-hole) breakouts to suit standard 1U splice and breakout boxes and accepts up to 24 ST connectors for organized fiber termination in rack installations.

Advantages

The VSB-FP-24ST offers a compact 1U form factor for efficient rack use, standardized ST/FC D-hole cutouts for compatibility with common splice and breakout boxes, and straightforward mounting to typical rack systems. Its design helps keep fiber terminations accessible and organized while maintaining compatibility with fiber cable types used in rack environments.

Suitable for

• Data center fiber termination points
• Telecommunications and network equipment racks
• Patch panels and splice box integrations
• Environments requiring ST or FC connector breakouts

Key specifications

• Brand: EFB Elektronik
• Model / MPN: VSB-FP-24ST
• EAN: 4049759228460
• Rack capacity: 1U
• Mounting: Rack mounting
• Connector cutouts: ST/FC (D-hole) breakouts
• Cable type: Fiber

How to use

Install the VSB-FP-24ST into a standard 19" rack occupying 1U of space. Route fiber cables through the rack and secure them to splice or breakout boxes behind the panel. Terminate fibers into the ST or FC connectors using appropriate adapters or pigtails, ensuring proper strain relief and bend radius management. Fasten the panel to the rack rails with compatible screws and verify connector alignment with the downstream equipment.

Recommendations

Use with standard 1U splice or breakout boxes and follow fiber handling best practices: maintain minimum bend radius, provide strain relief for pigtails, and label connections for future maintenance. Confirm compatibility of ST or FC connectors with your existing cabling and patching hardware before installation.
