Acessórios de computador InLine 10101A, modelo 10101A

Compact solution for limited space:Ideal for wall mounting in confined spaces, e.g., in equipment rooms or secondary distribution boards.
Sturdy metal construction:Made of 1.5 mm thick SPCC steel with a robust black powder coating (RAL9005).
Easy installation:Includes mounting kit with screws, dowels, and M6 cage nuts for secure fastening.
Suitable for 10" components:Suitable for patch panels, mini switches, or small network modules.
Load capacity up to 10 kg:The sturdy design allows for reliable mounting of lightweight active or passive components.

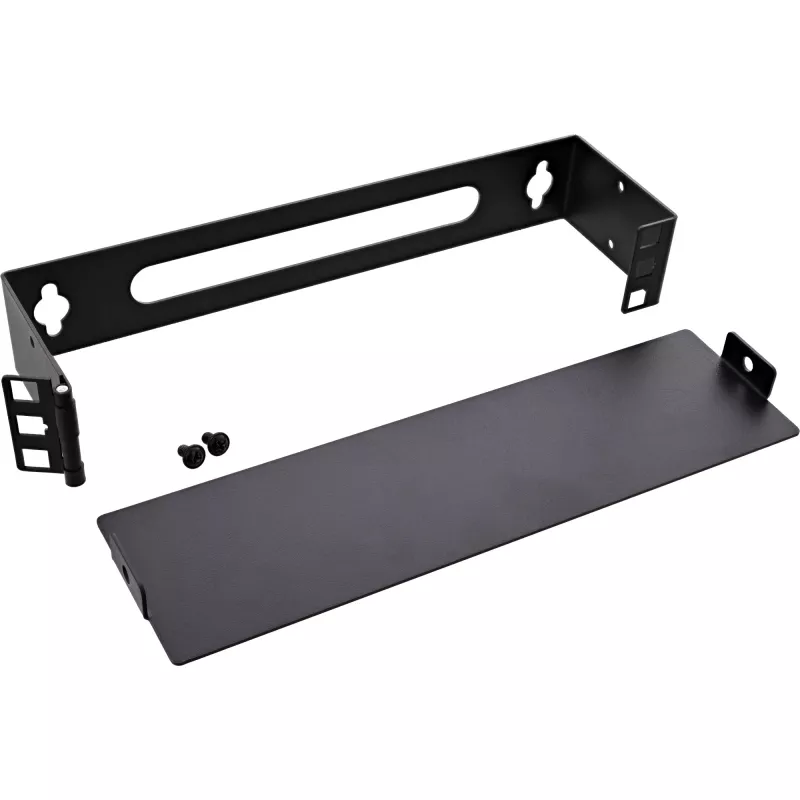

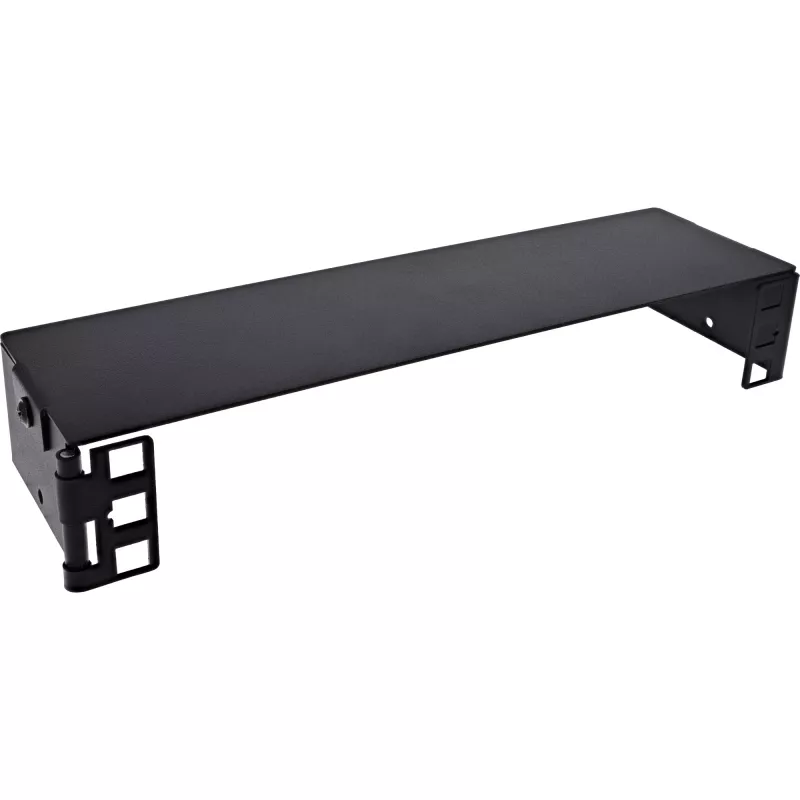

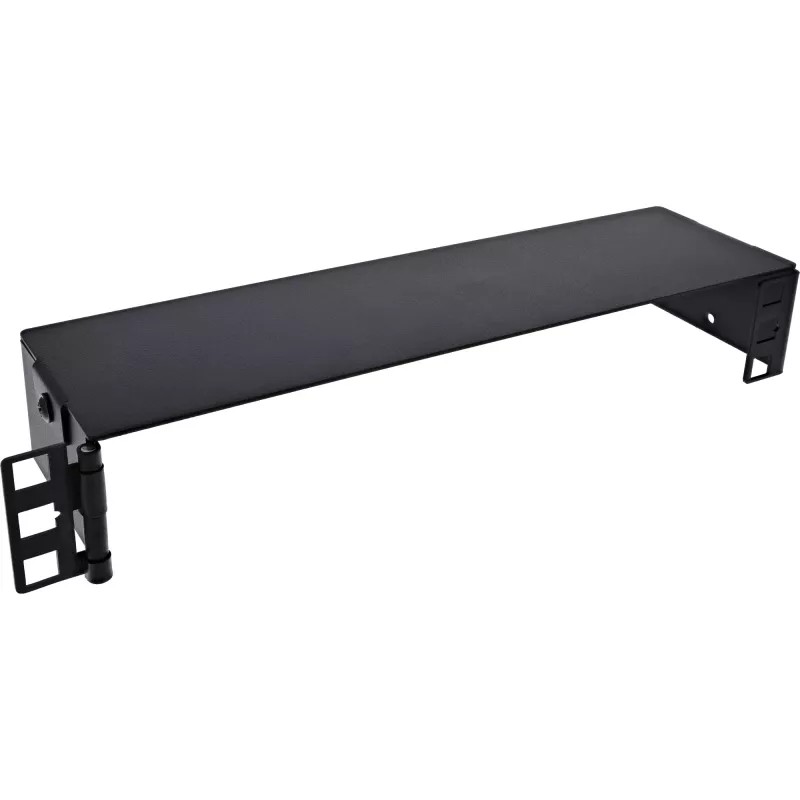

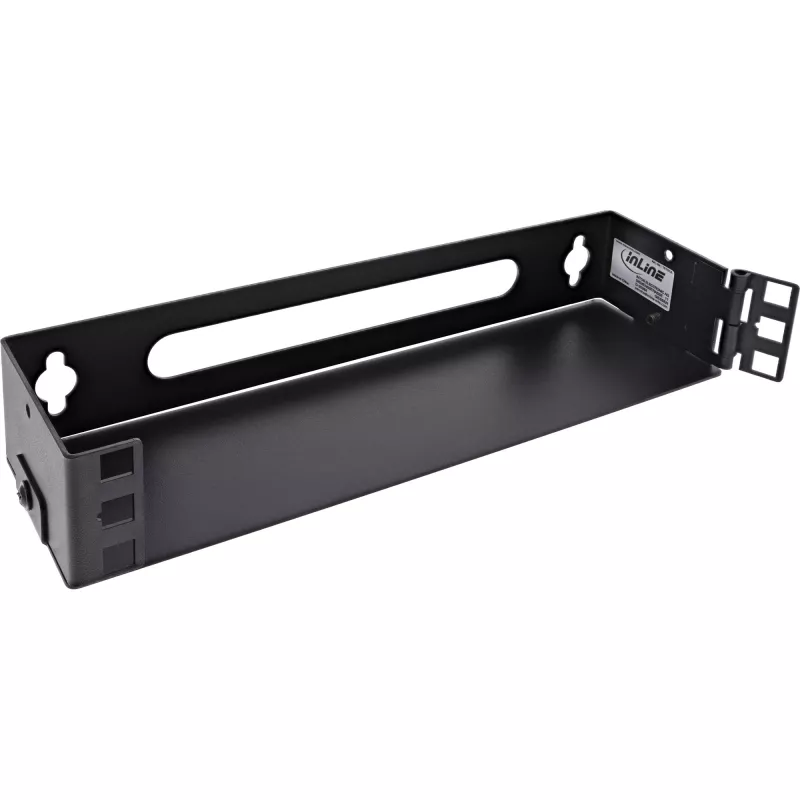

The InLine® mini rack for wall mounting with 10" format, 1U height and a depth of 7.6 cm is the space-saving solution for small network or technical installations. It is particularly suitable for locations with limited space, such as small technical rooms, workshops or secondary distribution boards.
Made of 1.5 mm thick SPCC sheet steel and coated with black powder paint (RAL9005), the housing impresses with its stability and durability. Installation is quick and easy – the necessary accessories are included in the scope of delivery: screws, dowels, and four M6 cage nuts with matching screws.
The rack is suitable for standard 10" devices such as patch panels, mini switches, or small control components. With a load capacity of up to 10 kg, it enables secure wall mounting even in confined spaces. The flat design with a depth of 7.6 cm offers a particularly discreet installation for applications with shallow installation depths.

Format: 10"
Height unit: 1U
Housing depth: 7.6 cm
Material: SPCC steel, 1.5 mm
Color: Black, RAL9005
Load capacity: static up to 10 kg
Mounting material included: 4x cage nuts M6, 2x screws 6x40 mm, 2x dowels M8x40

InLine 10101A. Type: Shelf, Housing material: SPCC, Steel, Product colour: Black. Weight: 414 g

How to use

Position the mini rack on the chosen wall surface, mark mounting points, and fix the enclosure using the supplied screws and dowels. Install 10" components (patch panels, mini switches or small modules) into the rack using the provided M6 cage nuts and screws. Ensure cable routing and strain relief are arranged so that inserted devices are not stressed by cable weight or bending.

Recommendations

Install on a solid wall surface and keep total mounted weight below the specified 10 kg limit. Allow sufficient clearance for cable access and ventilation of any active equipment. For installations in humid or corrosive environments consider additional protective measures.
