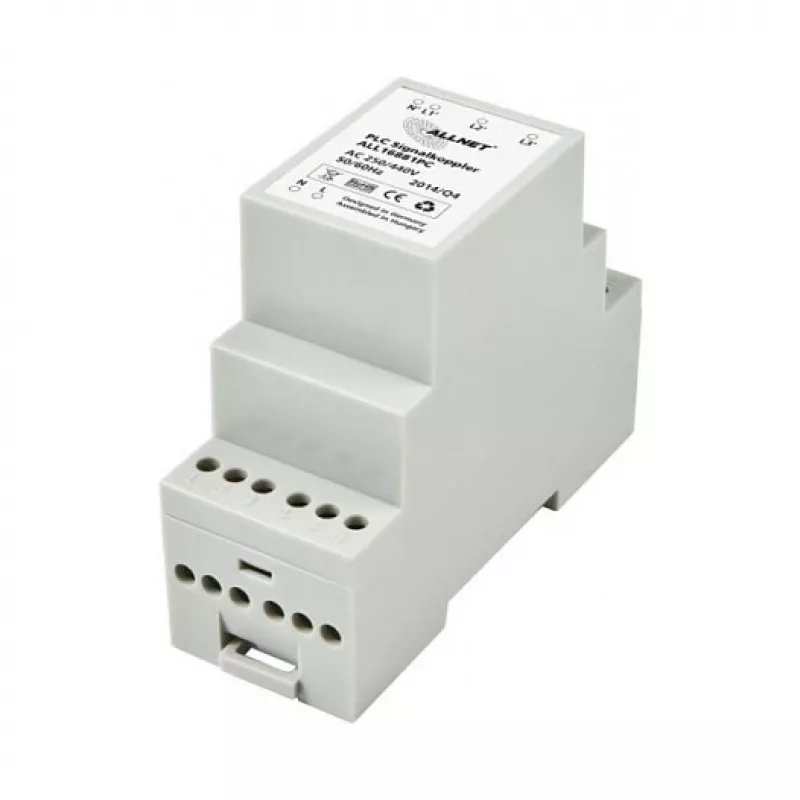

Acoplador de fase Powerline ALLNET ALL16881PC / ponte de sinal RCD para sistemas trifásicos, montagem em calha DIN, 4 TE, 230/400V AC

Bridge powerline signals across all three phases and over residual-current devices with the ALLNET ALL16881PC. This passive coupler operates at 230/400V AC and mounts on a DIN rail in just 4 TE, making it a compact solution for whole-building powerline networks.

Overview

The ALL16881PC is a phase coupler and RCD signal bridge designed for three-phase electrical installations. It connects L1, L2, L3, and N via screw terminals, ensuring powerline communication signals reach every circuit even when RCDs are present. The device is passive, requiring no power supply, and is built for universal powerline standards such as HomePlug AV and G.hn.

What stands out

• Couples powerline signals across all three phases
• Bridges signals over RCDs (FI-Schutzschalter) that would otherwise block them
• Passive design – no power consumption
• Compact DIN rail mount, only 4 TE wide
• Supports 230/400V AC, 50/60 Hz

Technical details

• Product type: Powerline Phase Coupler / RCD Signal Bridge
• Application: 3-phase electrical systems
• Supported phases: L1, L2, L3, N
• Installation: DIN rail mount (Hutschiene), 4 TE
• Connection: Screw terminals
• Operating voltage: 230/400V AC
• Mains frequency: 50/60 Hz
• Signal compatibility: Universal (HomePlug AV, G.hn)
• Operating temperature: 0°C to 40°C
• Storage temperature: -20°C to 70°C
• Operating humidity: 10% to 90% non-condensing
• Housing material: Plastic
• Colour: Grey/White
• Protection class: IP20
• Device type: Passive

Our verdict

A reliable, no-fuss solution for extending powerline networks across three-phase installations and RCD-protected circuits. Its passive design and DIN rail mounting make it easy to integrate into any distribution board.
