Adaptador angular F SHIVERPEAKS S/CONN Maximum Connectivity, ficha rápida F para conector fêmea F (85210-QUICK)

Experience a return loss of over 20 dB across the entire 0–2400 MHz spectrum with this 75-ohm F-type right-angle adapter. The nickel-plated brass construction and quick-connect F male plug ensure a secure, low-loss link for satellite, cable TV, and terrestrial signals without the need for threading.

Overview

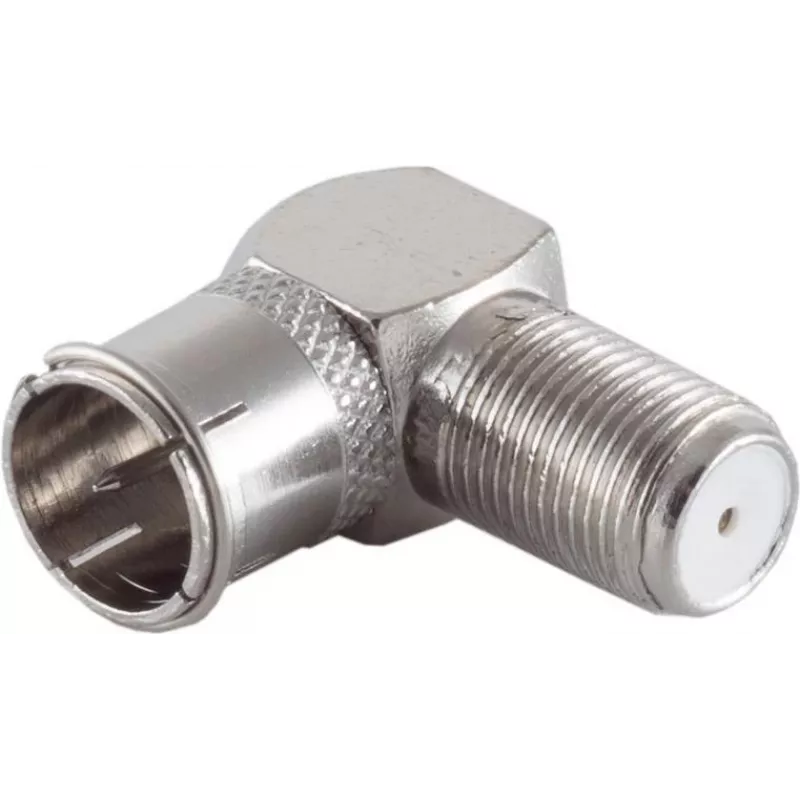

The SHIVERPEAKS 85210-QUICK is a precision-engineered F-type angle adapter designed to solve tight-space connection challenges in coaxial installations. It features a quick-connect F male plug on one end and a standard F female socket on the other, allowing a 90-degree bend to route cables neatly behind wall-mounted TVs, set-top boxes, or distribution panels. The adapter maintains a characteristic impedance of 75 ohms and supports frequencies from DC to 2400 MHz, covering DVB-S, DVB-C, DVB-T, and radio applications.

What stands out

• Quick-connect F male plug: push-on design eliminates screw-on effort, ideal for confined spaces.
• 90-degree angle: reduces cable strain and enables flush mounting in tight corners.
• Superior shielding: >90 dB shielding factor prevents ingress of interference.
• Low insertion loss: <0.5 dB ensures minimal signal degradation.
• Durable build: nickel-plated brass body resists corrosion and wear.
• Wide temperature range: operates reliably from -20°C to +70°C.

Technical details

• Connector A: F-Quick male (push-on)
• Connector B: F female (threaded)
• Adapter type: Right-angle (90°)
• Impedance: 75 Ω
• Frequency range: 0 – 2400 MHz
• Return loss: >20 dB
• Insertion loss: <0.5 dB
• Shielding factor: >90 dB
• Material: Nickel-plated brass
• Colour: Silver
• Operating temperature: -20°C to +70°C
• RoHS compliant: Yes
• Packaging: Bulk / Polybag

Our verdict

With its quick-connect mechanism and robust signal integrity, this adapter is a practical solution for professional installers and DIY enthusiasts alike. The right-angle design is a game-changer for installations where space is at a premium, and the high shielding factor ensures clean signal transmission even in noisy environments.
