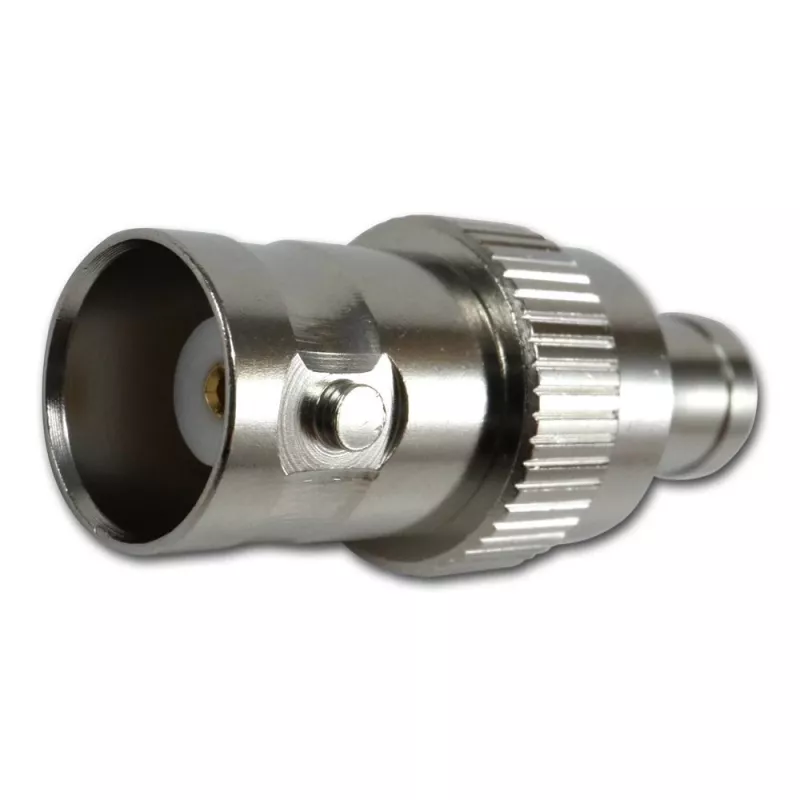

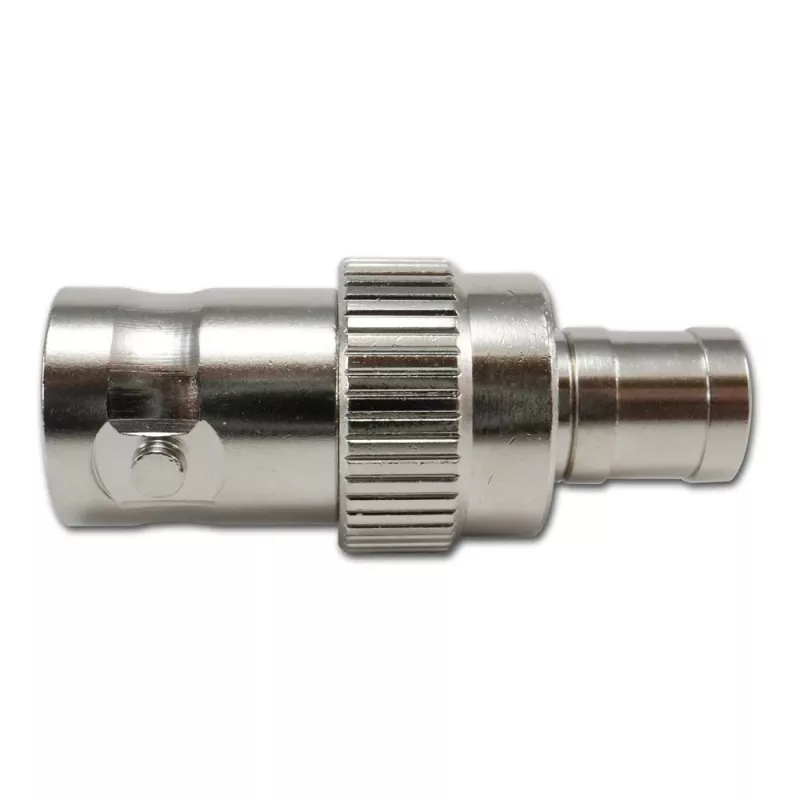

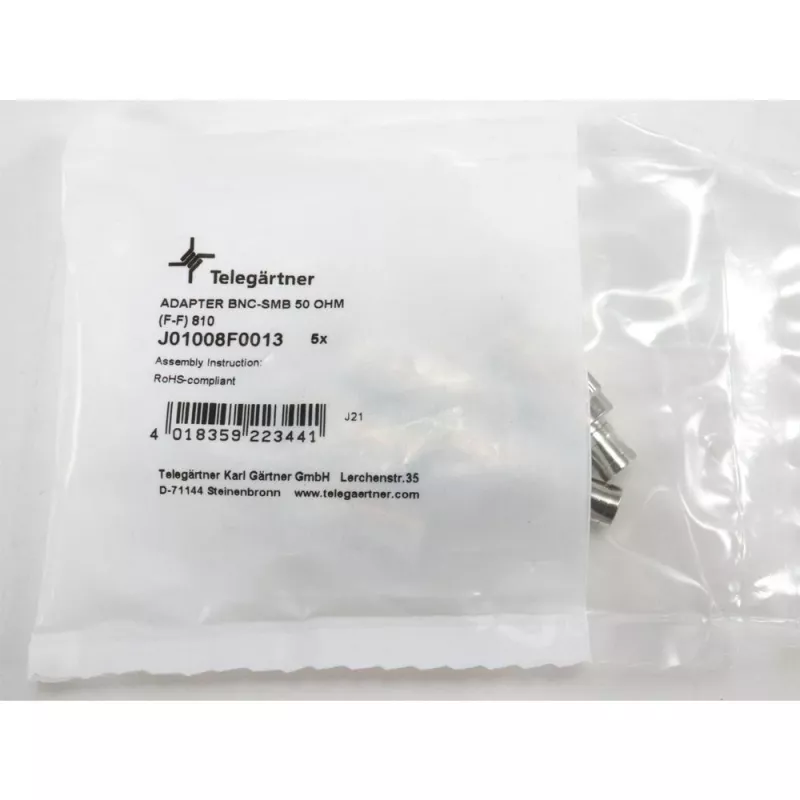

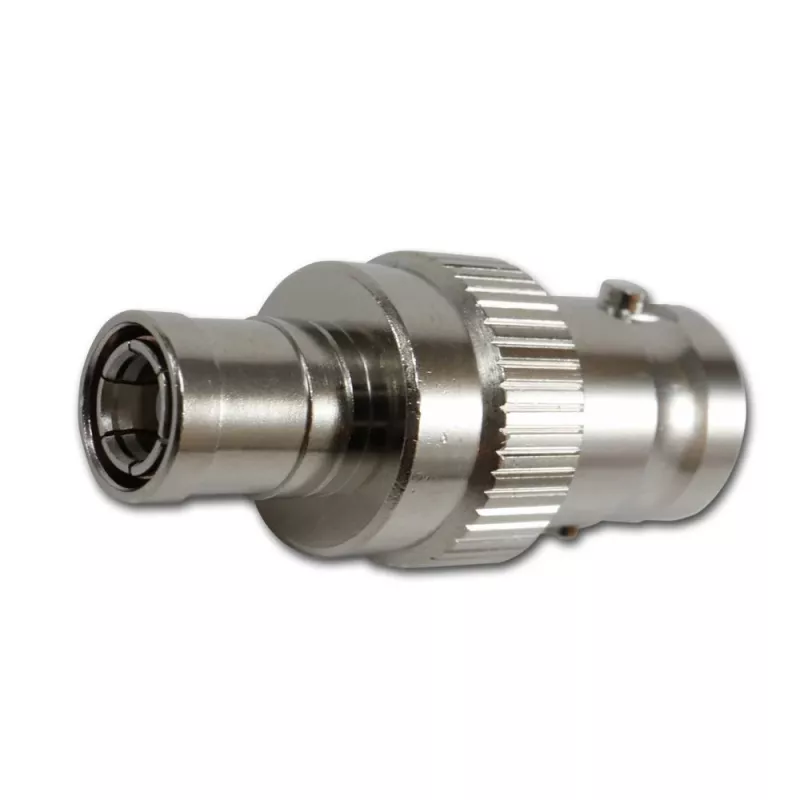

Adaptador coaxial TELEGÄRTNER BNC fêmea para SMB fêmea, 50 Ohm, reto, latão niquelado, contactos dourados J01008F0013

Connect a BNC plug to an SMB plug without replacing cables or equipment. This inline adapter links two 50-ohm coaxial lines in tight spaces where a direct connection is impossible.

Who is it for

RF technicians, test engineers and network installers who need a reliable, compact transition between BNC and SMB interfaces in instrumentation, telecommunications or broadcast setups.

Main features

• BNC female (jack) to SMB female (jack), straight body
• 50 Ω impedance, DC to 4 GHz frequency range
• Nickel-plated brass body, gold-plated beryllium copper contacts
• PTFE insulator, ≥500 mating cycles
• Operating temperature -40 °C to +85 °C

Specifications

• Connector 1: BNC female
• Connector 2: SMB female
• Impedance: 50 Ω
• Frequency range: DC – 4 GHz
• Body material: Brass, nickel-plated
• Contact material: Beryllium copper, gold-plated
• Insulator: PTFE
• Dielectric withstanding voltage: 1500 Veff
• Insulation resistance: ≥5 GΩ
• Mating cycles: ≥500

Tips

For best signal integrity, ensure both mating connectors are clean and fully seated. The SMB side provides a snap-on coupling; the BNC side uses a bayonet lock.
