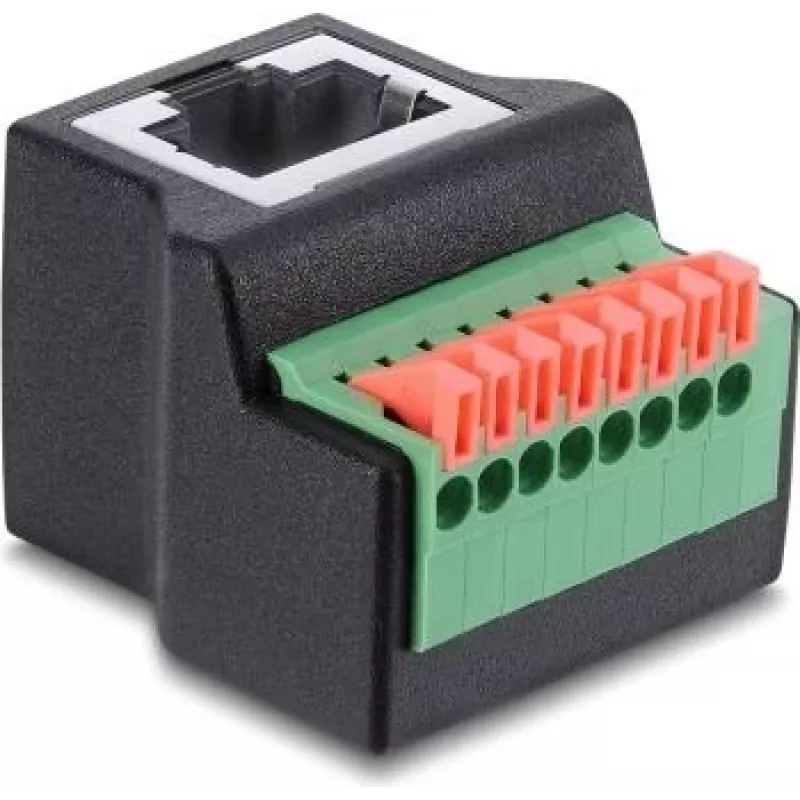

Adaptador Delock tomada RJ45 para barra de terminais de 8 polos, 90° angular, botão de pressão, preto

In industrial control panels, prototyping labs, and DIY network installations, terminating solid or stranded Ethernet cables without crimping tools can be a challenge. This Delock adapter solves that by converting a standard RJ45 jack into an 8-position screwless terminal block, angled 90 degrees for tight spaces. Simply press the orange buttons, insert wires from 26 to 18 AWG, and release for a secure, tool-free connection. The 1:1 pin assignment ensures straightforward wiring for custom cable assemblies or field repairs.

Key specifications

• Connector A: RJ45 female (8P8C)
• Connector B: 8-pin terminal block with push button (screwless)
• Orientation: 90° angled for space-saving installation
• Pin assignment: 1:1 (straight-through)
• Supported wire gauge: 26 - 18 AWG
• Housing material: plastic, black
• Mounting type: free hanging
• Tool-less connection: yes

Why choose it

No special crimping tools are needed, making it ideal for quick prototyping, repairs, or installations in confined areas. The push-button terminals accept both solid and stranded wires, and the angled design reduces strain on the cable. Its passive design ensures no signal degradation, preserving network performance.

Ideal use cases

• Industrial machinery and control cabinets
• Custom-length Ethernet cable assembly
• DIY home networking and smart home projects
• Field repairs where crimping is impractical
• Test and measurement setups

Good to know

The terminal block is rated for 26 to 18 AWG wire, covering most common Ethernet cable gauges. The 90° angle allows the cable to exit parallel to the panel, saving vertical space. As a passive adapter, it works with standard Ethernet speeds up to Gigabit and beyond, depending on cable quality and length.
