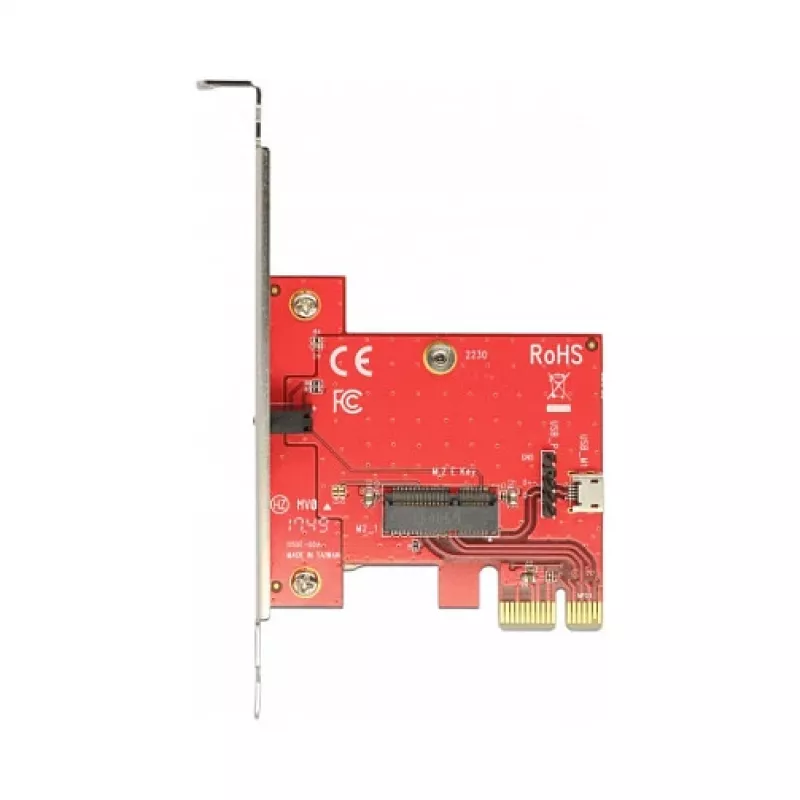

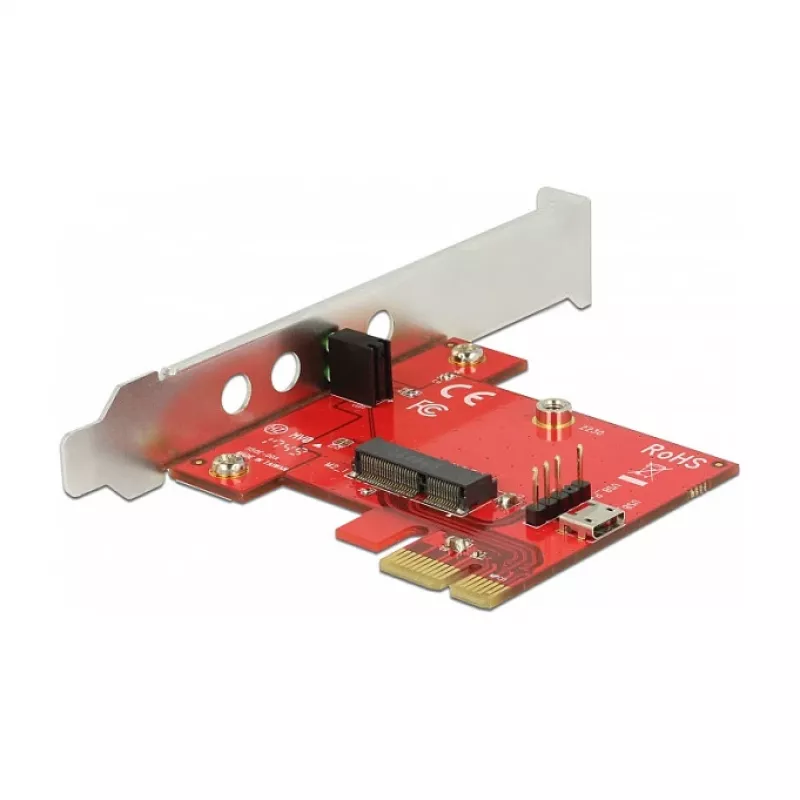

Adaptador M.2 interno DeLOCK 89889

The DeLOCK 89889 internal M.2 adapter adds one M.2 Key E slot to a desktop PC via a PCI Express x1 card. It provides a 67-pin M.2 Key E connector compatible with modules that use PCIe and USB signals, and offers both a USB 2.0 Micro-B port and a USB 2.0 pin header for system connection. Typical installable modules include WLAN, Bluetooth, GNSS, 3G/HSPA and NFC, and modules combining multiple functions (for example WLAN + Bluetooth) can use both interfaces when supported.

Advantages

This adapter expands system functionality by providing an internal M.2 Key E slot while occupying a single PCIe x1 slot. It supports modules with PCIe and USB signalling and includes onboard USB connections for modules that require USB. The compact internal design allows installation in standard desktop systems without external cabling. Manufactured in Taiwan, the adapter follows standard M.2 Key E pinout for broad module compatibility.

Suitable for

Key specifications

How to use

Install the card into an available PCI Express x1 slot on the motherboard and secure it to the chassis. Insert a compatible M.2 Key E (Key A/E) module into the M.2 socket at the correct angle and fasten it with the mounting screw provided by your chassis or module. If the inserted module requires USB connectivity, connect the system to the adapter's USB 2.0 Micro-B port or the onboard USB 2.0 header as appropriate. After hardware installation, power on the system and install any required drivers for the M.2 module according to the module manufacturer's instructions.

Recommendations

Before installation, verify that the chosen M.2 module conforms to Key E/A pinout and that your operating system has driver support for the module. Ensure the PCIe x1 slot and available internal USB header or external USB connection are not occupied by other devices to guarantee proper functionality.
