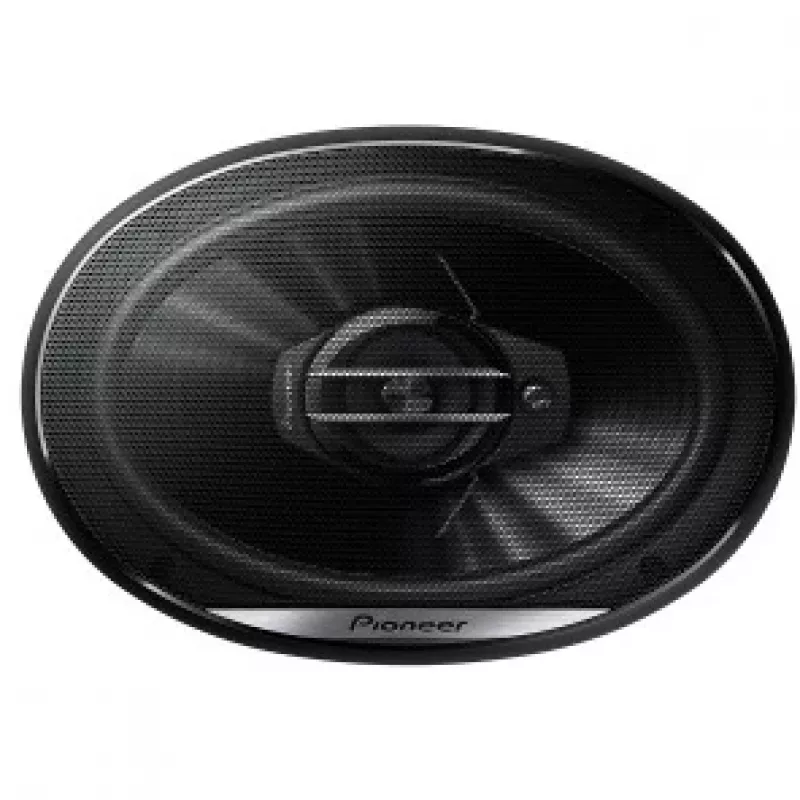

Altifalante de automóvel oval de 2 vias Pioneer TS-G6930F 400 W

The Pioneer TS-G6930F Oval 2-way 400 W is a car speaker designed to deliver clear midrange and extended low-frequency response in a compact 6 x 9 inch format. With a rated power of 45 W and peak handling up to 400 W, this 2-way speaker uses a coaxial driver arrangement to reproduce vocals and instruments with improved clarity while providing substantial bass presence for a fuller in-car sound. Its shallow mounting depth of 70 mm and a weight of 720 g make it suitable for a range of factory and aftermarket mounting locations.

Advantages

The speaker’s 2-way design separates the tweeter and woofer functions to reduce distortion and improve detail in the high and mid frequencies. The oval 6 x 9" shape increases cone area for stronger low-frequency output compared with typical round speakers of similar depth. A rated power of 45 W ensures stable continuous operation under normal listening conditions while the higher peak power handling provides headroom for dynamic passages. The relatively shallow mounting depth simplifies installation in many vehicles without extensive modifications.

Suitable for

• Replacing worn or damaged factory 6 x 9 in speakers
• Upgrading midrange and bass response in compact audio systems
• Installation in rear deck, door panels, or custom enclosures where 6 x 9" speakers fit
• Use with factory or aftermarket head units and compatible amplifiers

Key specifications

• Speaker type: 2-way coaxial car speaker
• Size: 6 x 9 inches (oval)
• Rated power (RMS): 45 W
• Peak power: 400 W
• Mounting depth: 70 mm
• Weight: 720 g
• Configuration: woofer with integrated tweeter

How to use

Install the Pioneer TS-G6930F by matching the speaker to a compatible 6 x 9 inch mounting location in the vehicle. Ensure the vehicle’s wiring polarity is correct and, when possible, use appropriate connectors or soldered joints for secure electrical connections. If using with an external amplifier, set gain and crossover settings according to the amplifier manufacturer’s guidance to avoid clipping. After installation, test at low volume first and gradually increase listening level while checking for rattles, unwanted vibrations, or distortion; adjust mounting or add damping materials if necessary.

Recommendations

For optimal performance, pair the speaker with a compatible head unit or amplifier that provides adequate power without exceeding the rated continuous power. Use sound-deadening material around the mounting area to reduce panel vibrations and improve perceived bass response. Regularly inspect mounting hardware and wiring for secure fitment.
