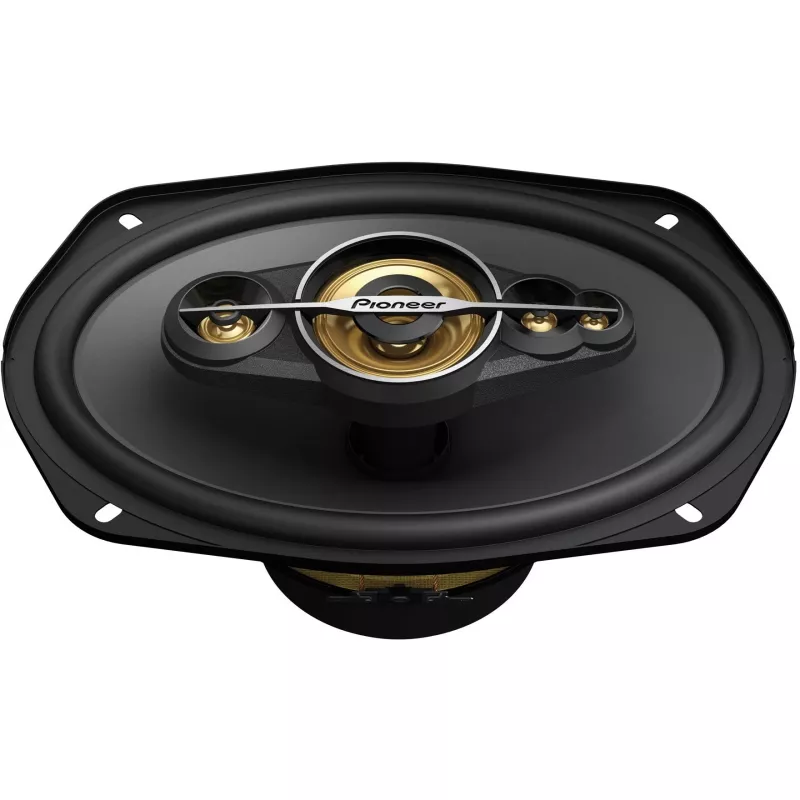

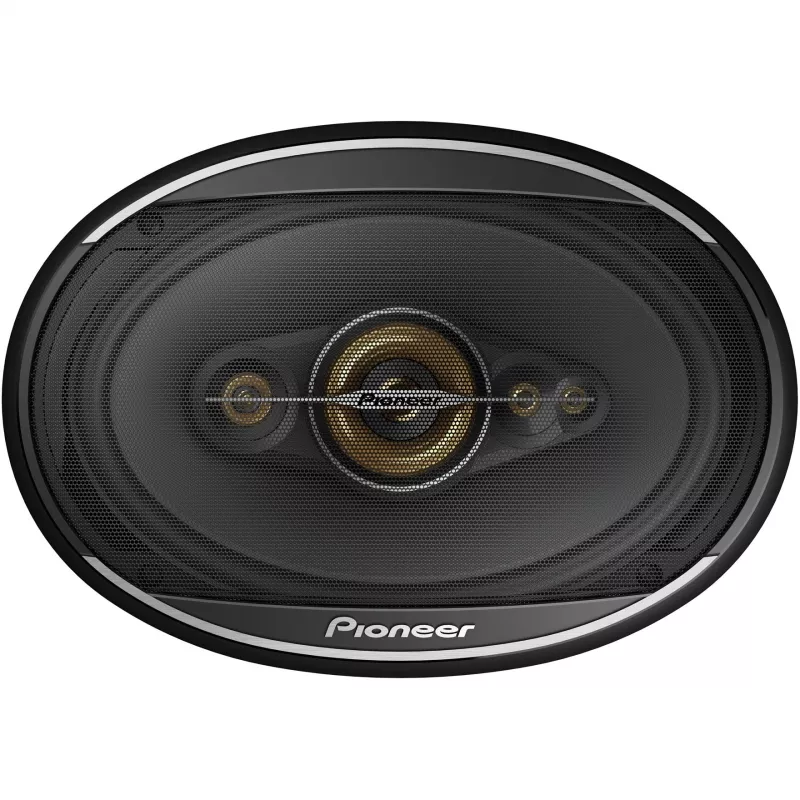

Altifalantes para automóvel Pioneer TS-A6980F ovais 4 vias 650 W

The Pioneer TS-A6980F Oval 4-way car speaker delivers a balanced audio performance designed for in-vehicle use. With a peak power handling of 650 W and a nominal (RMS) power rating of 100 W, this 4-way speaker system combines multiple drivers in a single oval frame to reproduce a wide frequency range. Its compact mounting depth of 8.6 cm and a mounting hole diameter of 15.5 cm enable installation in a variety of factory or custom speaker locations. At 1.43 kg, the unit is engineered for straightforward fitment while providing improved clarity and dynamics compared with basic factory speakers.

Advantages

The 4-way design integrates distinct voice coils and diaphragms to cover low, mid and high frequencies with reduced distortion, improving overall tonal balance. A peak power rating of 650 W provides headroom for dynamic passages, while the 100 W rated power reflects reliable continuous performance. Shallow mounting depth and specified mounting hole diameter simplify retrofit installations in many vehicle doors and rear decks. The speaker's construction focuses on durability and consistent sound reproduction under typical automotive conditions.

Suitable for

• Replacing factory oval speakers in doors or rear decks
• Upgrading mid-range car audio systems for clearer vocals and instruments
• Integration into sound systems where limited mounting depth is required
• Use in vehicles where a compact 4-way speaker improves frequency coverage without external crossovers

Key specifications

• Configuration: 4-way oval speaker
• Peak power: 650 W
• Rated (nominal) power: 100 W
• Mounting depth: 8.6 cm
• Mounting hole diameter: 15.5 cm
• Weight: 1.43 kg

How to use

Install the Pioneer TS-A6980F in a compatible vehicle speaker opening using standard speaker mounting hardware. Ensure the mounting hole diameter and available depth match the specified dimensions before fitting. Observe correct polarity for left/right channels and secure wiring to the vehicle's audio harness or aftermarket amplifier outputs. After mechanical installation, perform basic audio level adjustments from the head unit or amplifier, and allow a short break-in period for the speaker components to settle for optimal tonal balance.

Recommendations

For best results, pair this 4-way speaker with properly set crossovers or an audio system that provides appropriate frequency division and power within the rated limits. Avoid driving the speaker at sustained distortion or power levels significantly above the rated 100 W RMS to maintain longevity. Confirm vehicle clearance and mounting depth before purchase to ensure proper fitment.
