Antena DeLOCK 12710

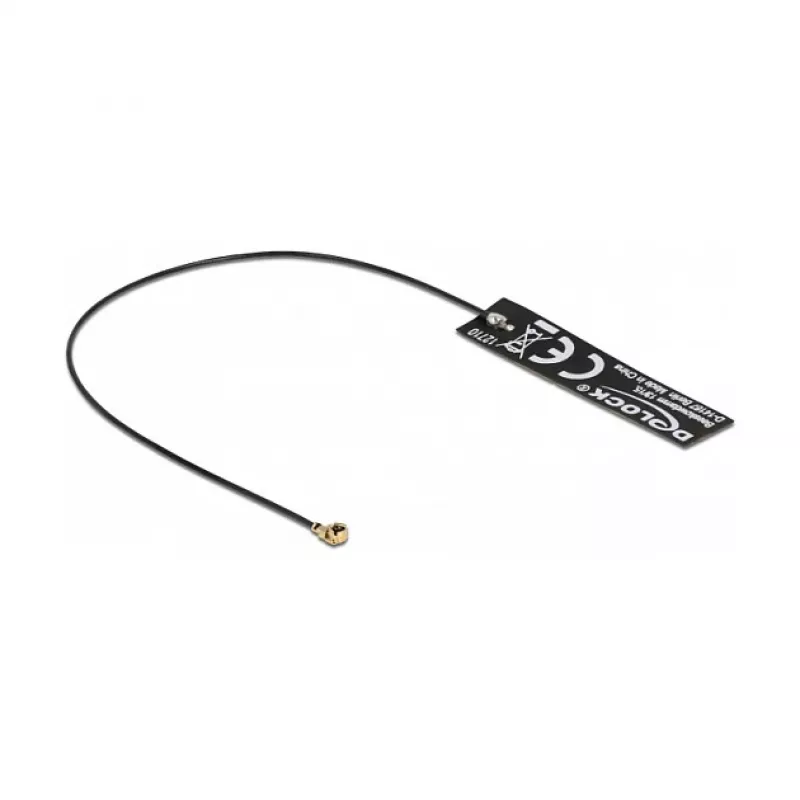

The DeLOCK 12710 antenna is designed for GNSS receivers and can receive BEIDOU, GALILEO, GLONASS and GPS satellite signals simultaneously. It operates on the GNSS frequencies 1.575 GHz, 1.602 GHz, 1.176 GHz and 1.227 GHz, features a maximum gain of 2 dBi and comes in a black finish. The antenna uses an MHF connector (female) for connection to compatible devices.

Advantages

The antenna supports multiple global navigation satellite systems at the same time, providing consistent signal reception across the listed GNSS bands. With a compact black design and an MHF female connector, it is suitable for integration into devices that require a low-profile external antenna and straightforward connection.

Suitable for

• GNSS receivers and modules requiring external antenna input
• Embedded systems and IoT devices with MHF female connector compatibility
• Applications needing multi-constellation satellite reception (BEIDOU, GALILEO, GLONASS, GPS)

Key specifications

• Antenna gain level (max): 2 dBi
• Frequency bands: 1.575 GHz, 1.602 GHz, 1.176 GHz, 1.227 GHz
• Connector type: MHF (female)
• Colour: Black
• Brand: DELOCK, MPN: 12710, EAN: 4043619127108

How to use

Connect the DeLOCK 12710 antenna to the GNSS device using the MHF female connector, ensuring the connector matches the device port. Position the antenna to have a clear view of the sky for optimal satellite reception. Verify device settings to enable external antenna input if required by the receiver.

Recommendations

For best performance, mount the antenna where it has minimal obstructions and away from strong RF noise sources. Check the device manual for antenna placement guidance and ensure the MHF connector is properly seated to avoid signal loss.
