Antena omnidirecional DeLOCK 12583

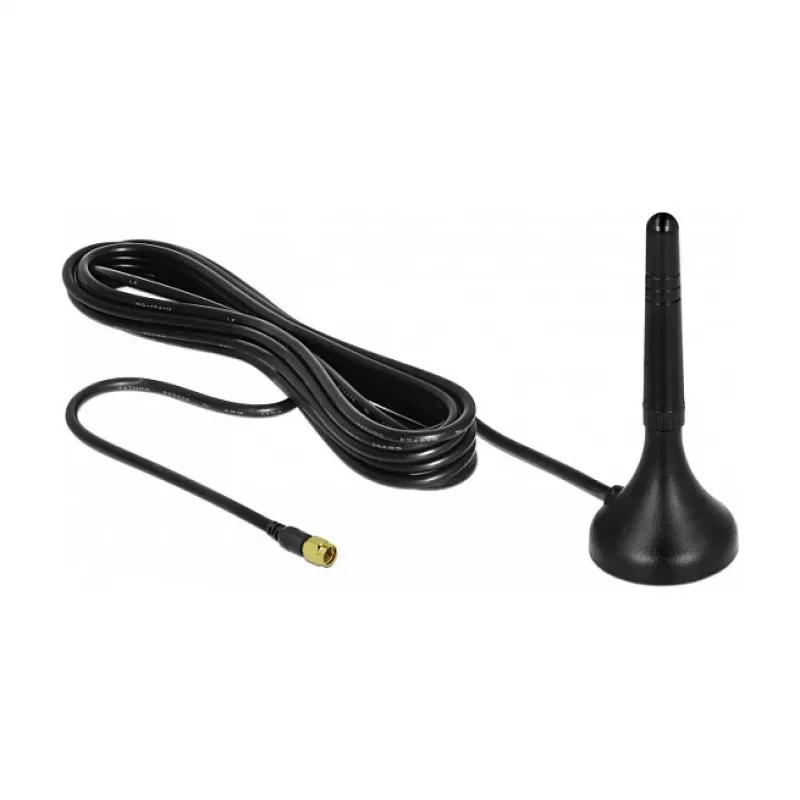

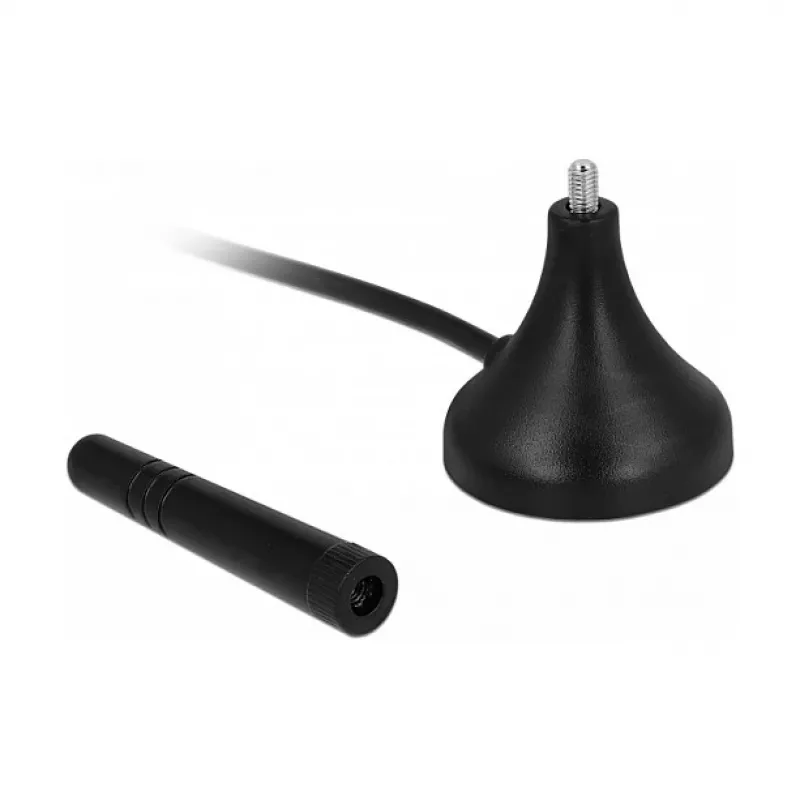

The DeLOCK 12583 is an omni-directional antenna designed for indoor and outdoor use that supports multiple LTE frequency bands. With a compact form factor (72 mm height, 2.9 cm diameter) and a 50 Ω SMA male connector, it provides a simple solution to improve wireless signal reception across the specified frequency ranges.

Advantages

The antenna offers a broad multiband coverage (0.698–0.96 GHz, 1.71–2.17 GHz and 2.5–2.7 GHz) with a nominal gain of 2 dBi, a 50 Ω impedance for compatibility with standard radio equipment, and a compact black design that is easy to mount both indoors and outdoors.

Suitable for

• Improving LTE and cellular signal reception for routers and modems
• Use with wireless data terminals and IoT gateways operating in the listed bands
• Indoor and outdoor installations where omni-directional coverage is required

Key specifications

• Model: DeLOCK 12583
• Frequency bands: 0.698–0.96 / 1.71–2.17 / 2.5–2.7 GHz
• Maximum gain: 2 dBi
• Impedance: 50 Ω
• Connector: SMA male
• Dimensions: height 72 mm, diameter 29 mm
• Colour: Black
• EAN: 4043619125838

How to use

Attach the SMA male connector to the compatible SMA female port on your router, modem or radio device. Position the antenna vertically in a location that maximises line-of-sight to surrounding base stations or signal sources. For outdoor mounting, use appropriate fixtures and weatherproofing; ensure the connector and any cabling are protected from moisture.

Recommendations

The antenna is omni-directional, so placing it centrally and at an elevated position typically yields more uniform coverage. If reception is weak, try small adjustments in height and orientation or relocate the antenna closer to a window or an outdoor area with fewer obstructions.
