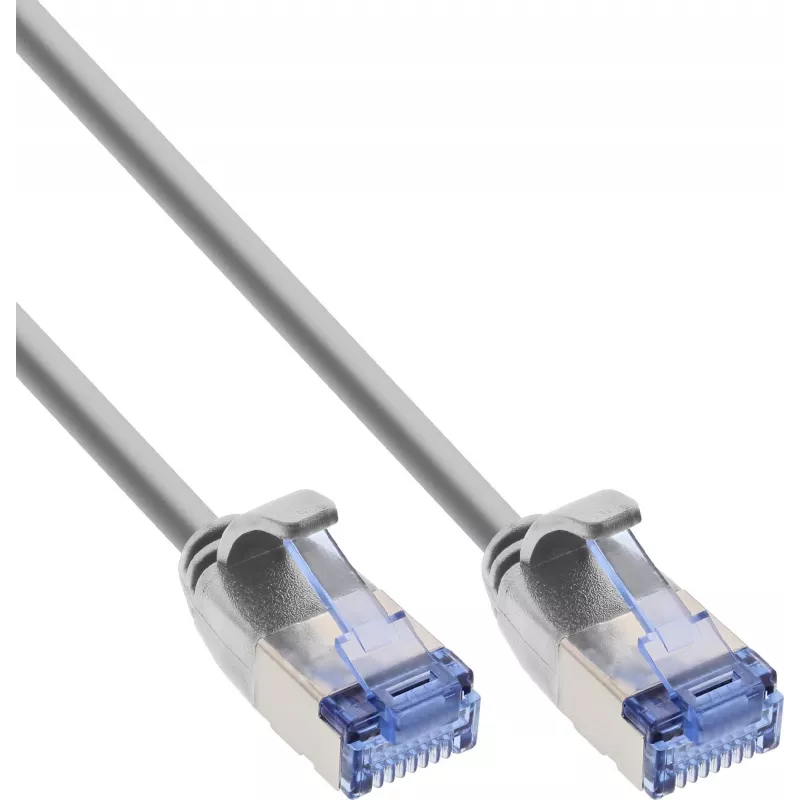

InLine Cabo patch Slim U/FTP PiMf Cat.6A, 10 m, cinzento (71900)

The InLine Slim Patch Cable U/FTP PiMf Cat.6A is a 10 m grey network cable designed for flexible RJ45 connections. With an outer diameter of just 4 mm, it is ideal for space-saving installation in cable ducts and congested areas.

Key features

• Slim Cat.6A network cable for flexible RJ45 connections
• Space-saving installation with 4 mm outer diameter
• U/FTP shielding: each twisted pair separately shielded with metal foil
• Supports reliable Cat.6A data transmission up to 500 MHz
• Extra-thin PVC sheath for flexible routing
• Two moulded RJ45 connectors with latch protection
• Four twisted pairs of solid copper strands
• 1:1 pinout in accordance with EIA/TIA-568B
• Gold-plated contact pins
• Nickel-plated metal shielding on the connectors

Specifications

• Brand: InLine
• MPN: 71900
• Product colour: Grey
• Type: Cat.6A
• Length: 10 m
• Shielding: U/FTP
• Outer diameter: 4.0 mm
• Conductor configuration: 4x2x32 AWG/7
• Conductor material: CU (copper)
• Connector type: 2x shielded RJ45 connectors, 8P8C
• Side A: RJ45 plug straight
• Side B: RJ45 plug straight
• Design: Round cable slim
• Assignment: 1:1
• Data transmission rate: 10Gb/s
• Max. supported power: 15.4W
• PoE/PoE+/PoE++: No
• Sheath: PVC
• Operation temperature: -10 to +60°C
• Storage temperature: 0 to +50°C
• Country of origin: China
• EAN Barcode: 4043718351831
