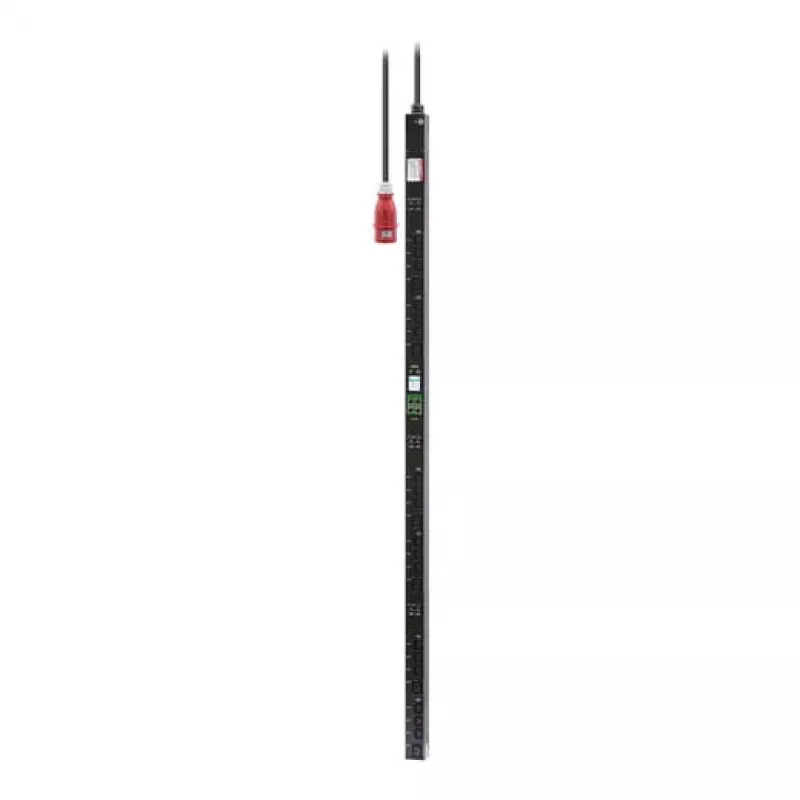

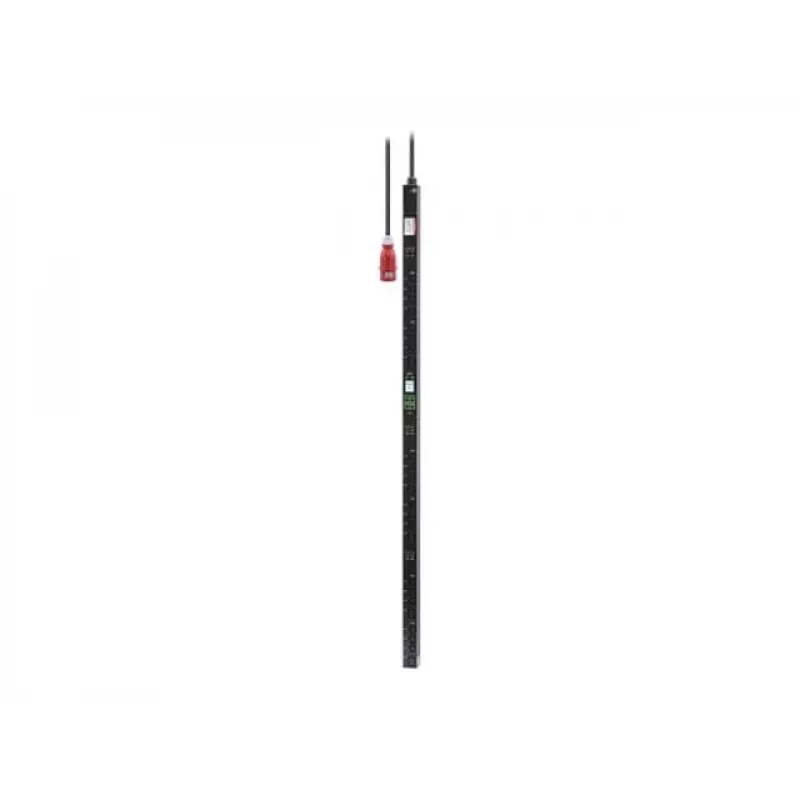

APC Easy Rack PDU EPDU2232SMBO - PDU comutada com medição por tomada, 32A, 230V, 24 tomadas, 0U vertical

The APC Easy Rack PDU EPDU2232SMBO is a metered-by-outlet switched power distribution unit designed for critical IT infrastructures. It provides advanced power monitoring and control at the individual outlet level, enabling remote management and energy optimization. With a 32A input, 230V output, and 24 outlets (20x C13, 4x C19), this 0U vertical PDU is ideal for data centers and server rooms requiring reliable power distribution and enhanced cybersecurity.

Advantages

This PDU offers outlet-level metering and switching, allowing users to turn off unused outlets to prevent overloads or remotely reboot locked equipment. The integrated Network Management Card NMC3 provides improved cybersecurity with secured interfaces and updated password policies. It integrates seamlessly with EcoStruxure IT for centralized management via web, SNMP, or CLI. The ultra-light aluminum housing reduces weight by up to 50%, and the vertical mounting saves valuable rack space.

Suitable for

• Data centers requiring precise power monitoring and control
• Server rooms with critical IT equipment needing remote reboot capabilities
• Facilities aiming to improve energy efficiency and reduce downtime

Key specifications

• PDU Type: Metered-by-Outlet Switched PDU
• Mounting Type: 0U Vertical (Zero U)
• Input Voltage: 230V
• Input Current: 32A
• Input Connector: IEC 60309 32A 3P+N+PE
• Output Voltage: 230V
• Output Connectors: 20x IEC 60320 C13, 4x IEC 60320 C19
• Total Outlets: 24
• Output Capacity: 22 kW (three-phase)
• Measurement Accuracy: 1%
• Form Factor: Zero U
• Colour: Black
• Material: Aluminium
• Operating Temperature: -5°C to +50°C
• Operating Relative Humidity: 5% to 95%
• Certifications: CE, VDE, RoHS, REACH
• Warranty: 2 years

Recommendations

For optimal performance, ensure proper ventilation and do not exceed the rated load. Use with compatible APC accessories for enhanced monitoring. This PDU is designed for three-phase applications up to 22 kW and meets industry standards for accuracy and reliability.
