Armário de servidor DSIT 22U 19 polegadas com porta frontal perfurada 600x600x1200mm (DS6622PP)

This 22U server cabinet supports up to 800 kg of equipment, making it a robust choice for demanding IT environments. The perforated front door ensures optimal airflow for passive cooling.

Overview

The DSIT DS6622PP is a 19-inch server cabinet with 22 rack units, designed for floor standing installation. Its external dimensions are 600 mm width, 600 mm depth, and 1200 mm height. The cabinet is constructed from SPCC cold rolled steel and finished in black (RAL 9005).

What stands out

• High loading capacity of up to 800 kg
• Perforated front and rear doors for passive ventilation
• Lockable front door, rear door, and side panels for security
• Removable side panels for easy access during installation

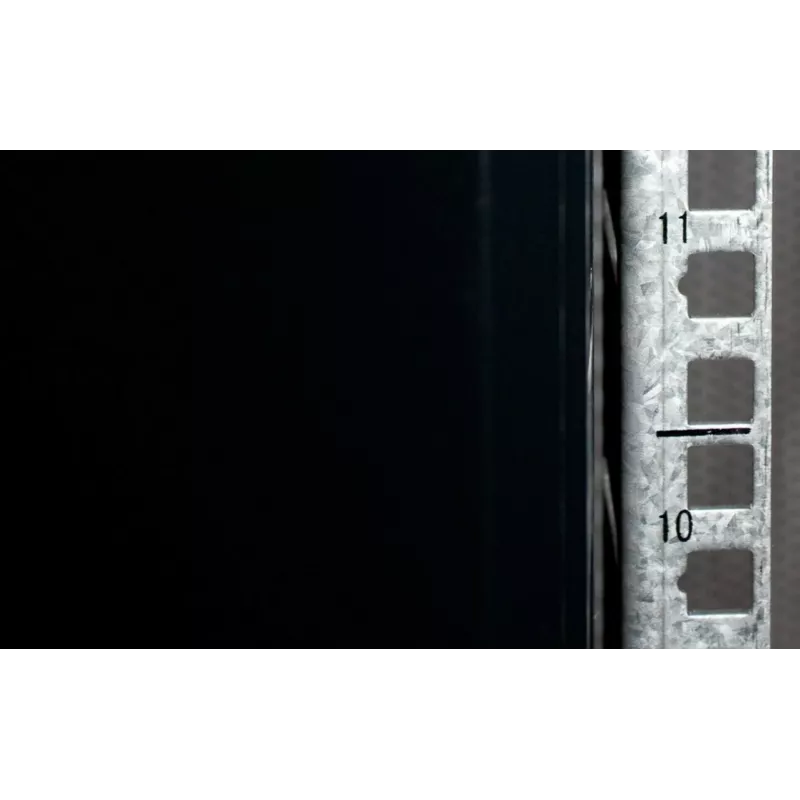

• Adjustable mounting rails front and rear
• Cable entry from top and bottom
• Includes castors and leveling feet for mobility and stability

Technical details

• Rack type: Server cabinet
• Rack units: 22U
• Rack standard: 19-inch
• External dimensions (WxDxH): 600 x 600 x 1200 mm
• Material: SPCC cold rolled steel
• Colour: Black (RAL 9005)
• Loading capacity: 800 kg
• IP protection class: IP20
• Mounting: Floor standing
• Cooling: Passive ventilation
• Included accessories: 4x castors, 4x leveling feet, 2x keys, mounting hardware

Our verdict

A sturdy and secure 22U cabinet with excellent load capacity and passive cooling, ideal for small to medium server rooms.
