Armário rack autónomo EFB Elektronik PRO-2486GR.G1SV 24U, carga máx. 1000 kg, fechadura com chave, IP20, cinzento

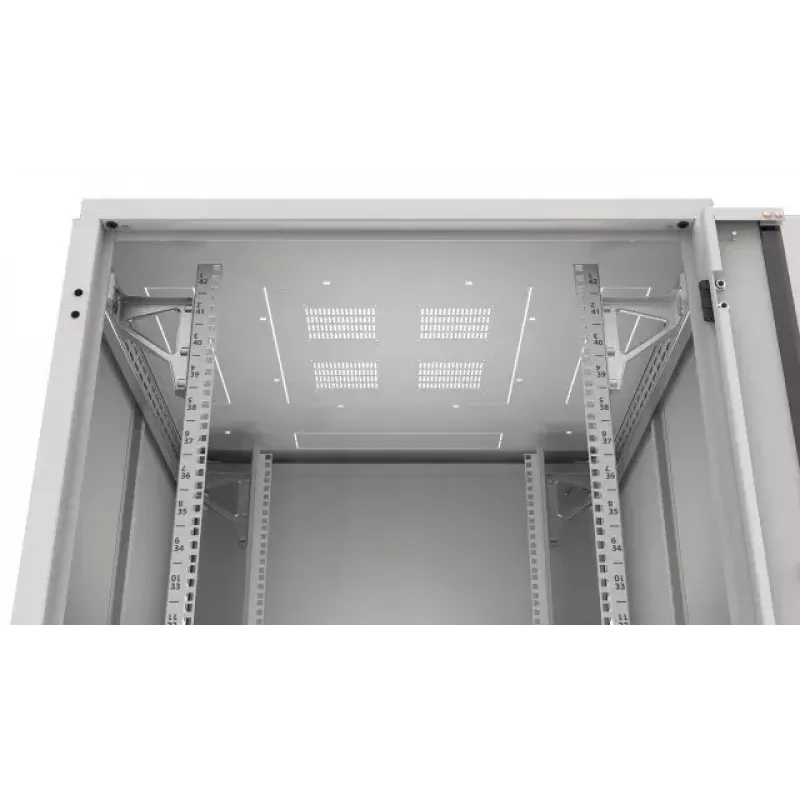

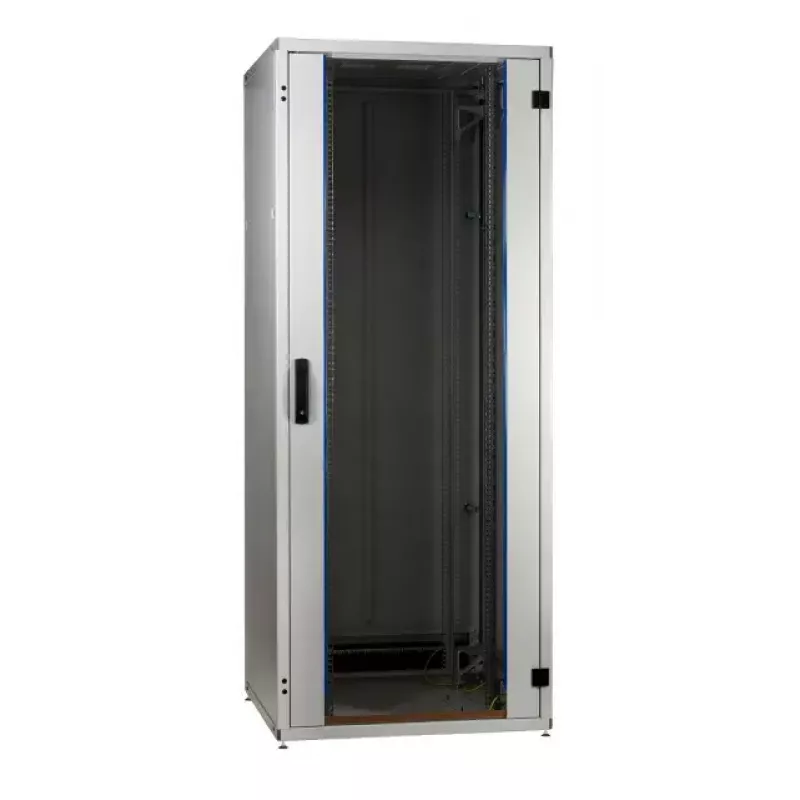

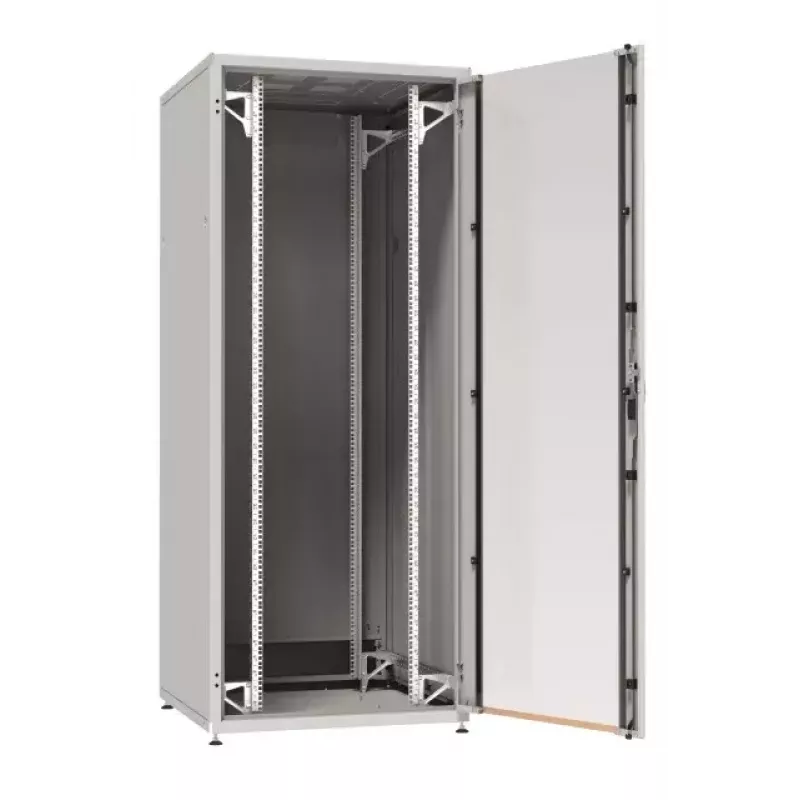

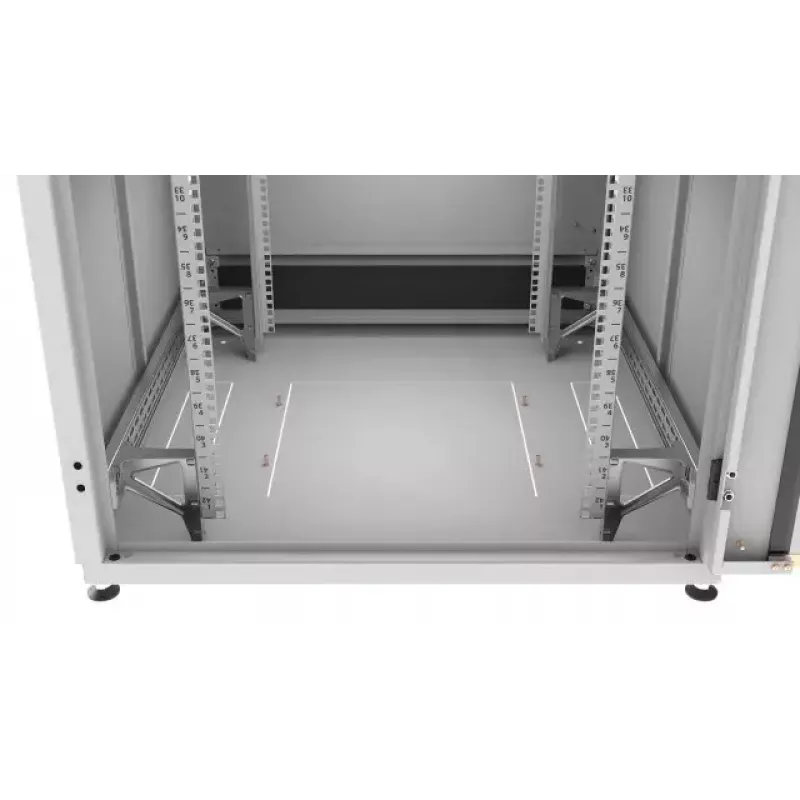

Freestanding rack cabinet EFB Elektronik PRO-2486GR.G1SV is a 19" network cabinet with 24U mounting height, designed for indoor network, server and telecom equipment. The steel-sheet housing with screwed frame is delivered completely pre-assembled and is self-ventilated and demountable. Inside are four galvanised 19" profiles (two front, two rear) with stepless depth adjustment and reversed rack-unit numbering. The front door has a 5 mm certified safety glass window and a lockable 3-point turning handle (for up to 24U a 1-point handle) including a profile half-cylinder conforming to DIN18252 / EN 1303; the half-cylinder is customer-exchangeable (30/10 mm). The rear door is a one-piece shortened steel door with two latch locks (key equal to front), and a 3U cable entry panel at the bottom (690 x 67 mm). Roof and bottom have pre-punched openings for cable entry and the roof is prepared to accommodate 2- or 4-fan units; the bottom includes a pre-punched opening for filters or cable-entry modules. All cabinet sections are internally earthed and a pre-assembled earthing bar is mounted rear-centre (ports: 2 x M5 + 2 x 8 mm). Paint finish RAL7035 (light grey), protection degree IP20. Delivery on disposable pallet in transport packaging.

Advantages

The cabinet provides a sturdy steel construction with stepless depth-adjustable galvanised 19" profiles, reversible rack-unit numbering for clear installation, and a lockable front door with safety-glass window for controlled access and device visibility. Pre-assembled earthing, multiple cable-entry openings and roof preparation for fans simplify installation and cooling planning. Included accessories such as captive nuts, levelling feet, earthing cables and keys allow immediate commissioning.

Suitable for

• Small to medium server rooms and data closets
• Network and telecom equipment mounting (switches, patch panels, routers)
• Indoor IT installations that require secure, lockable rack mounting
• Environments requiring cable management and prepared ventilation

Key specifications

• Model: EFB Elektronik PRO-2486GR.G1SV
• Mounting height: 24U (19")
• Maximum load: 1000 kg (for depths 600 / 800 mm)
• Protection class: IP20 (indoor use)
• Material: steel sheet housing with screwed frame
• Front door: safety glass 5 mm, lockable 3-point handle (1-point up to 24U)
• Profiles: 4 x galvanised 19" profiles, depth-adjustable
• Earthing: internal earthing of sections, pre-assembled earthing bar (2 x M5 + 2 x 8 mm)
• Finish: RAL7035, light grey
• Included accessories: brush, set of captive nuts (20 pcs), earthing bar and earthing cables, 4 levelling feet M12, 2 keys

How to use

Place the cabinet on a stable, level surface and secure the levelling feet to achieve correct alignment. Install equipment into the 19" profiles using the supplied captive nuts; adjust profile depth as needed for device fit. Route cables through the roof, bottom or rear cable-entry openings and use the 3U bottom panel for larger cable bundles. Connect the earthing bar to facility grounding using the supplied earthing cables. Fit fan units in the roof cutouts if active ventilation is required and install filters or cable-entry modules in the bottom pre-punched openings as needed.

Recommendations

For safe and reliable operation, distribute weight evenly across mounting levels and avoid exceeding the 1000 kg maximum load. Use the pre-punched openings and prepared fan locations to implement appropriate cable management and ventilation for heat-producing equipment. Ensure the cabinet is connected to a proper grounding point and keep the front and rear doors closed during normal operation to maintain physical security and airflow design.
