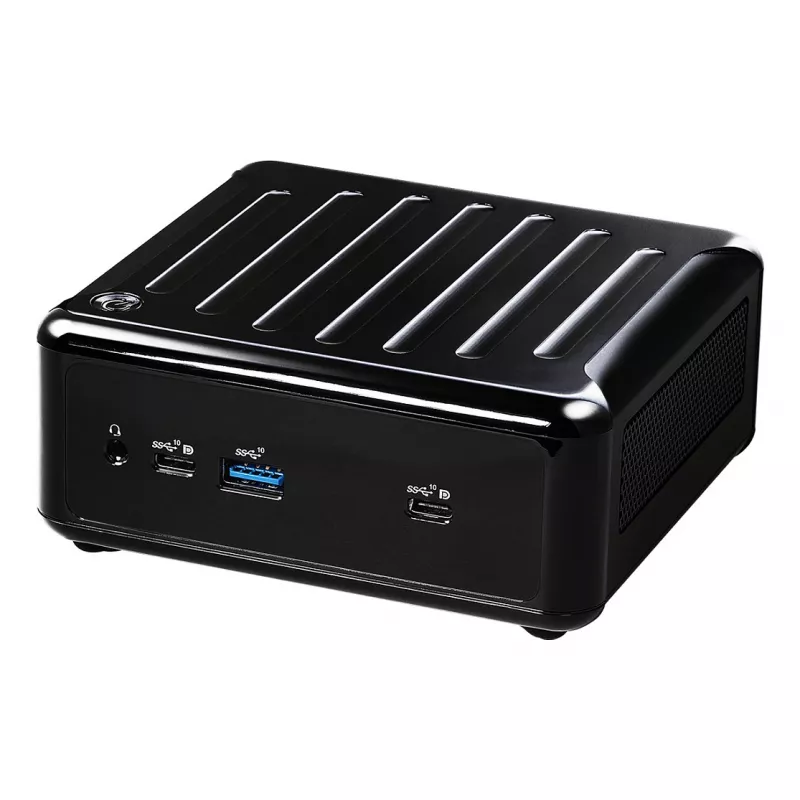

ASRock Industrial 4X4 BOX-4500U Barebone Embedded Box PC

Compact fanless computing reaches a new level of flexibility with the ASRock Industrial 4X4 BOX-4500U. While many mini PCs lock you into fixed configurations or throttle under sustained workloads, this barebone system puts you in full control—choose your own DDR4 memory, M.2 or 2.5" storage, and Wi-Fi module to tailor performance and budget precisely. Its aluminum chassis dissipates heat silently, making it ideal for digital signage, edge analytics, and always-on kiosks where reliability is non-negotiable.

Highlights

• AMD Ryzen 5 4500U with 6 cores and Radeon Vega 6 graphics
• Dual Gigabit LAN for failover or segmented networks
• Triple 4K display support via HDMI 2.0a and DisplayPort 1.2a
• Tool-free 2.5" SATA bay plus M.2 NVMe/SATA slot
• Fanless aluminum chassis with VESA mount included
• Firmware TPM 2.0 for Windows 11 readiness

In daily use

Mount it behind a monitor, under a counter, or on a VESA arm—the 4X4 BOX-4500U stays silent and cool even in dusty environments thanks to passive cooling. Front USB-C and USB-A ports handle fast peripherals, while the rear USB-C supports DisplayPort alt mode for single-cable docking. Two Realtek Gigabit LAN ports let you isolate camera traffic from management traffic or run a software router without extra hardware. With two DDR4 SO-DIMM slots supporting up to 64GB, an M.2 Key M slot for NVMe or SATA SSDs, and a 2.5" SATA bay, expansion is straightforward and tool-free.

Full specifications

• Processor: AMD Ryzen 5 4500U (6C/6T, 2.3–4.0 GHz)
• Graphics: Integrated AMD Radeon Graphics (Vega 6, up to 1500 MHz)
• Memory: 2 x DDR4 SO-DIMM slots, max 64GB DDR4-3200 (non-ECC)
• Storage: 1 x M.2 Key M (2242/2260/2280) PCIe Gen3 x4 or SATA; 1 x SATA 6Gb/s for 2.5" drive
• Networking: 2 x Realtek RTL8111G Gigabit LAN; 1 x M.2 Key E for Wi-Fi/BT module (not included)

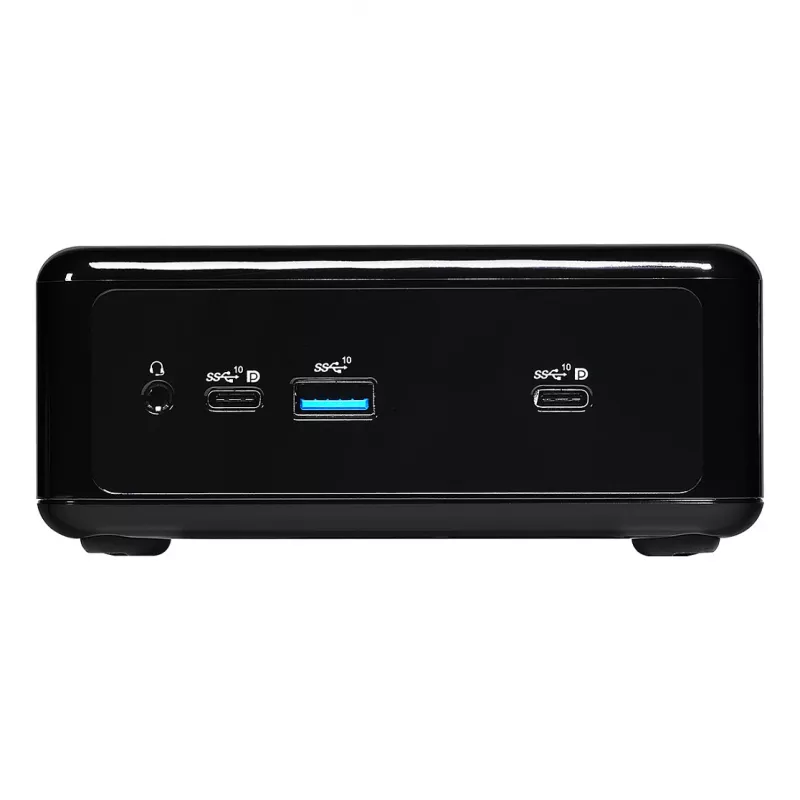

• Front ports: 1 x USB 3.2 Gen2 Type-C, 1 x USB 3.2 Gen2 Type-A, 1 x USB 2.0 Type-A, audio combo jack

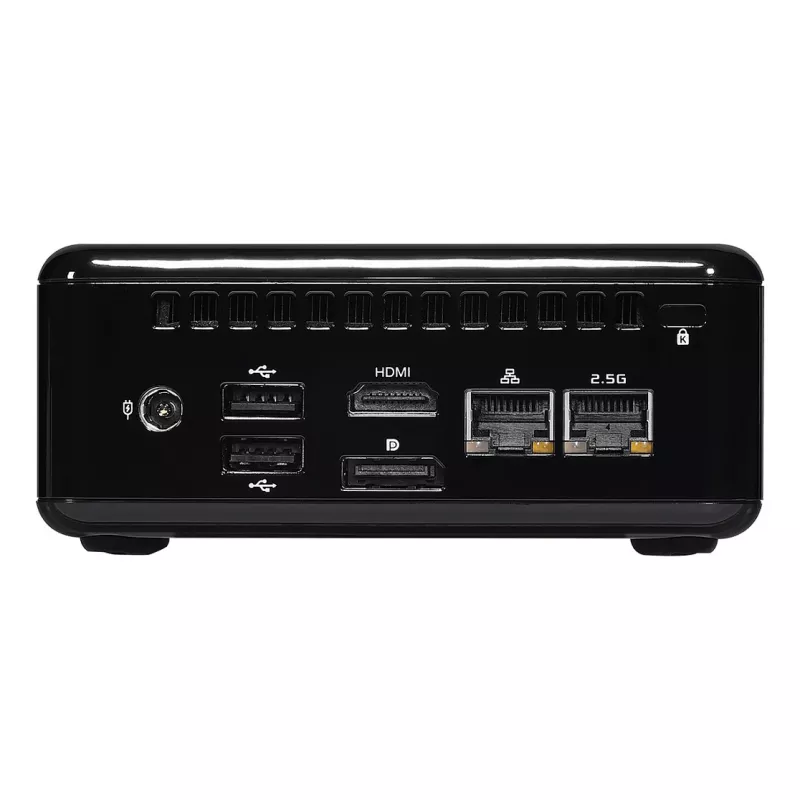

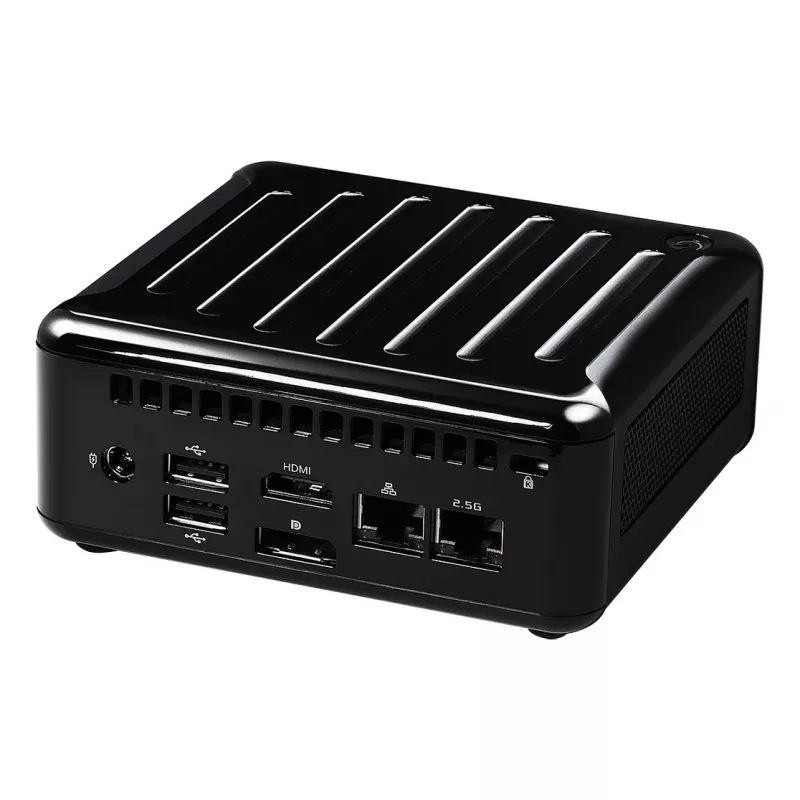

• Rear ports: 1 x USB 3.2 Gen2 Type-C (DP alt mode), 1 x USB 3.2 Gen2 Type-A, 2 x HDMI 2.0a, 1 x DP 1.2a, 2 x RJ-45
• Power: 19V/90W AC adapter
• OS support: Windows 10 (64-bit), Linux (64-bit)
• Security: Firmware TPM 2.0

Final note

The ASRock Industrial 4X4 BOX-4500U delivers silent, reliable performance for edge computing and digital signage, with the flexibility to configure exactly the memory, storage, and wireless you need.
